Emissions - MIL ON/DTC P0456 Set
ENGINEEG012-07
Title:
M.I.L. "ON" DTC P0456
Models:
'07 Solara
April 6, 2007
Introduction
Some 2007 model year Solara vehicles may exhibit a M.I.L. "ON" condition with DTC P0456 (Evaporative Emissions Control System Leak Detected Very Small Leak).
Use the following repair procedure to diagnose and repair customer complaint vehicles.
Applicable Vehicles
^ 2007 model year Solara vehicles produced BEFORE the Production Change Effective VINs shown below.
Production Change Information

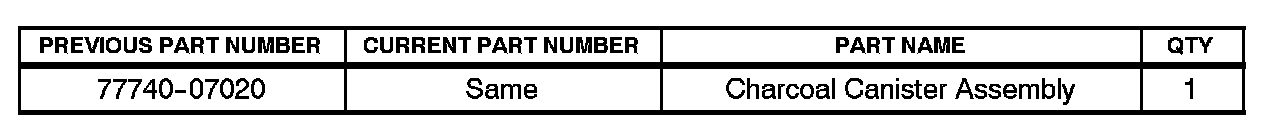

Parts Information
Warranty Information
Applicable Warranty*:
This repair is covered under the Toyota Federal Emissions Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date. For California specification vehicles sold, registered, and operated in California, Maine, Massachusetts, and Vermont, this repair is covered under the California Emission Warranty, which is 84 months or 70,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
Required SSTs
Repair Procedure
1. Using the Diagnostic Tester, clear the stored DTCs.
2. Using the Diagnostic Tester, perform the Automatic EVAP System Check to confirm DTC P0456 is pending and the small leak is still present. If YES, go to step 3.
Refer to the Technical Information System (TIS), 2007 model year Solara Repair Manual:
^ Engine/Hybrid System - Engine Control - "2AZ-FE Engine Control System: SFI System: EVAP System"
^ Engine/Hybrid System - Engine Control - "3MZ-FE Engine Control System: SFI System: EVAP System"
NOTE:
If the Automatic EVAP System Check fails to run, perform the following:
^ Turn the ignition key OFF.
^ Turn the Diagnostic Tester OFF.
^ Turn the ignition key ON and the Diagnostic Tester ON, and restart the Automatic EVAP System Check.
If NO codes appear in pending, the problem is intermittent and this TSB does NOT apply.
3. Disconnect the fuel tank vent hose (between the fuel tank and the canister) from the charcoal canister.
Refer to TIS, 2007 model year Solara Repair Manual:
^ Engine/Hybrid System - Emission Control - "2AZ-FE Emission Control: Canister: Removal"
^ Engine/Hybrid System - Emission Control - "3MZ-FE Emission Control: Canister: Removal"
4. Using the Diagnostic Tester, clear the stored DTCs.
5. Seal off the fuel tank vent hose and purge VSV connections at the canister to isolate the canister side.
6. Rerun the Automatic EVAP System Check.
7. If DTC P0456 appears in pending again, remove and replace the charcoal canister assembly.
If there are NO pending codes present, the small leak is located on the fuel tank side of the EVAP system and this TSB does NOT apply. Refer to the Repair Manual for diagnostic information.
8. After the repair is complete, perform the Automatic EVAP System Check again to confirm there are NO pending DTCs and the system is normal.
