Garage Door Opener Transmitter: Description and Operation

GARAGE DOOR OPENER: GARAGE DOOR OPENER SYSTEM: SYSTEM DIAGRAM

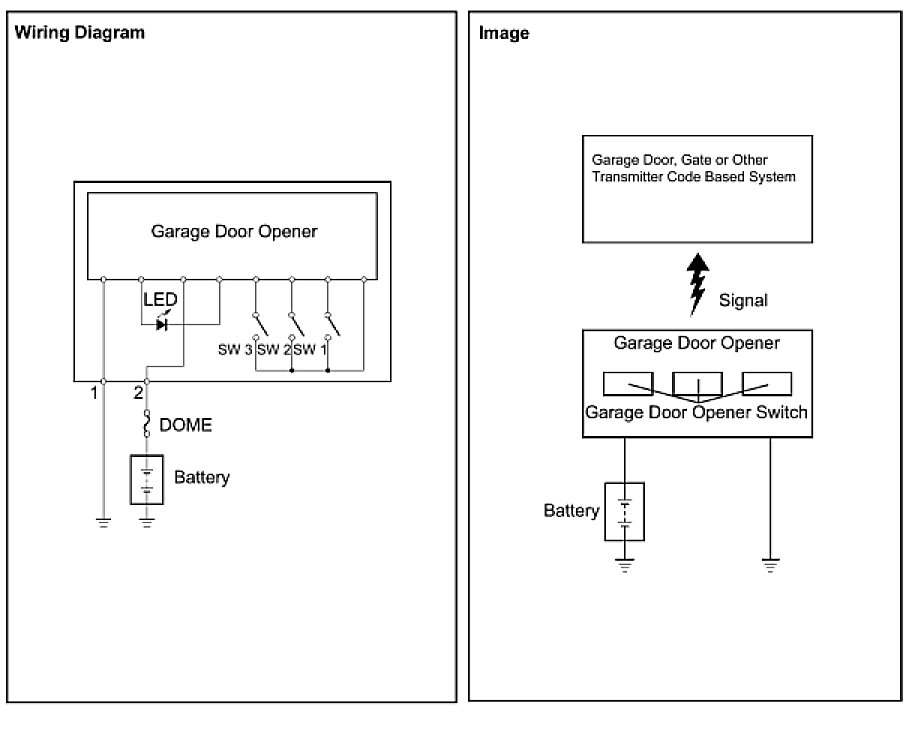

SYSTEM DIAGRAM





1. DESCRIPTION
A maximum of 3 kinds of transmitter code based systems like garage doors, gates and entry gates can be registered with the vehicle's garage door opener that can activate the transmitter systems, and the original transmitters of each transmitter code based system are not needed.
