Torque Specifications

SERVICE SPECIFICATIONS: EXTERIOR:

TORQUE SPECIFICATIONS

HOOD:

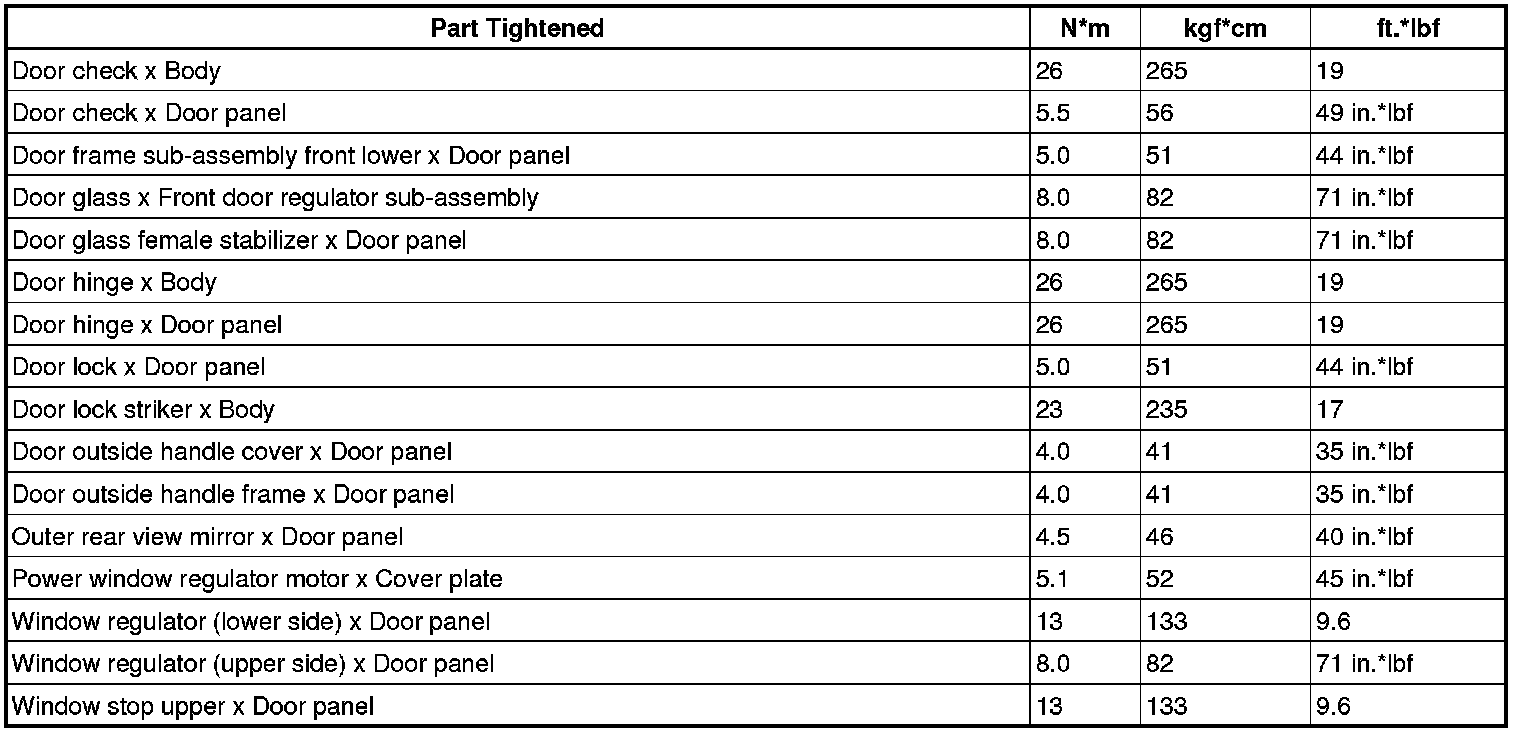

FRONT DOOR:

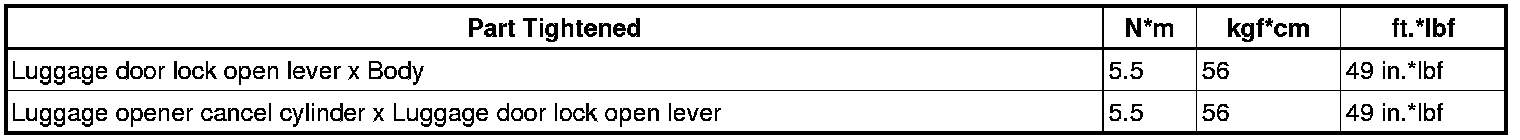

LUGGAGE COMPARTMENT DOOR:

FRONT BUMPER:

REAR BUMPER:

HOOD MOULDING ASSEMBLY FRONT:

FUEL LID LOCK CONTROL ASSEMBLY:
