Pinout Values and Diagnostic Parameters








CRUISE CONTROL SYSTEM:

TERMINALS OF ECM

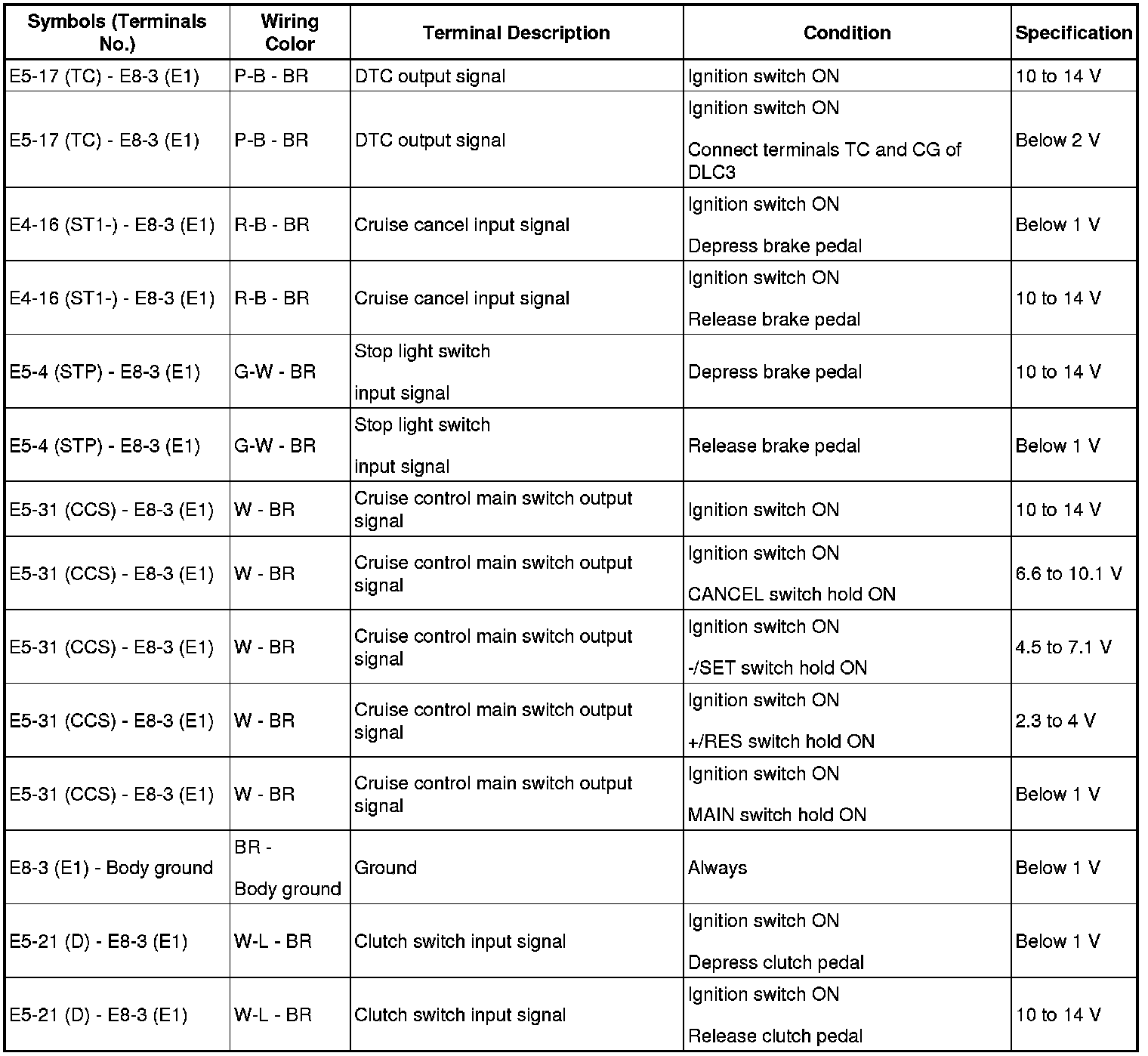

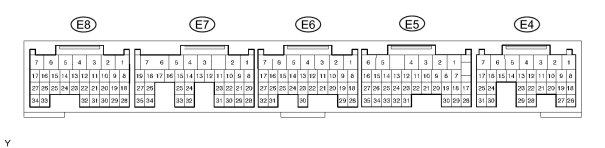

1. 2AZ-FE

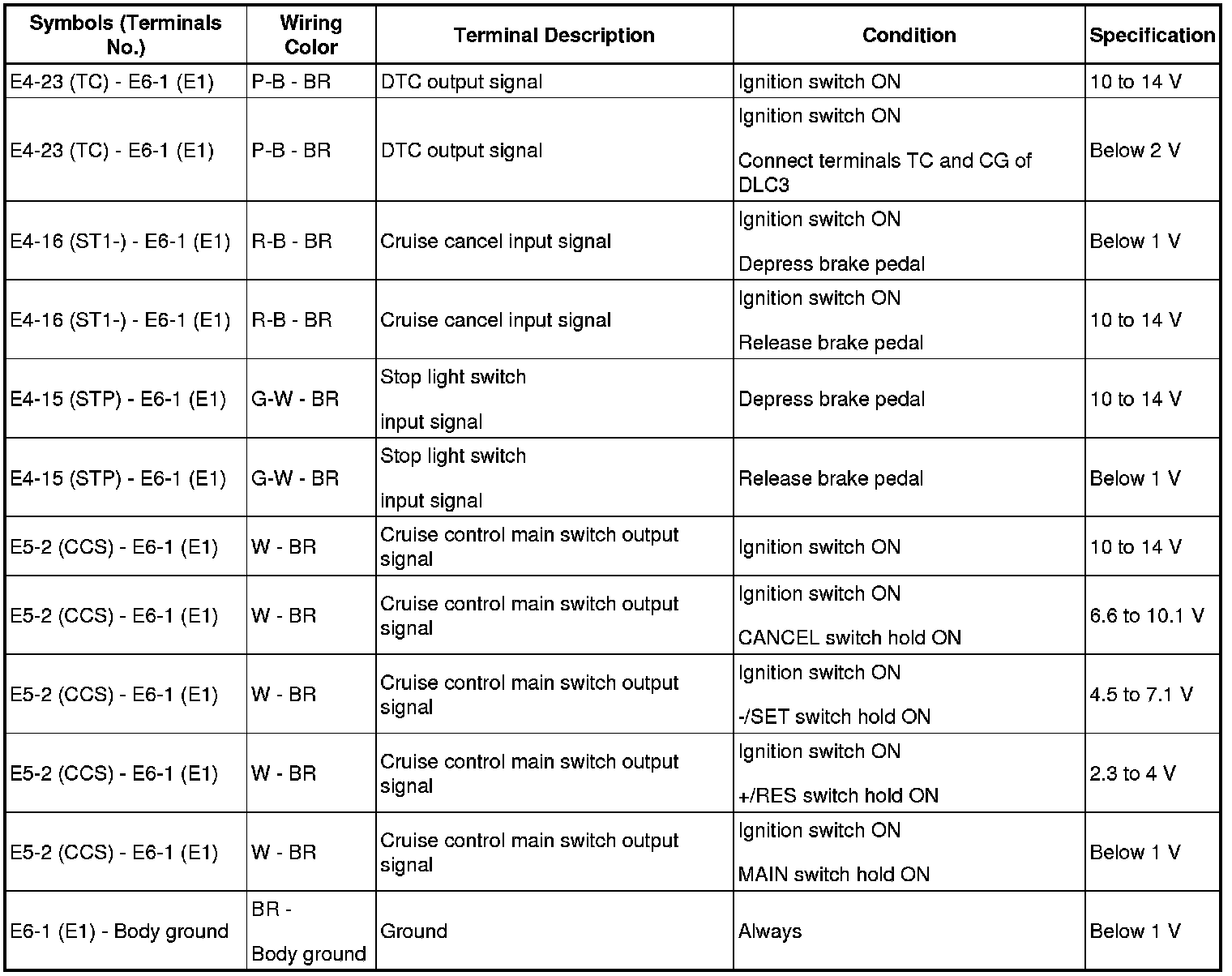

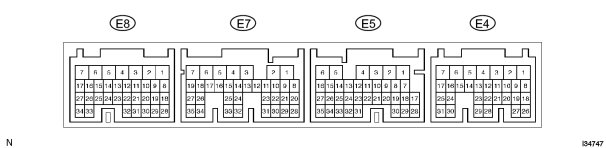

2. 3MZ-FE
