Position of Parts In Engine Compartment
Position of Parts In Engine Compartment

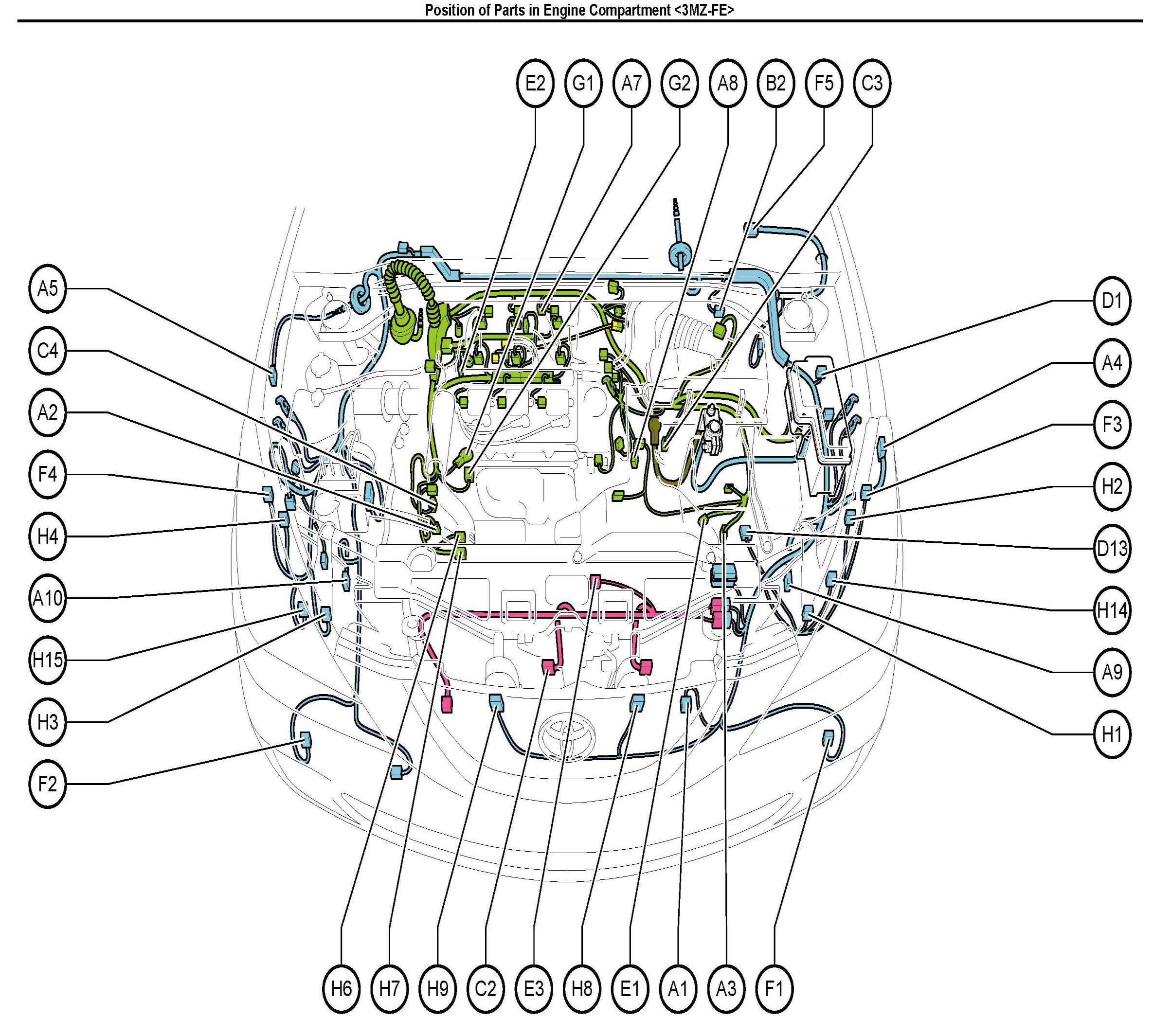

Position Of Parts In Engine Compartment:
Legend:

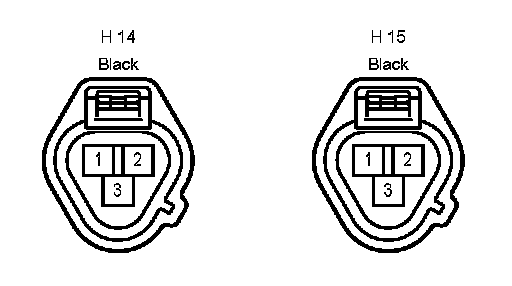

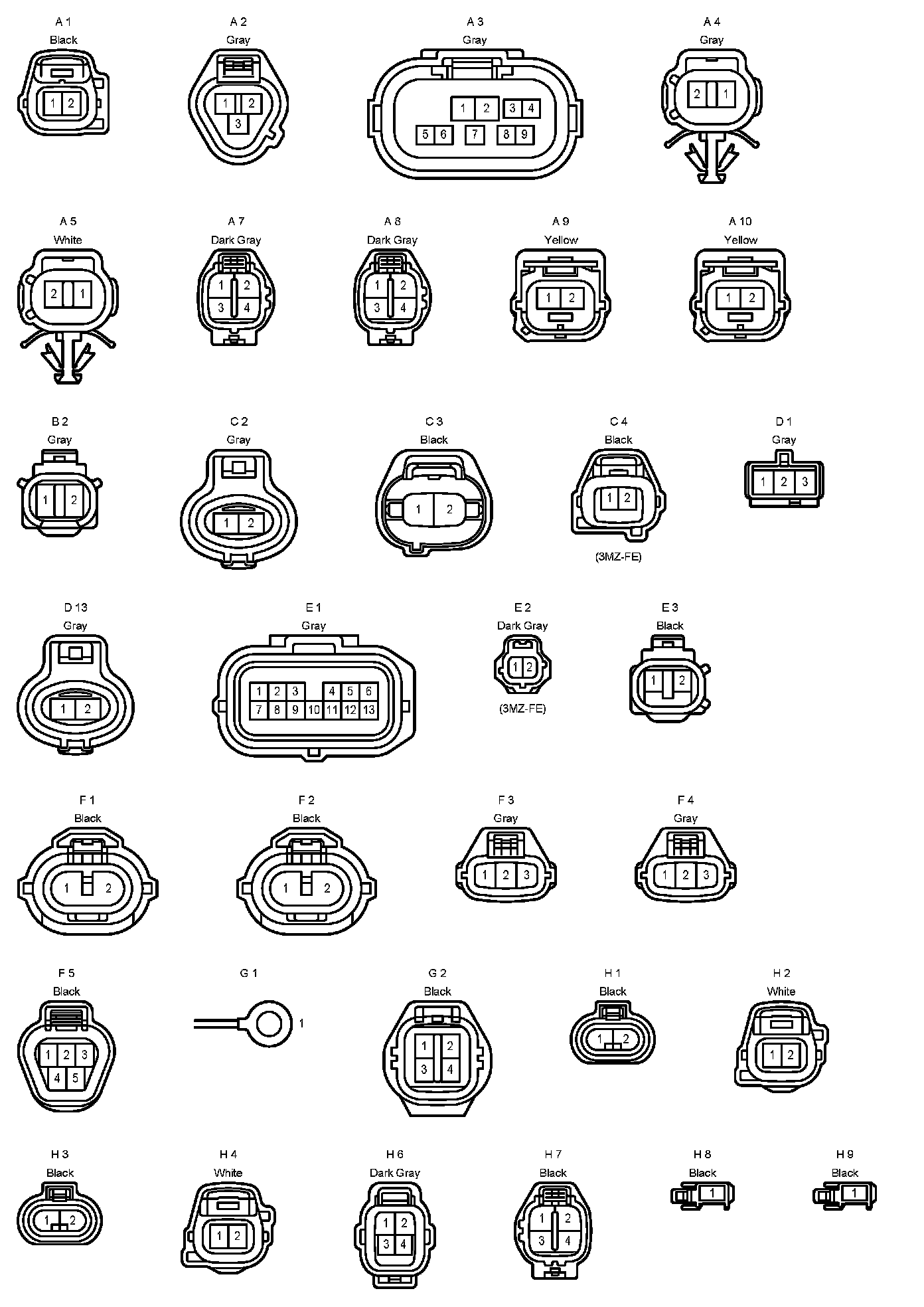

Connector Views:
Connector Views:

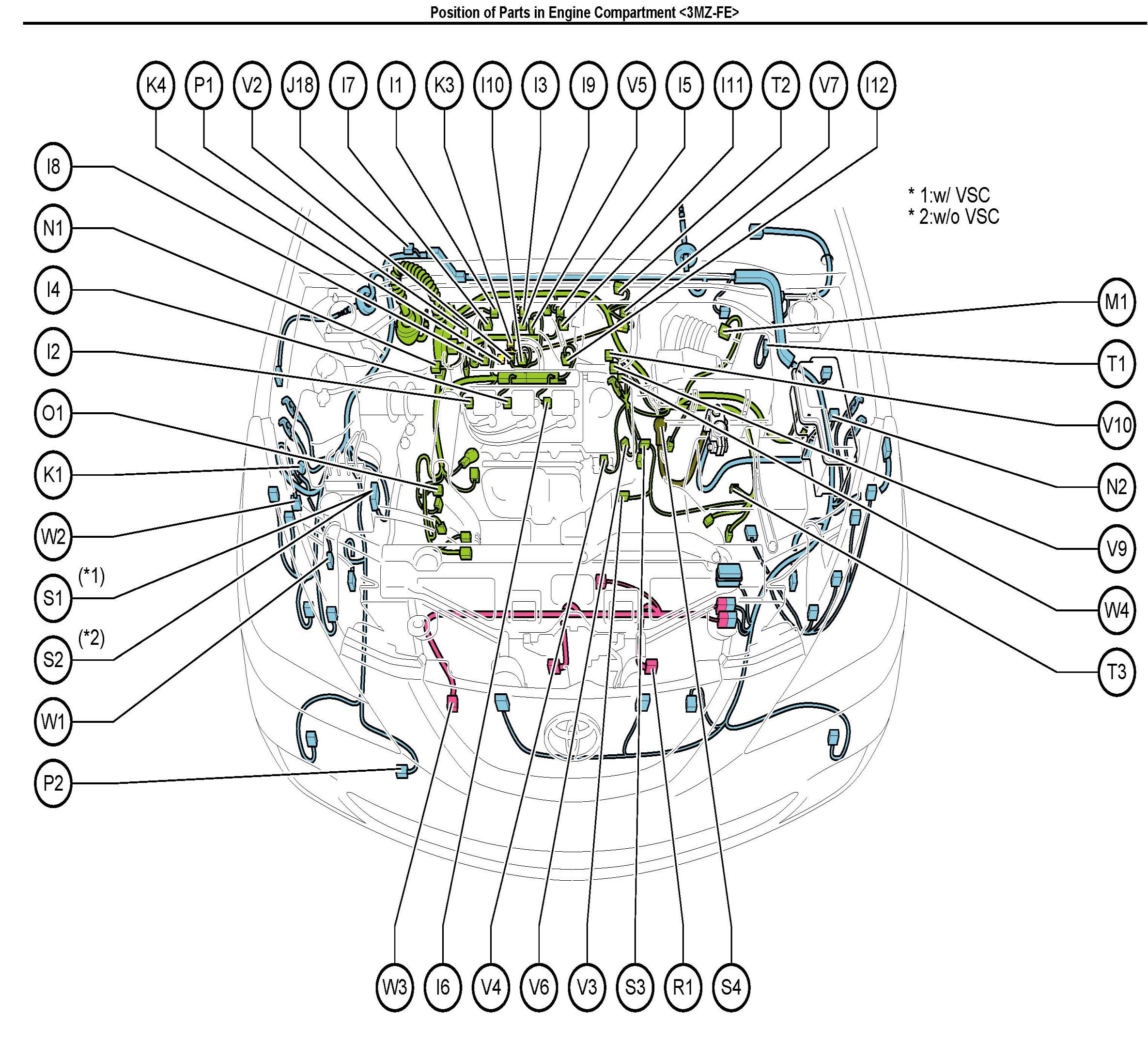

Position Of Parts In Engine Compartment:
Legend:

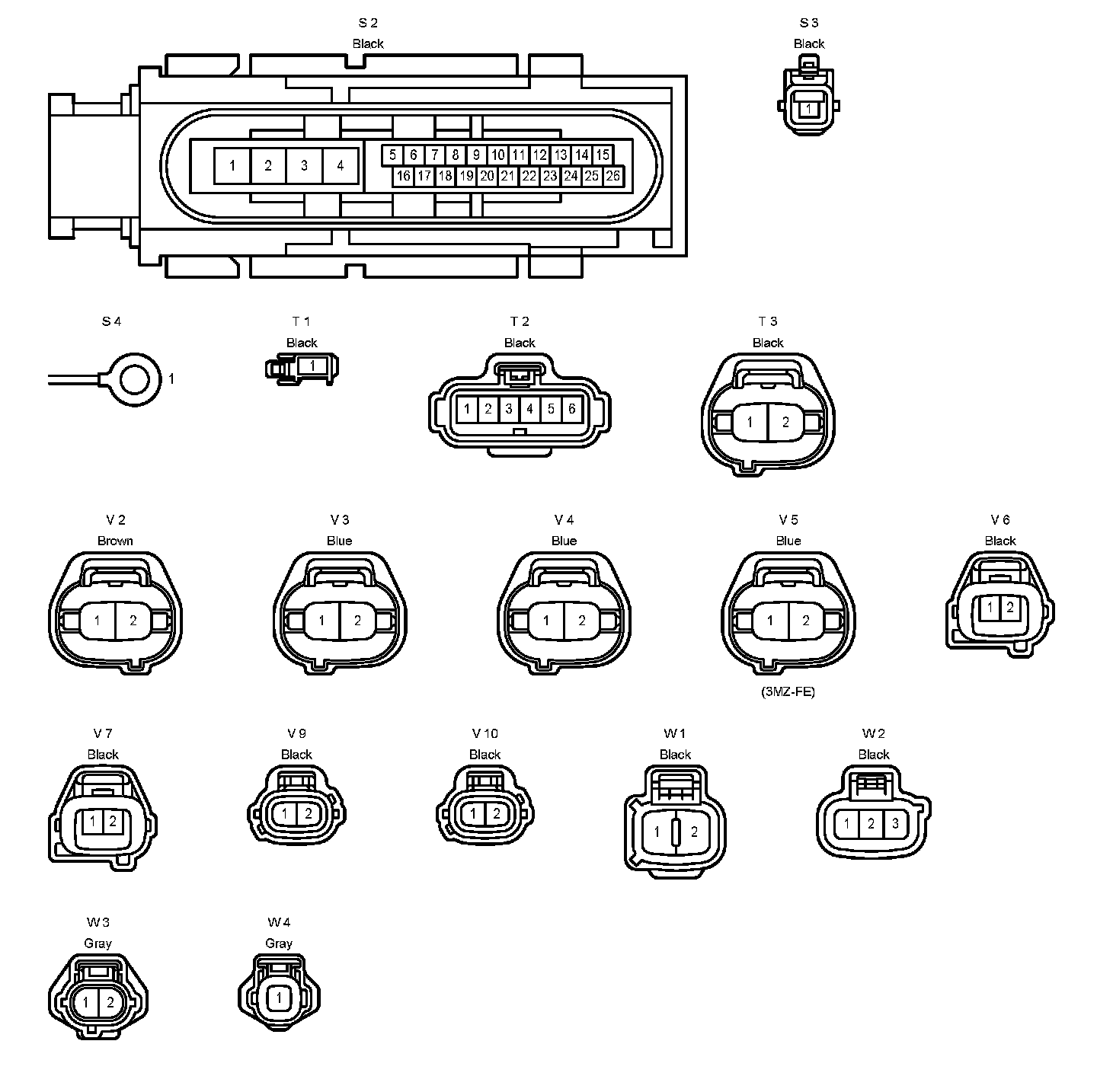

Connector Views:
Connector Views:
