Position of Parts In Seat
Position of Parts In Seat
Position Of Parts In Seat:

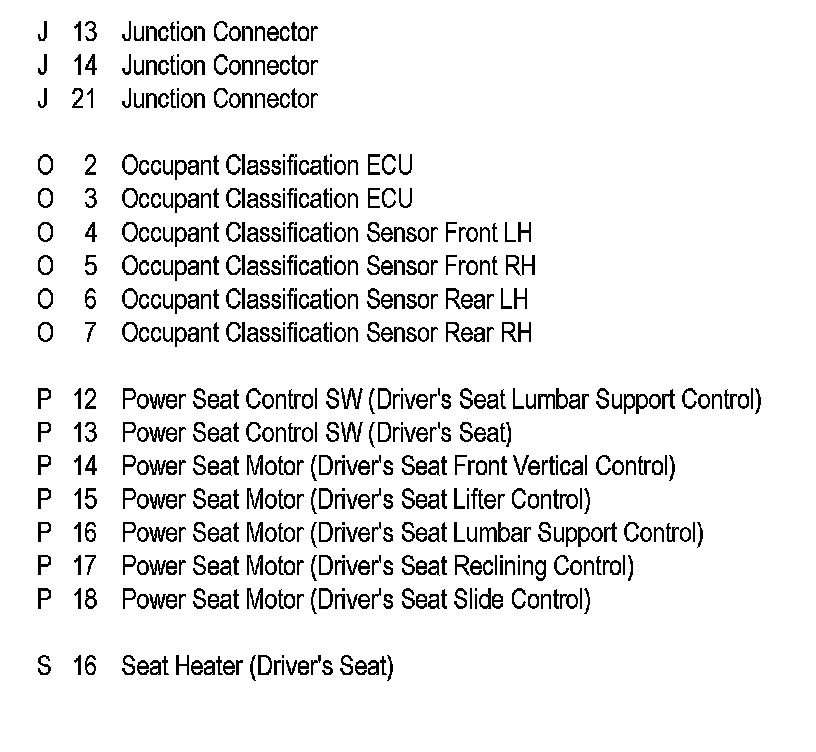

Legend:

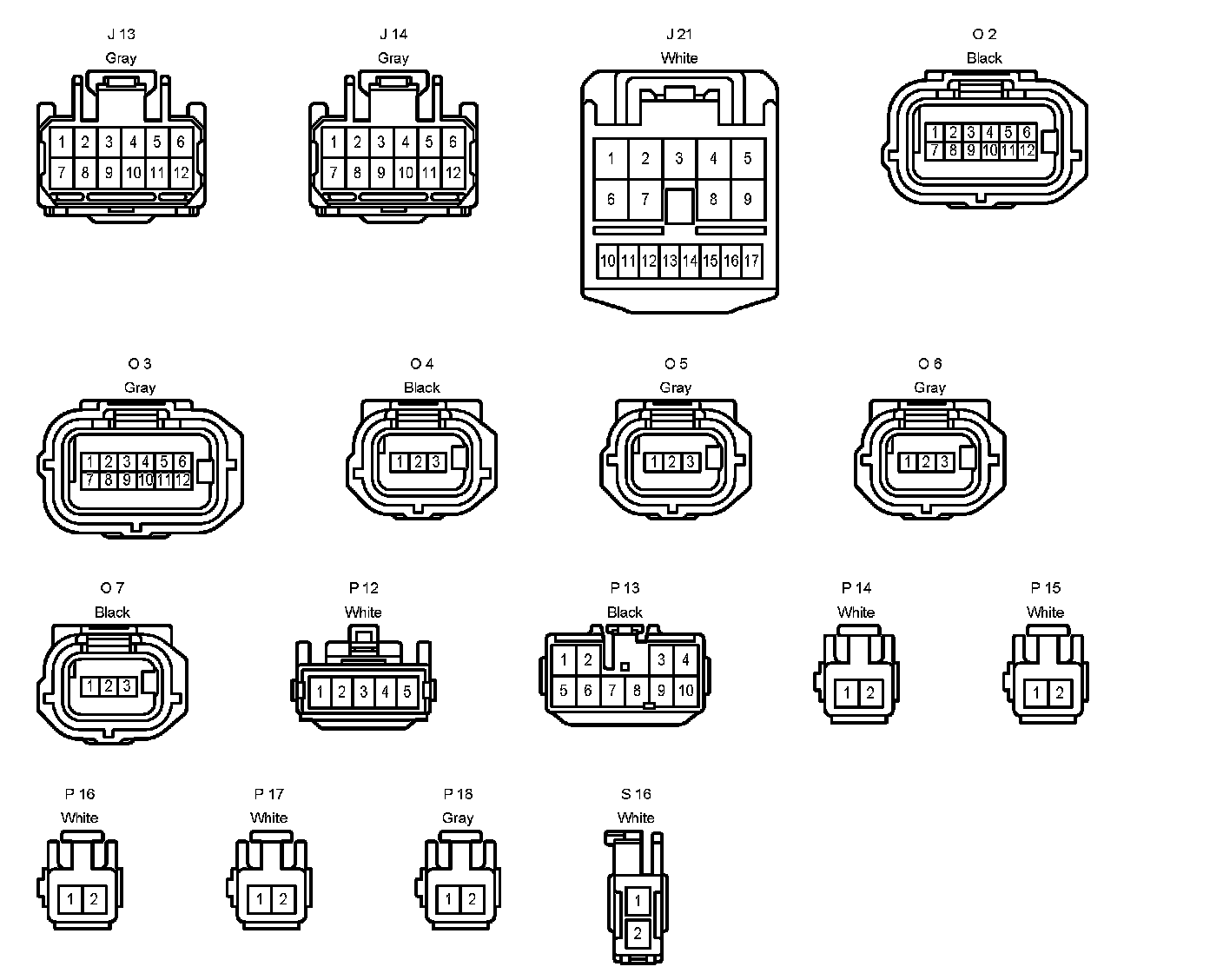

Connector Views:
