1A (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left))

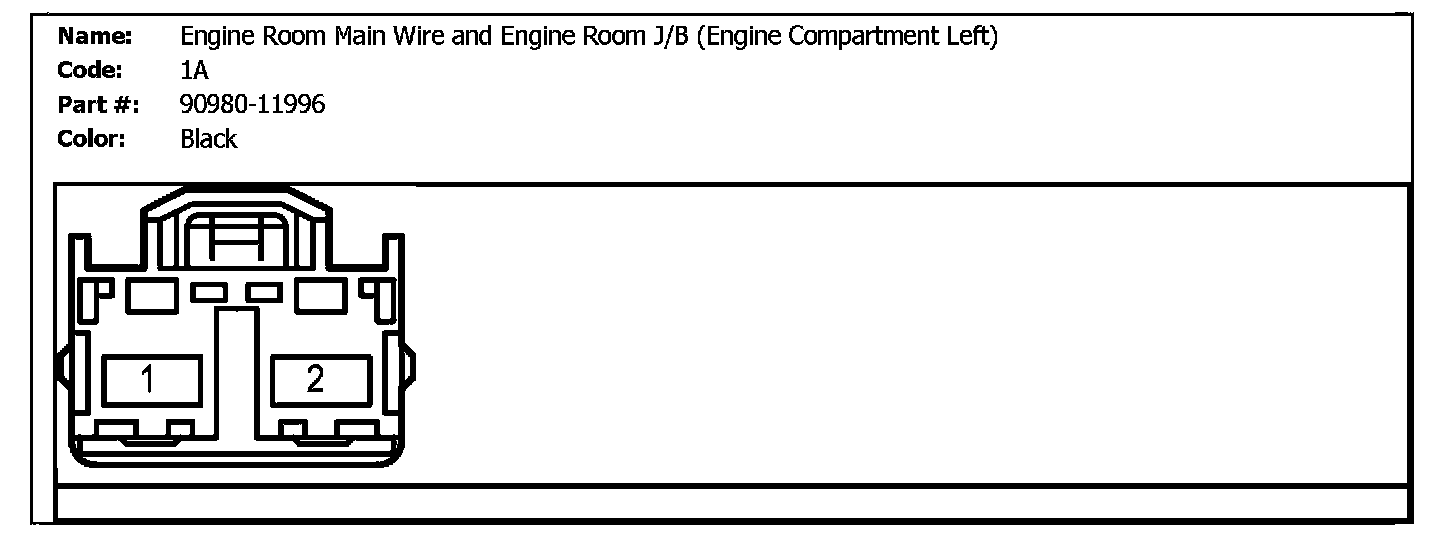

1A (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

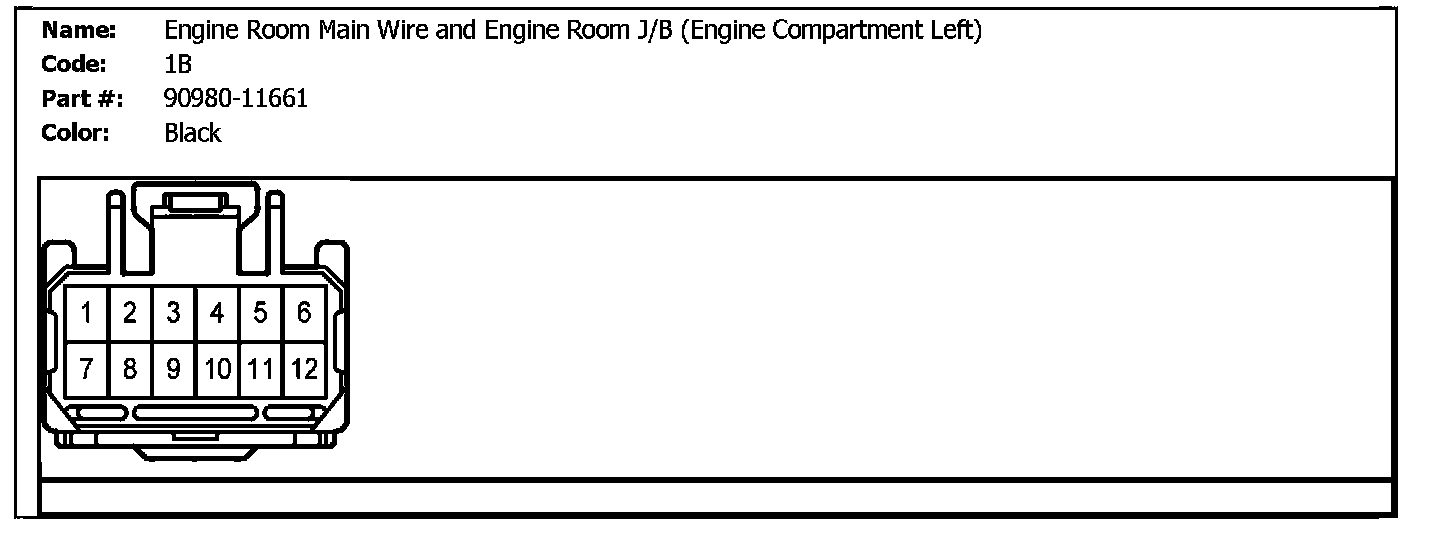

1B (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

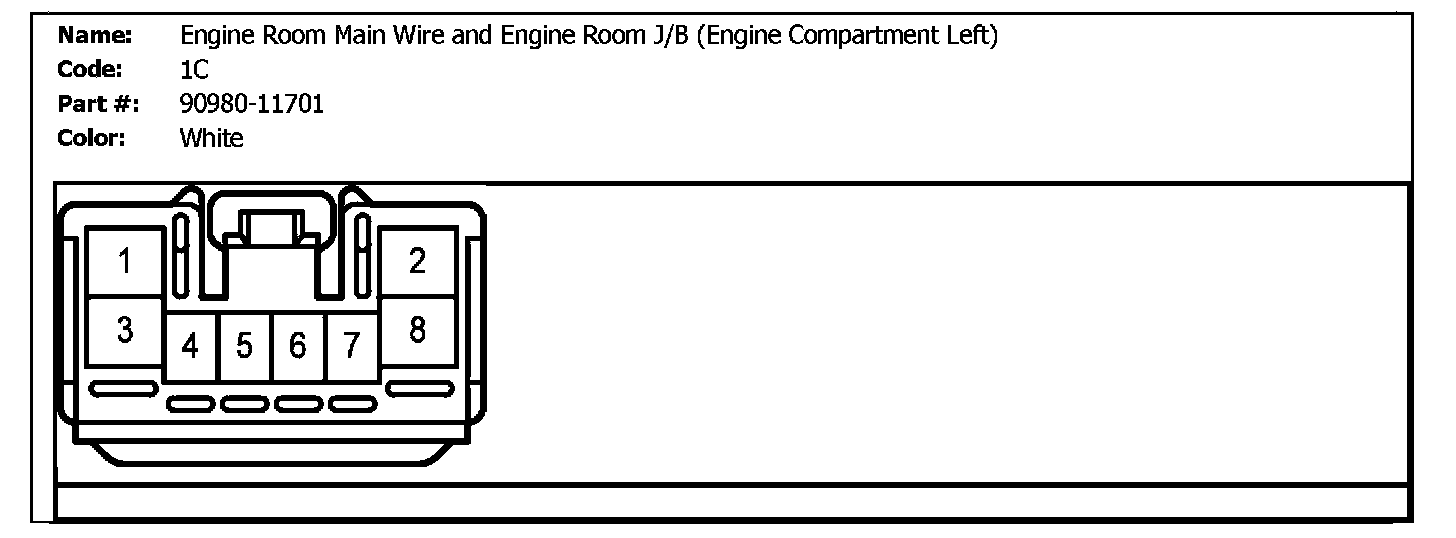

1C (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

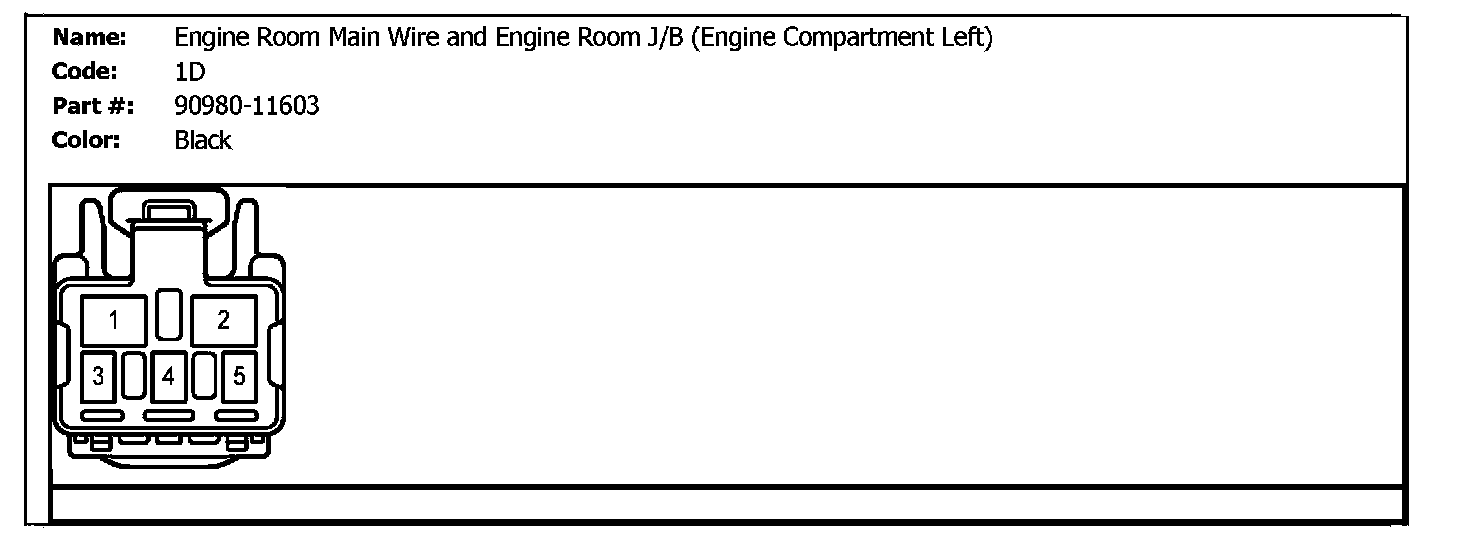

1D (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

1E (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

1F (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

1G (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

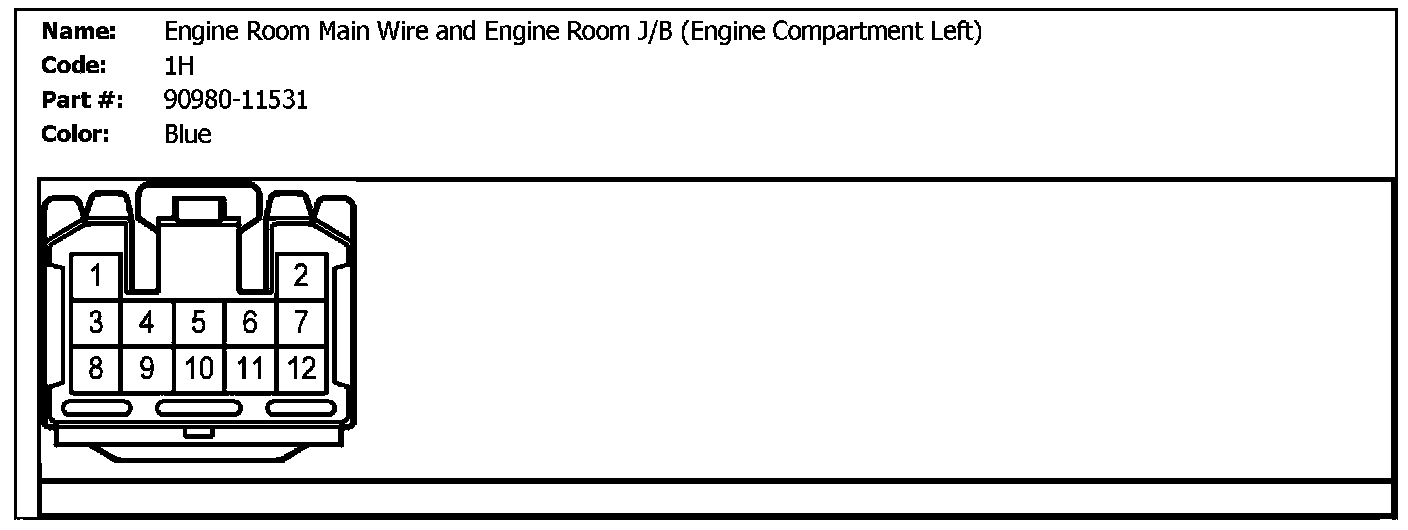

1H (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

1J (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

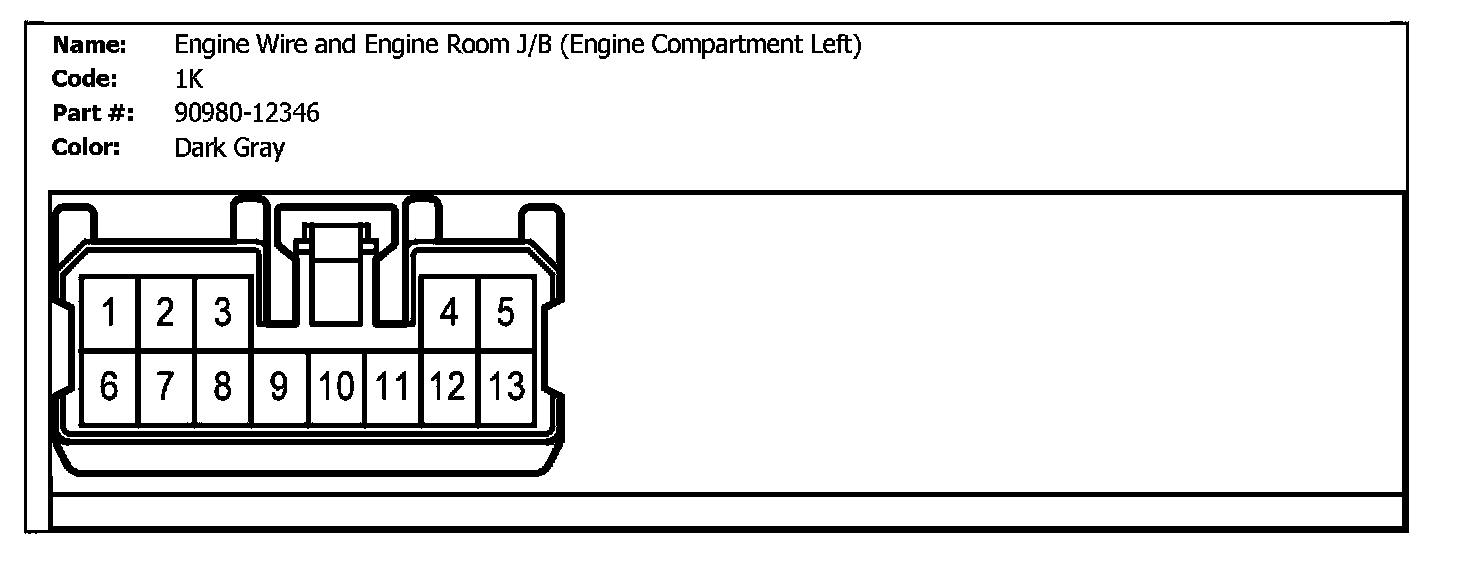

1K (Engine Wire And Engine Room J/B (Engine Compartment Left)):

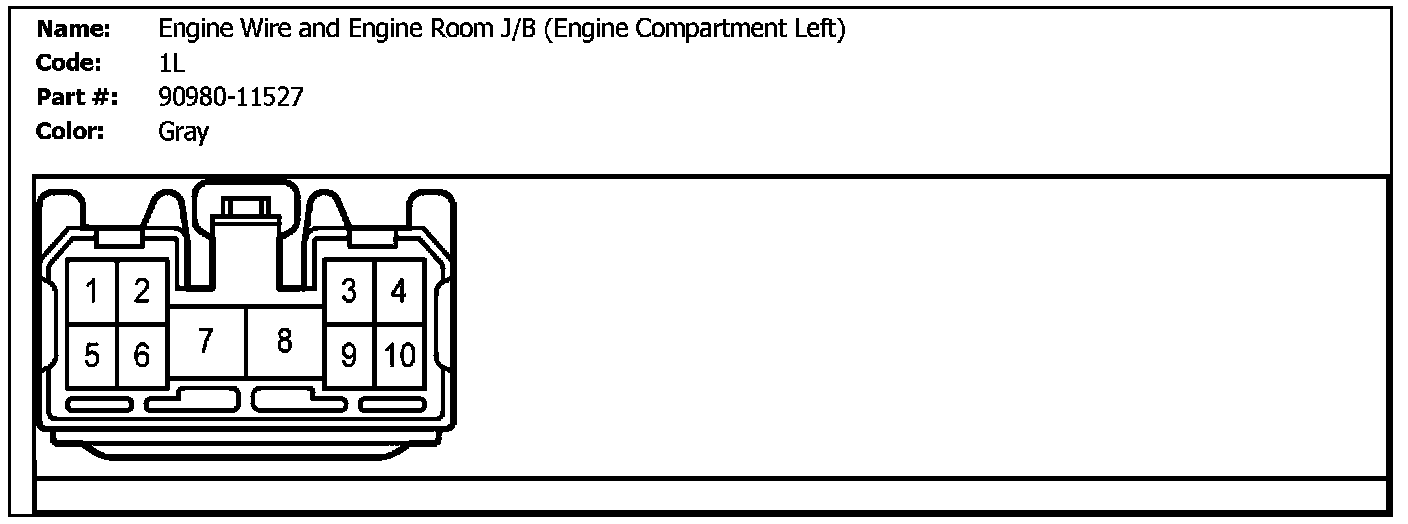

1L (Engine Wire And Engine Room J/B (Engine Compartment Left)):

2A (Engine Room Main Wire And Driver Side J/B (Lower Finish Panel)):

2B (Engine Room Main Wire And Driver Side J/B (Lower Finish Panel)):

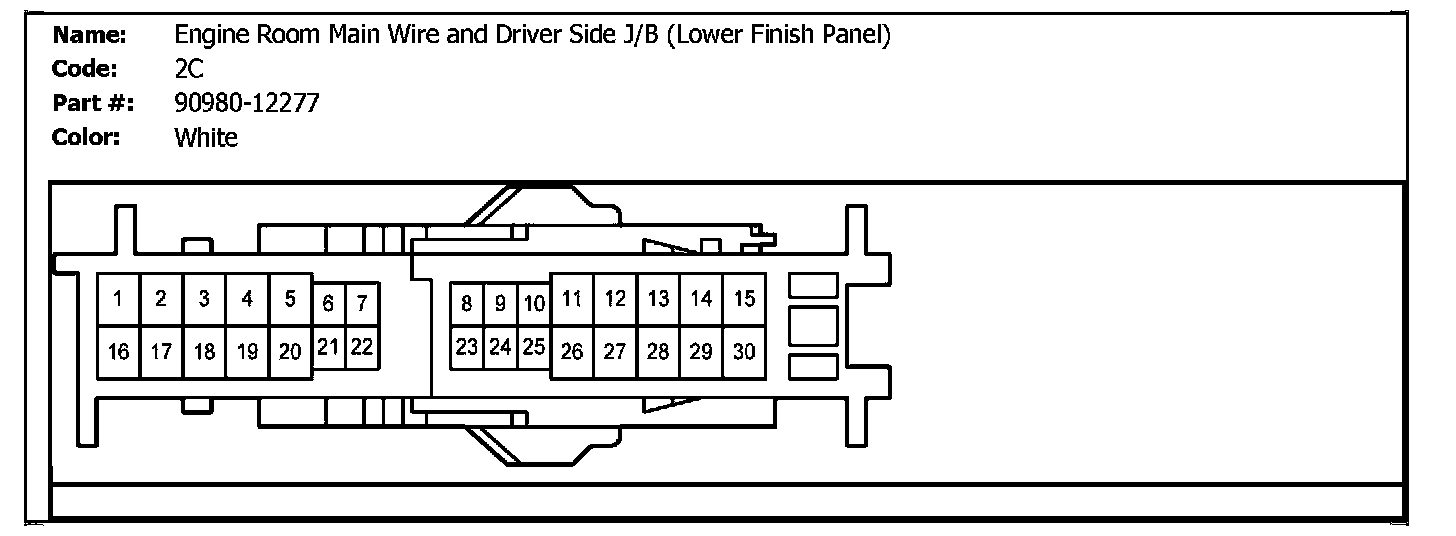

2C (Engine Room Main Wire And Driver Side J/B (Lower Finish Panel)):

EA1 (Engine Room Main Wire And Engine Room No.2 Wire (Radiator Side Support LH)):

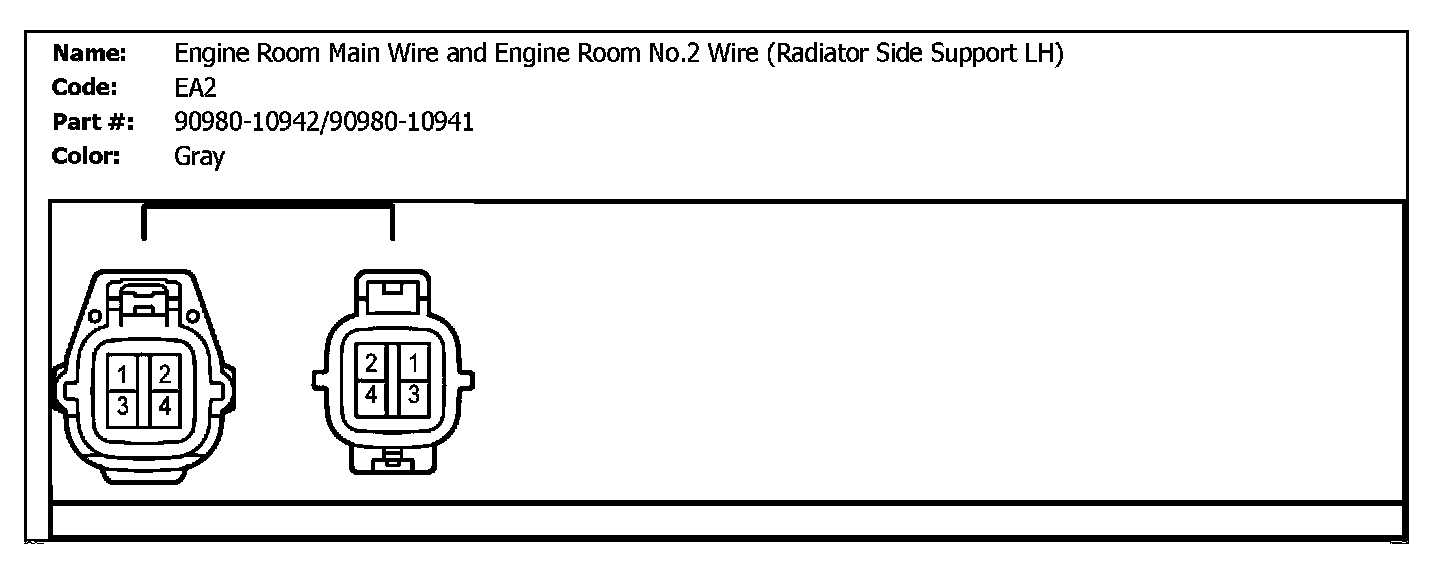

EA2 (Engine Room Main Wire And Engine Room No.2 Wire (Radiator Side Support LH)):

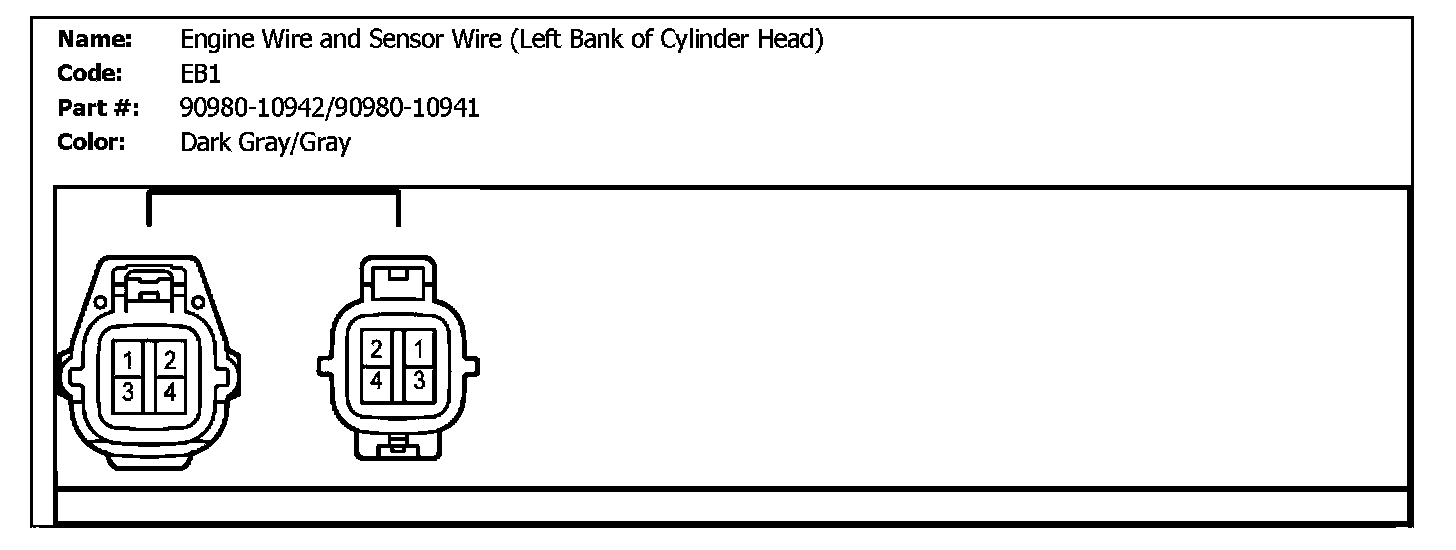

EB1 (Engine Wire And Sensor Wire (Left Bank Of Cylinder Head)):

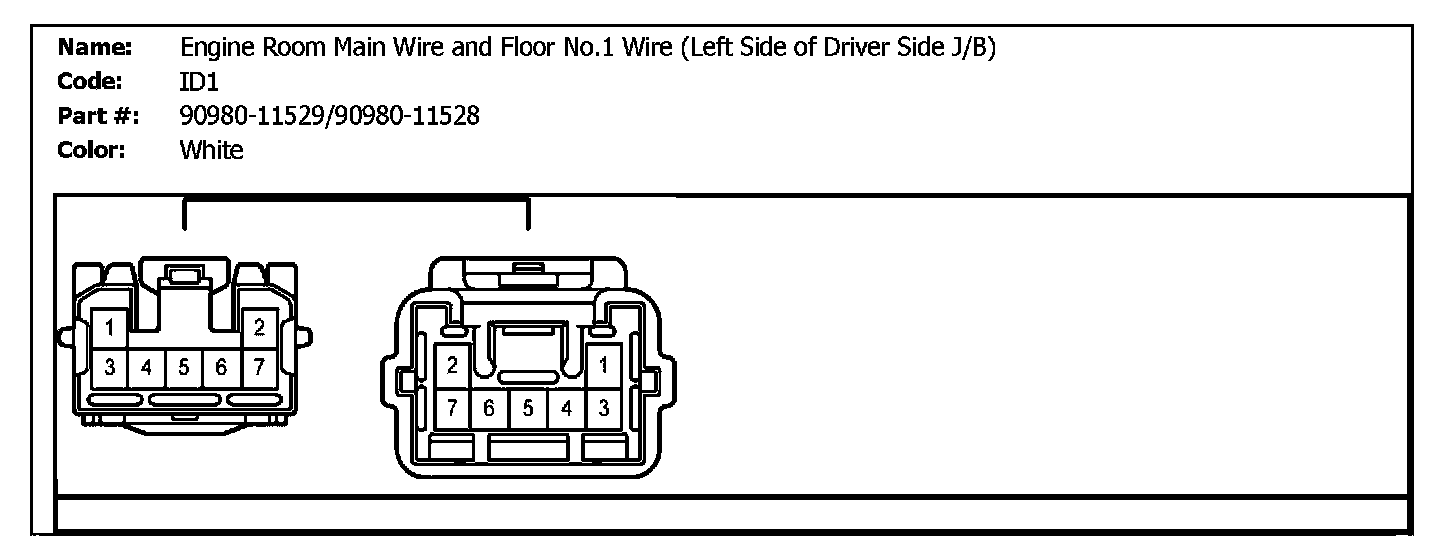

ID1 (Engine Room Main Wire And Floor No.1 Wire (Left Side Of Driver Side J/B)):

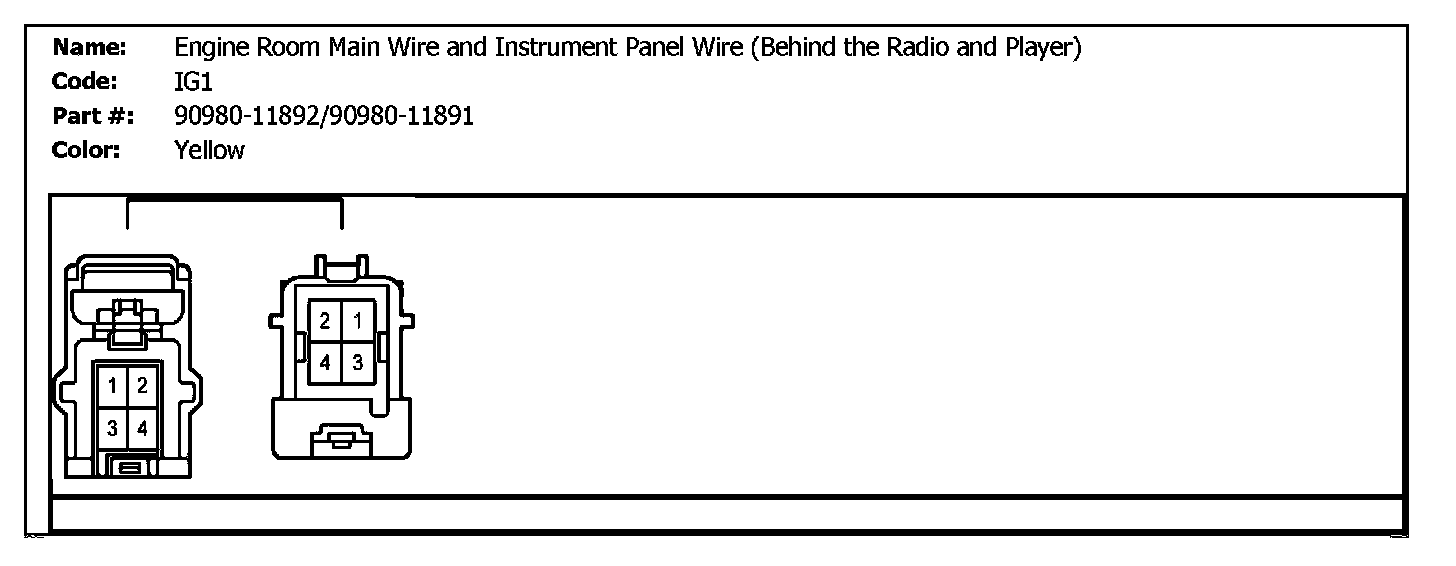

IG1 (Engine Room Main Wire And Instrument Panel Wire (Behind The Radio And Player)):

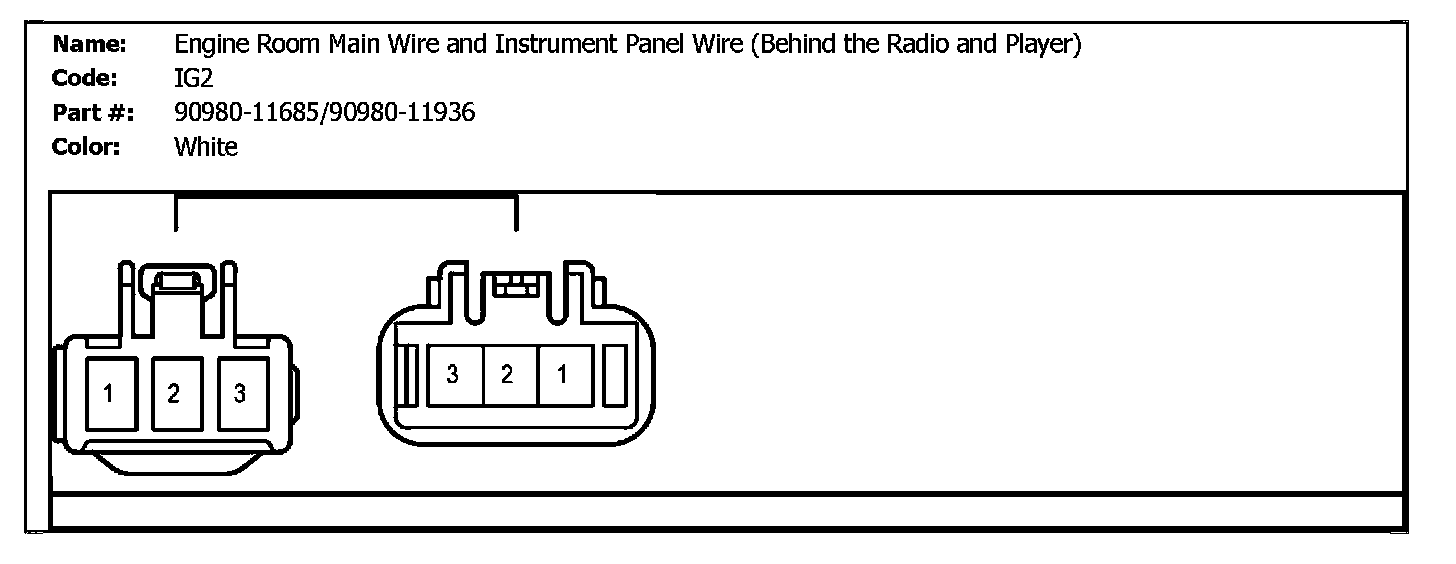

IG2 (Engine Room Main Wire And Instrument Panel Wire (Behind The Radio And Player)):

IG3 (Engine Room Main Wire And Instrument Panel Wire (Behind The Radio And Player)):

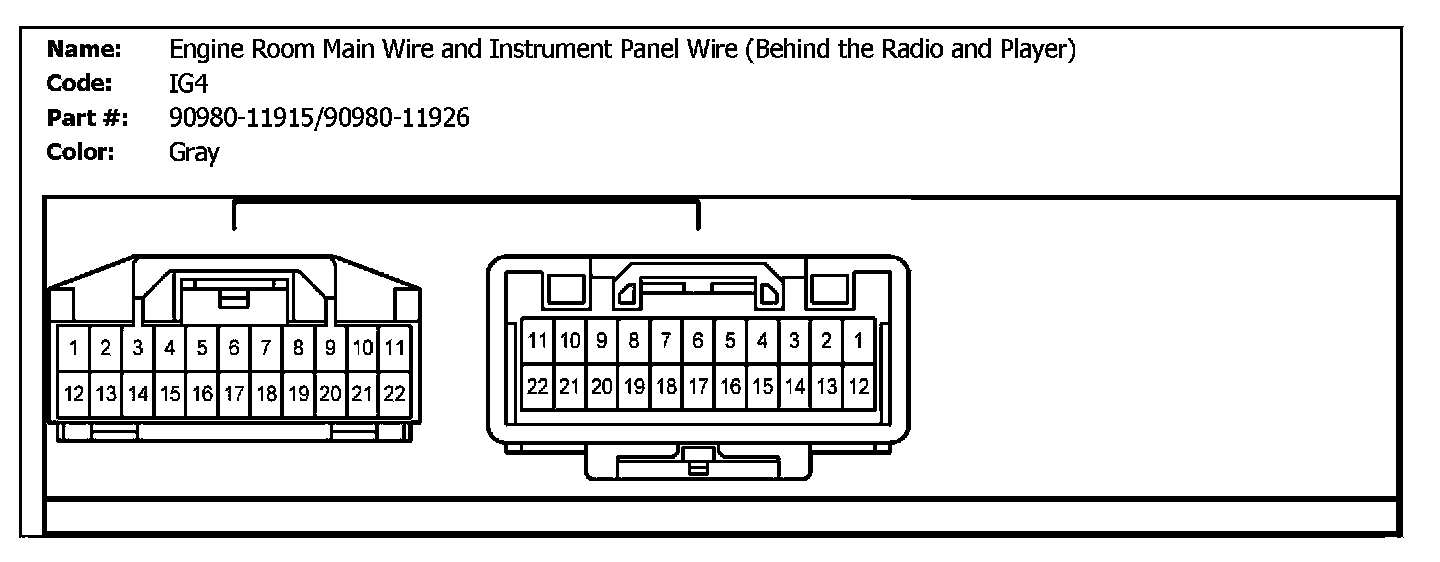

IG4 (Engine Room Main Wire And Instrument Panel Wire (Behind The Radio And Player)):

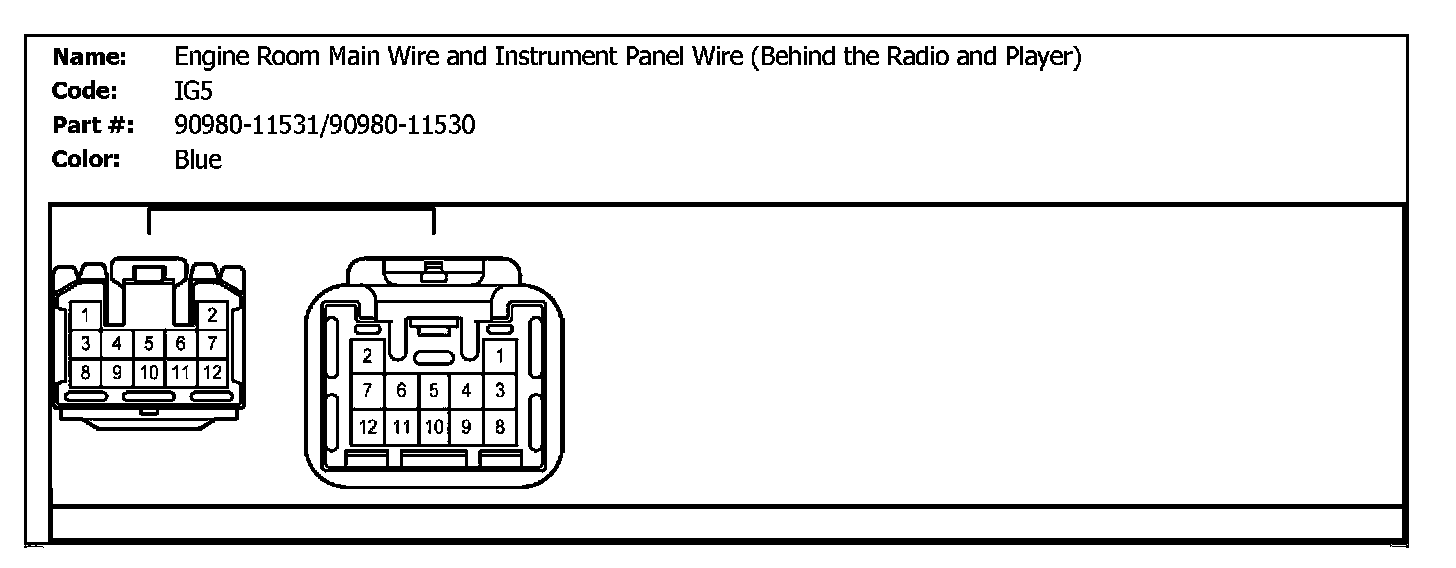

IG5 (Engine Room Main Wire And Instrument Panel Wire (Behind The Radio And Player)):

IG6 (Engine Room Main Wire And Instrument Panel Wire (Behind The Radio And Player)):

IG8 (Engine Room Main Wire And Instrument Panel Wire (Behind The Radio And Player)):

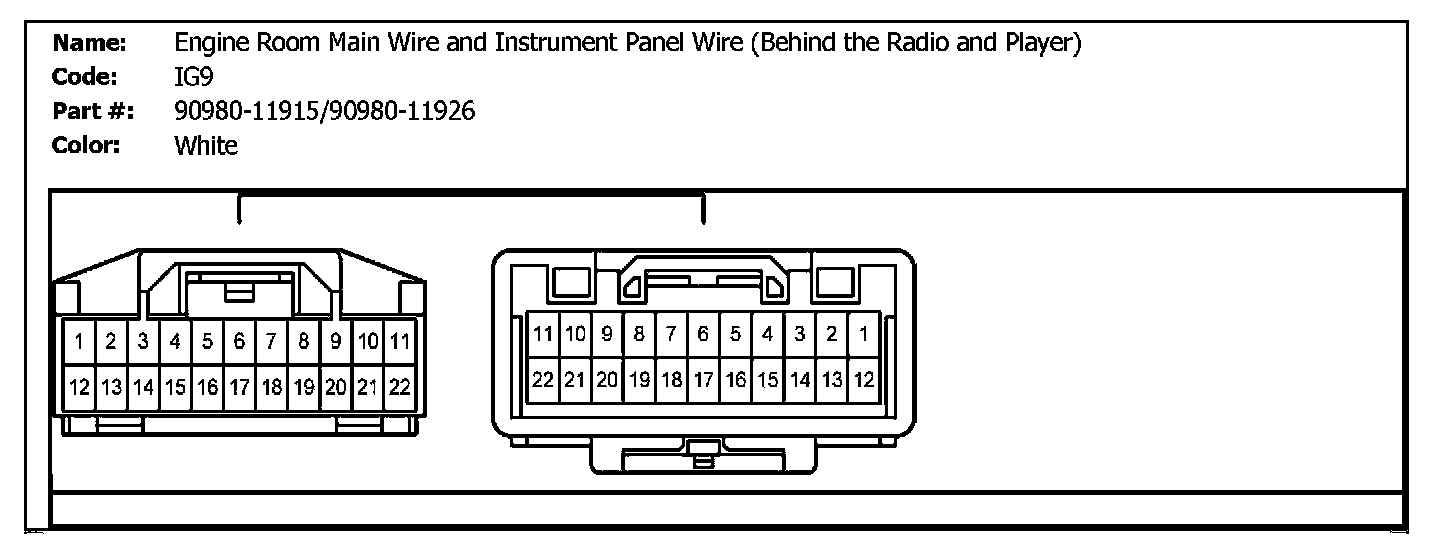

IG9 (Engine Room Main Wire And Instrument Panel Wire (Behind The Radio And Player)):

IM1 (Engine Wire And Instrument Panel Wire (Behind The Glove Box)):

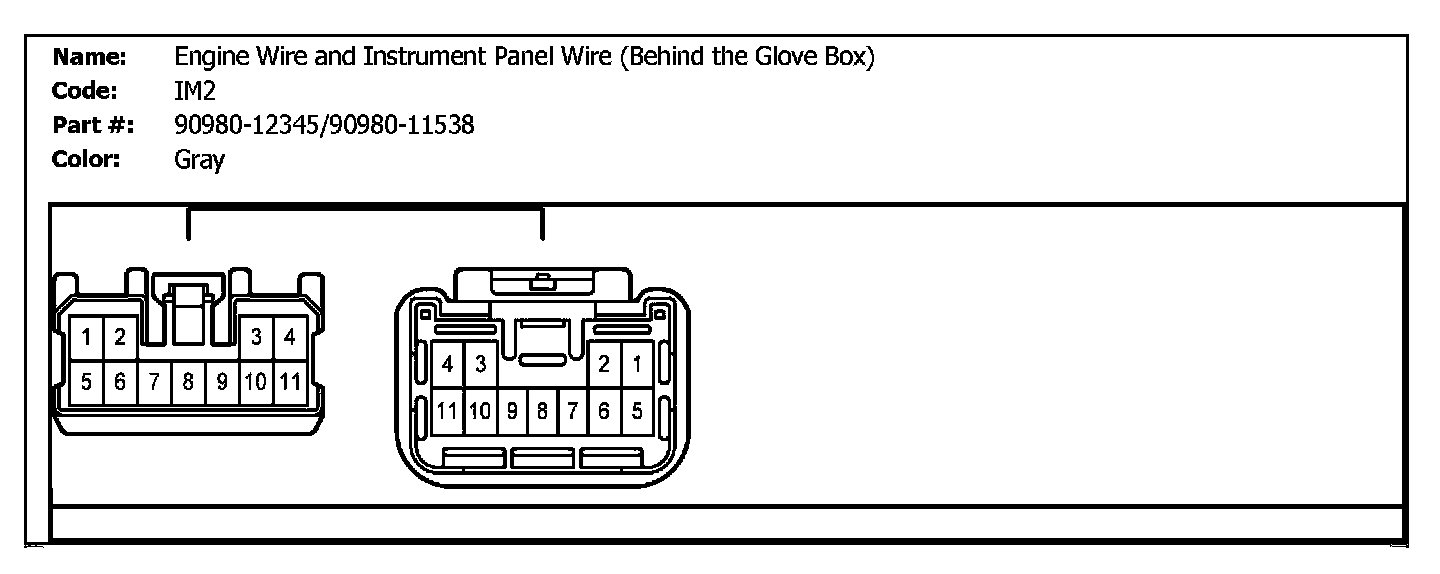

IM2 (Engine Wire And Instrument Panel Wire (Behind The Glove Box)):
