Body Control Module
Body Control Module

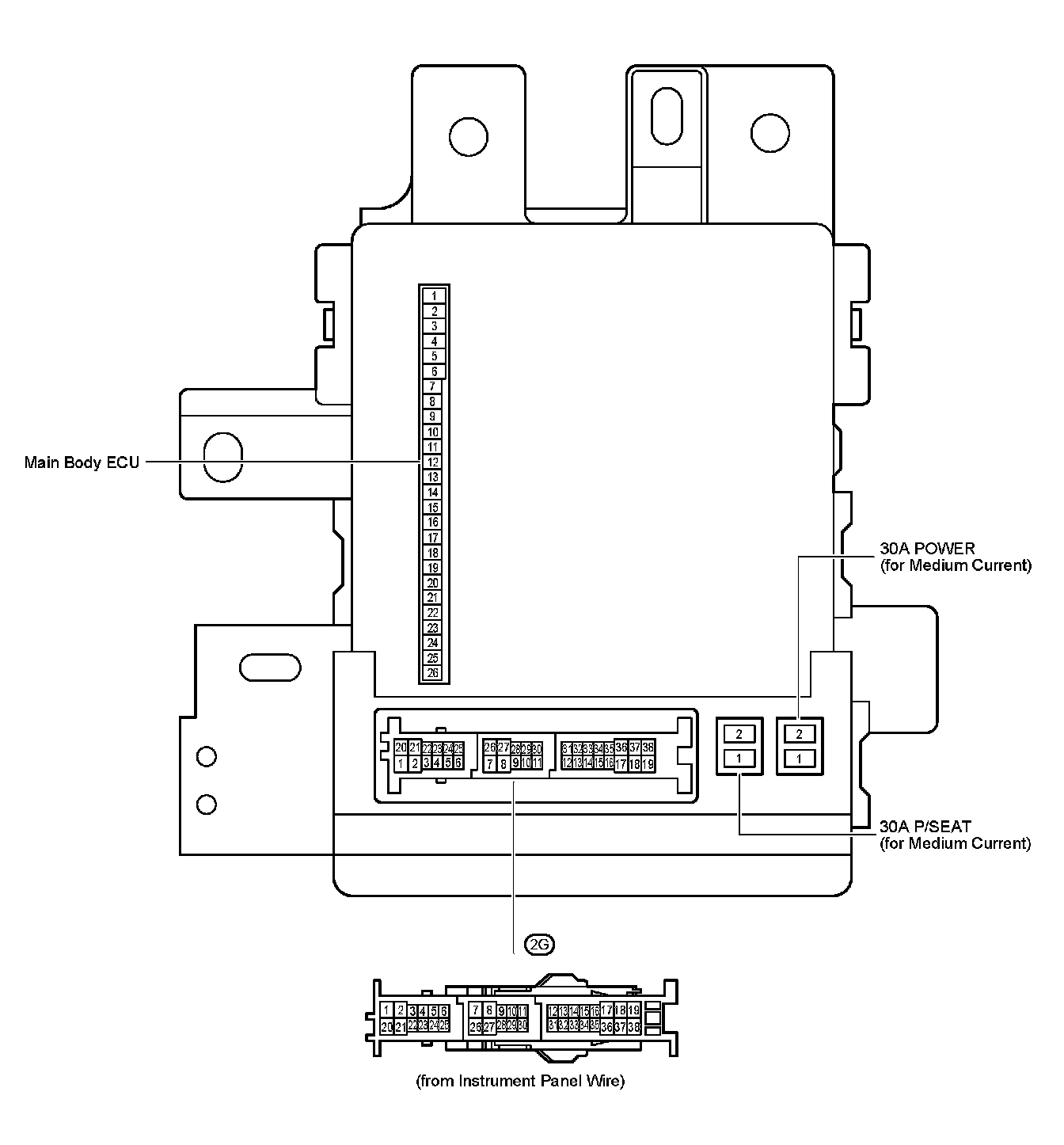

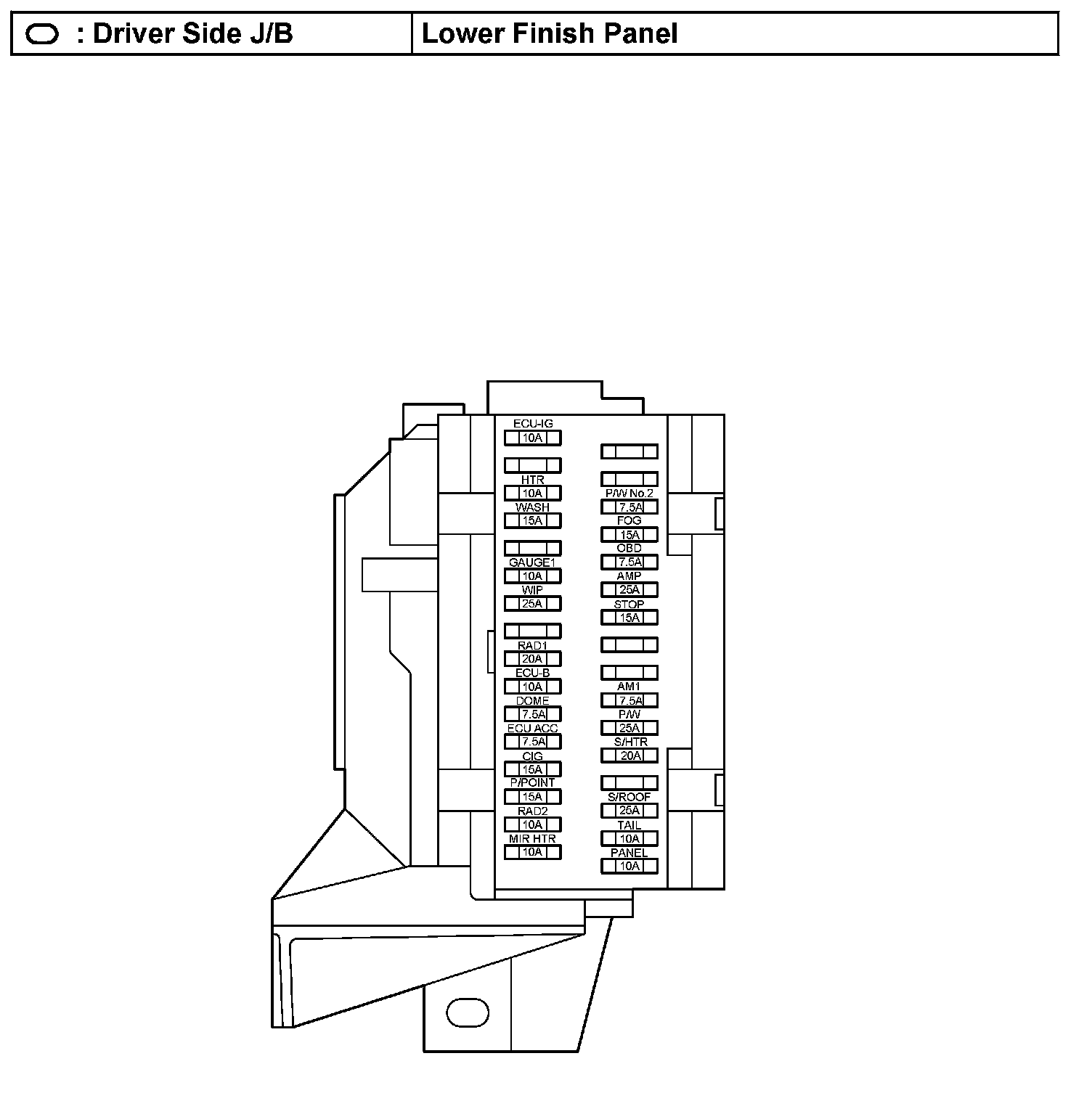

Driver Side J/B - Lower Finish Panel:
Driver Side J/B - Lower Finish Panel:
Engine Room J/B - Engine Compartment Left:

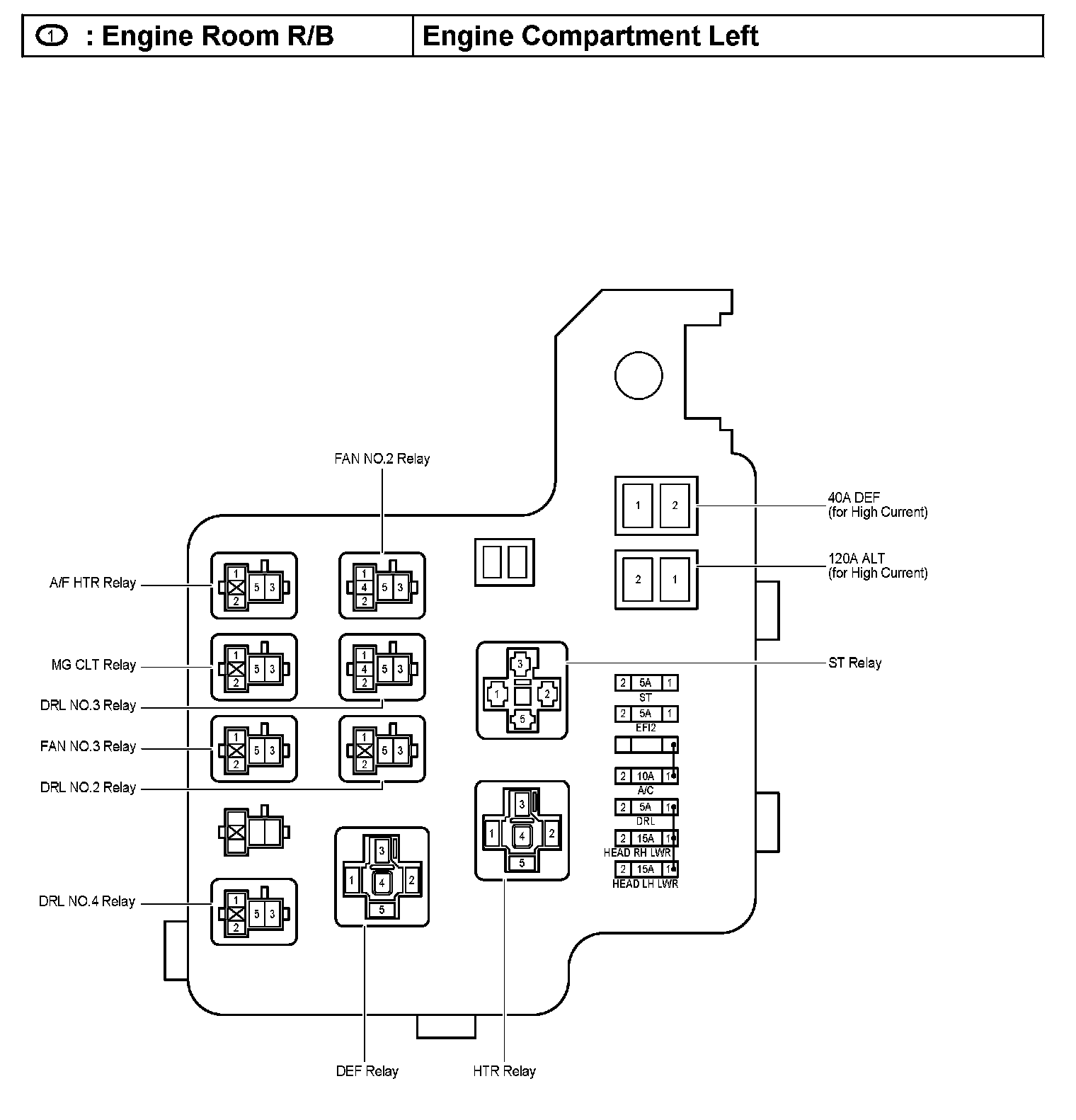

Engine Room R/B - Engine Compartment Left:
