Home
>>
Toyota
>>
2008
>>
Solara Convertible V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

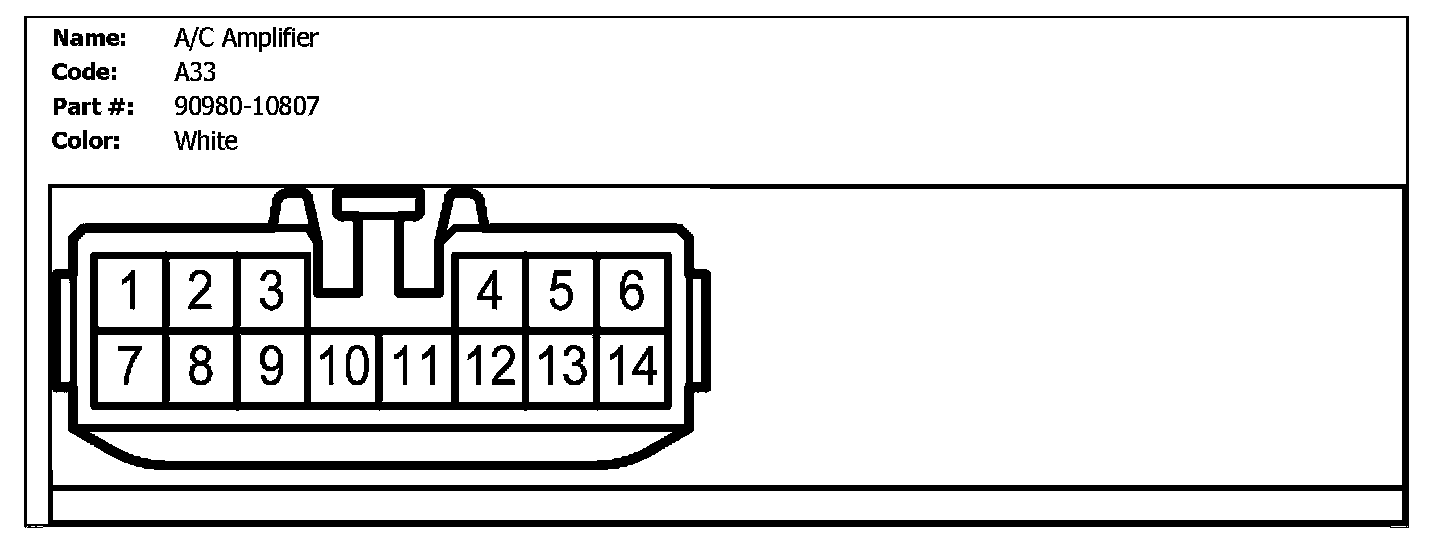

A33 (A/C Amplifier):
