Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2008
>>
Solara Convertible V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

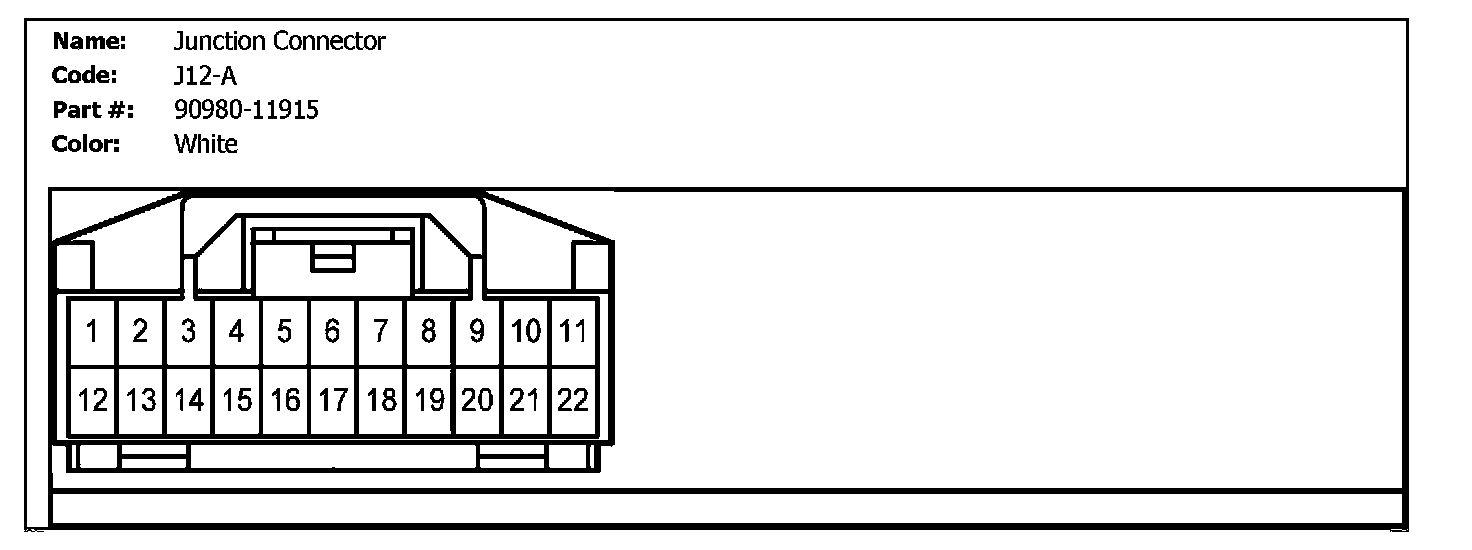

J12-A (Junction Connector)
J12-A (Junction Connector)
J12-A (Junction Connector):
