Power Window Motor
Power Window Motor

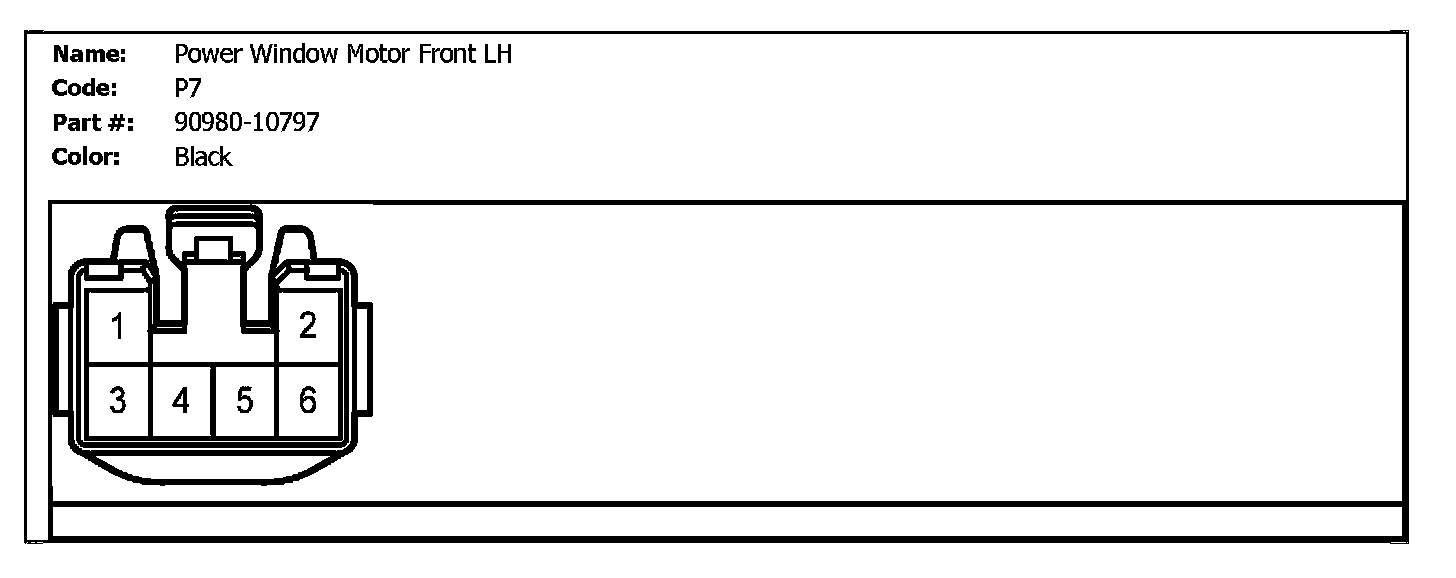

P7 (Power Window Motor Front LH):
P8 (Power Window Motor Front RH):
Q2 (Quater Power Window Motor RH):
