Navigation System

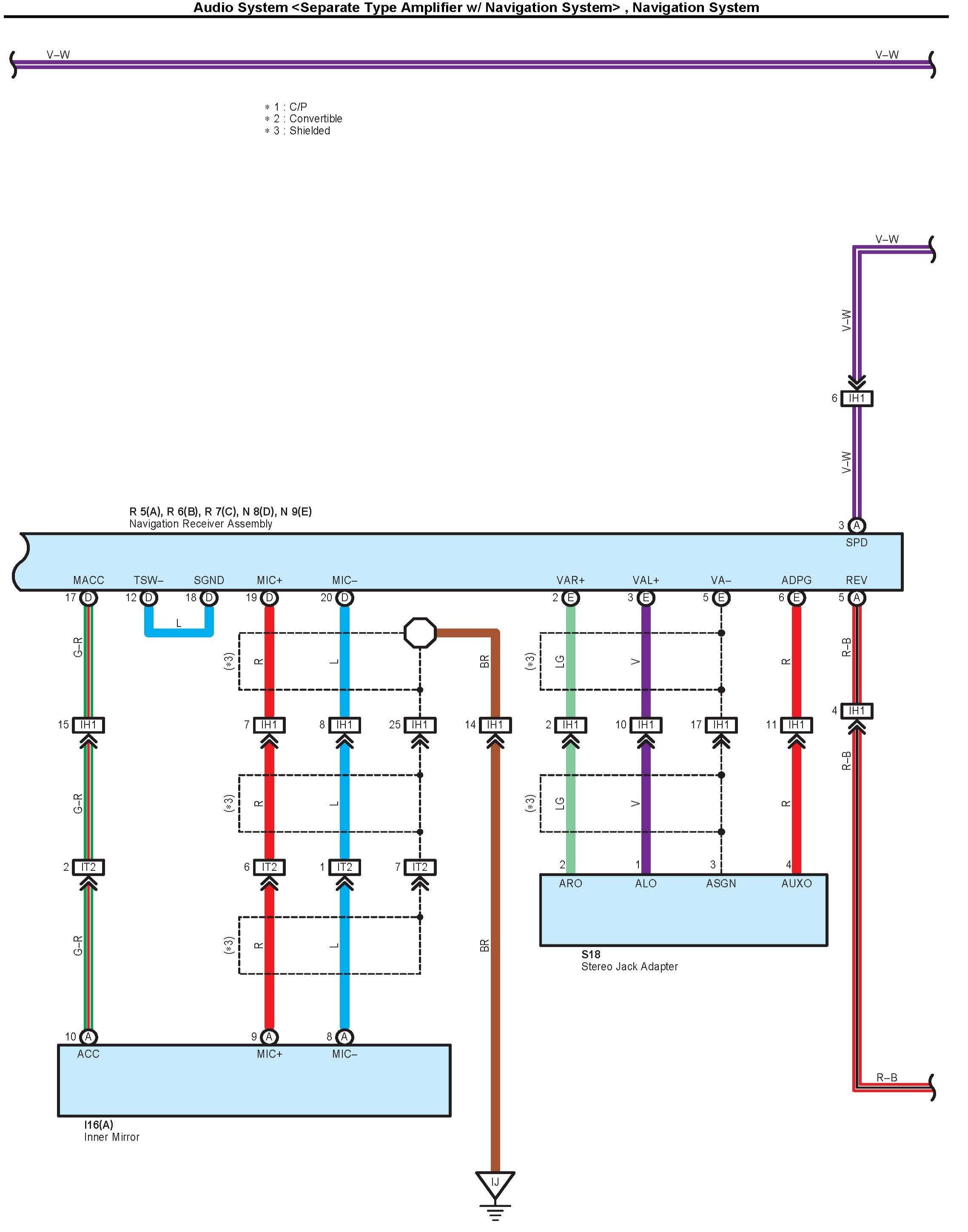

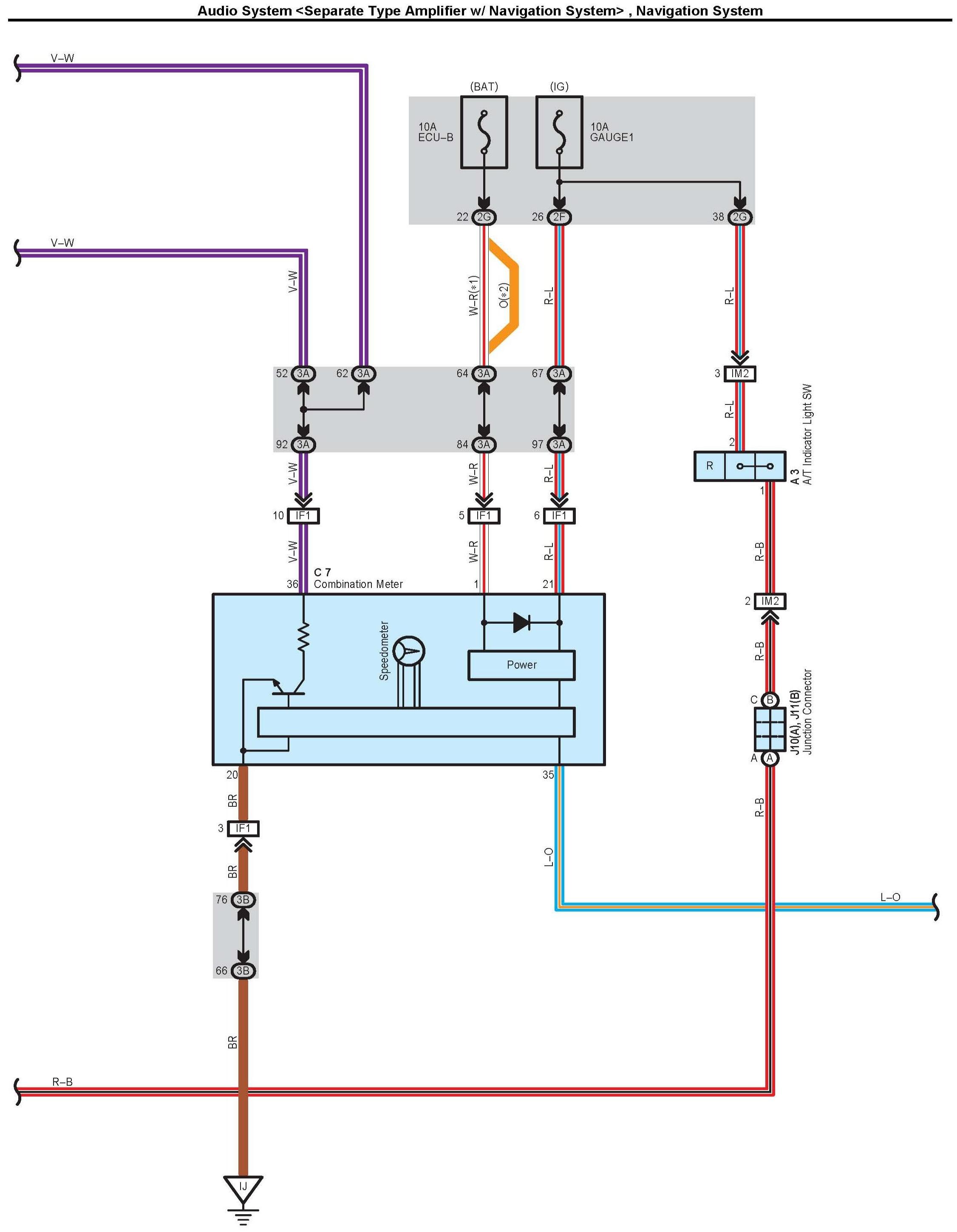

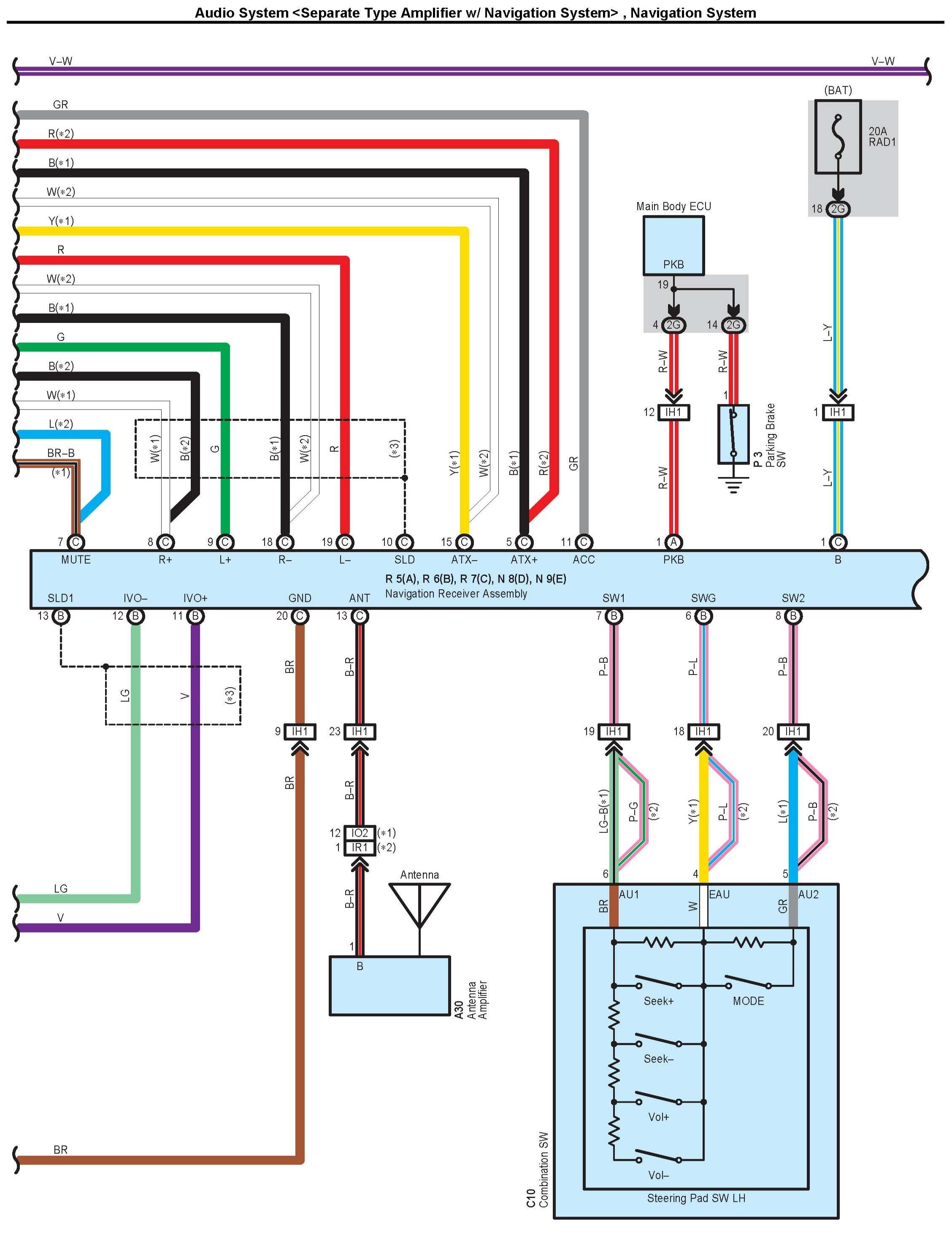

Audio System (Separate Type Amplifier System), Navigation System Part 1:

Audio System (Separate Type Amplifier System), Navigation System Part 2:

Audio System (Separate Type Amplifier System), Navigation System Part 3:

Audio System (Separate Type Amplifier System), Navigation System Part 4:

Audio System (Separate Type Amplifier System), Navigation System Part 5:

Audio System (Separate Type Amplifier System), Navigation System Part 6:

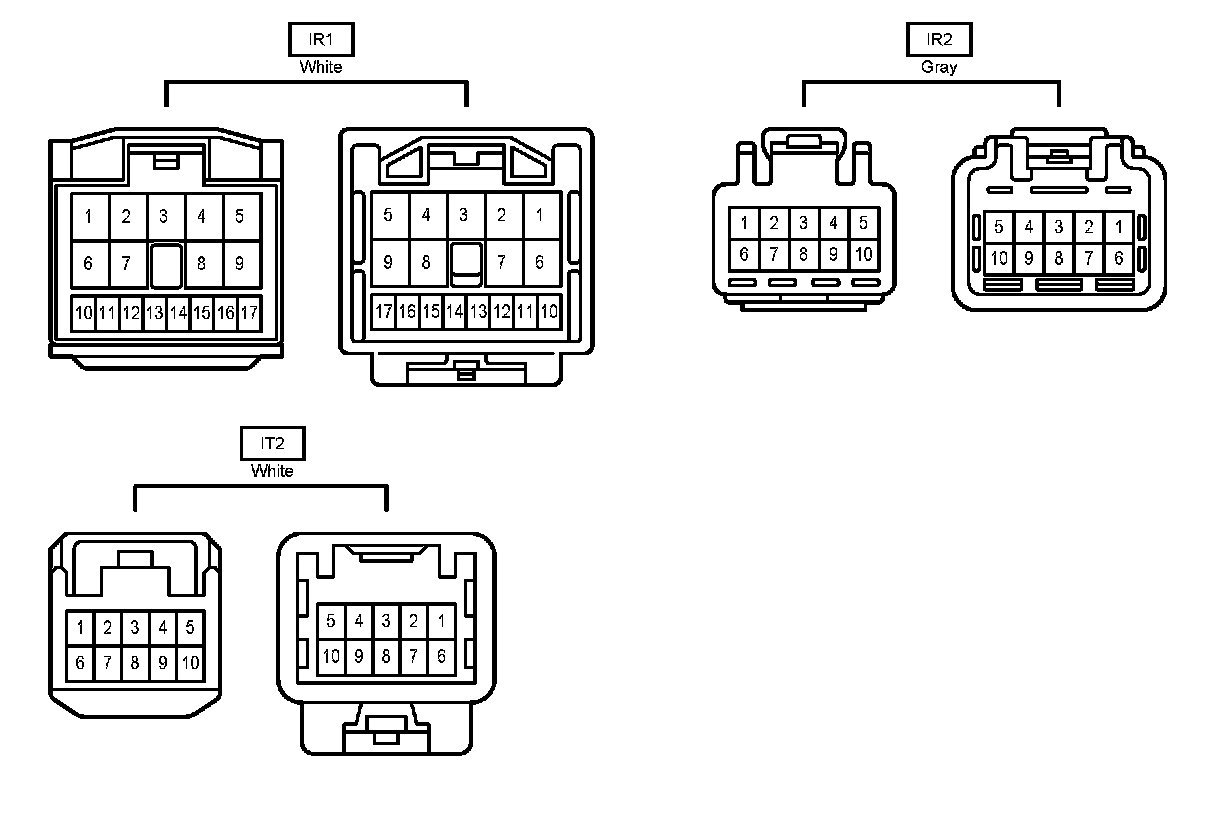

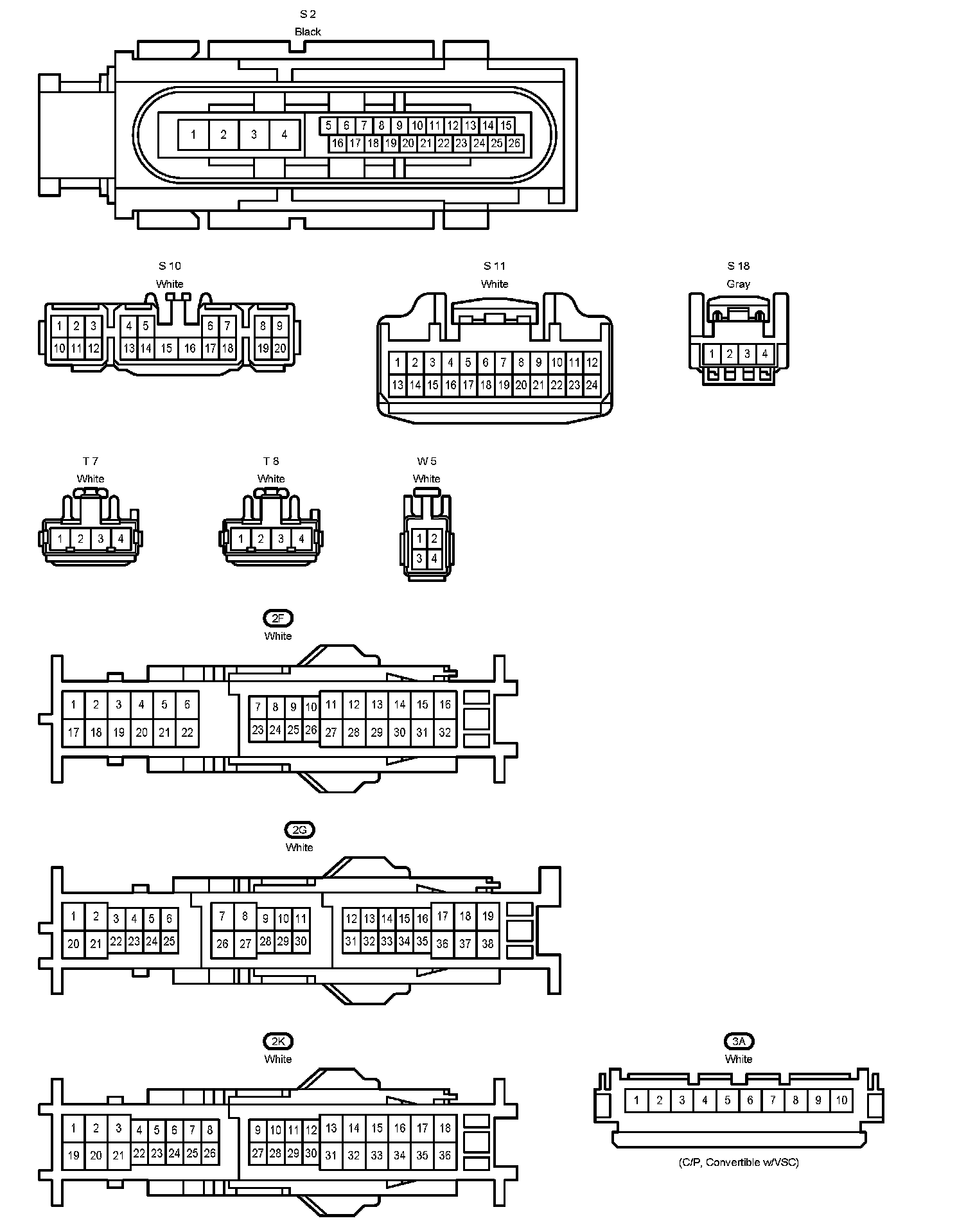

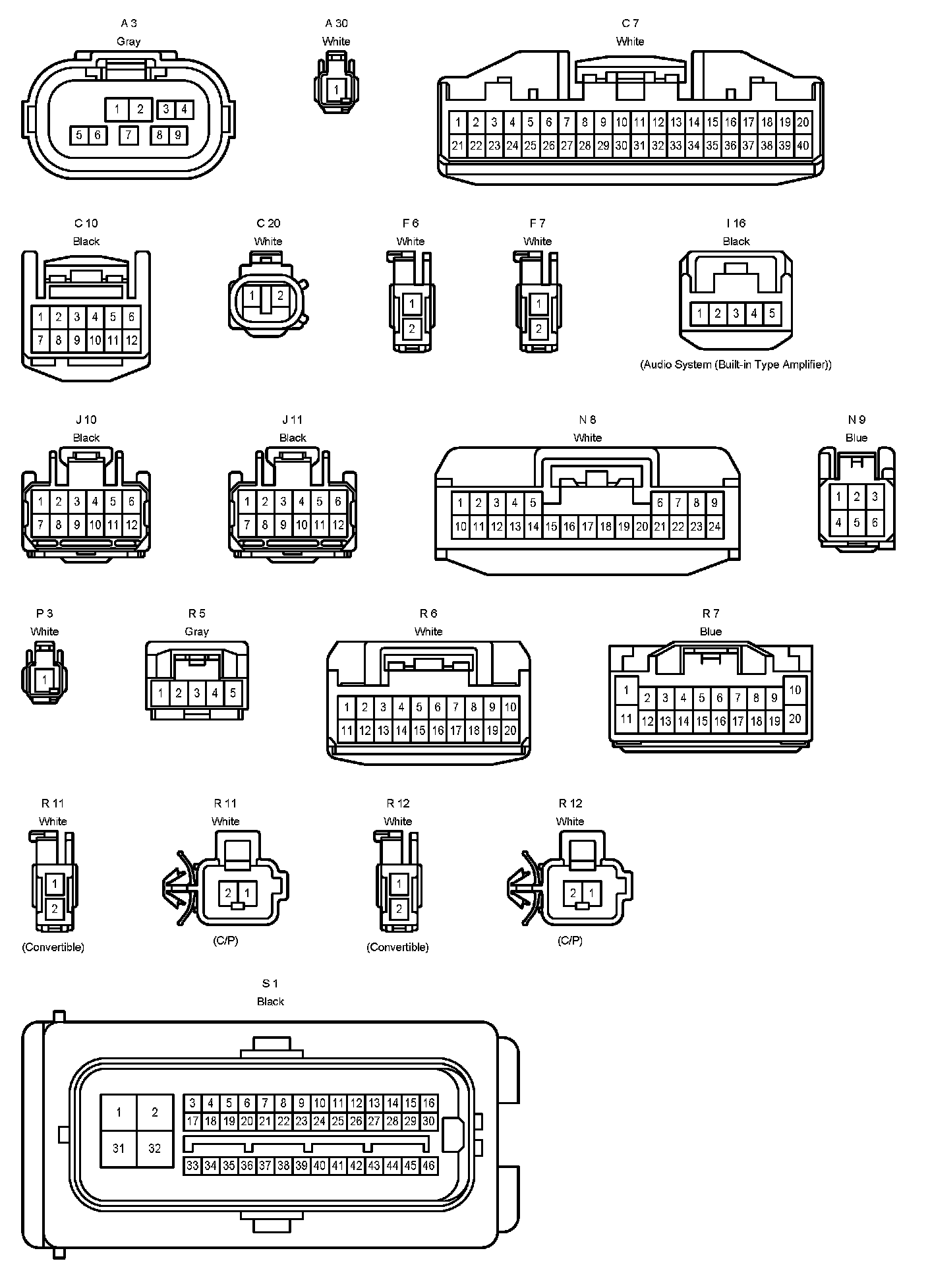

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
