Compressor Clutch Relay: Testing and Inspection

AIR CONDITIONING: MAGNETIC CLUTCH RELAY:

INSPECTION

1. INSPECT MAGNET-CLUTCH RELAY





(a) Remove the relay (magnet clutch relay) from the engine room R/B.

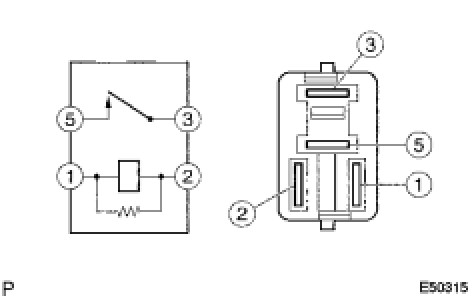

(b) Measure the resistance according to the value(s) in the table below.

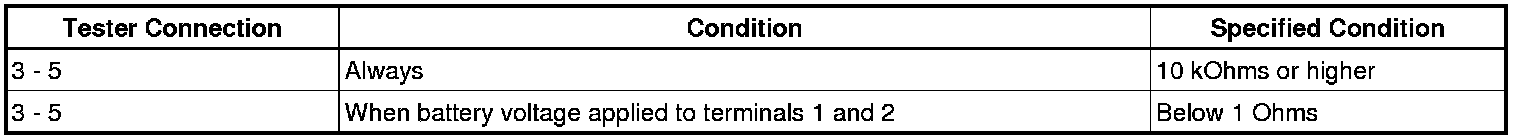

Standard resistance:





If the resistance is not as specified, replace the magnet clutch relay.
