Meter / Gauge System

METER / GAUGE SYSTEM:

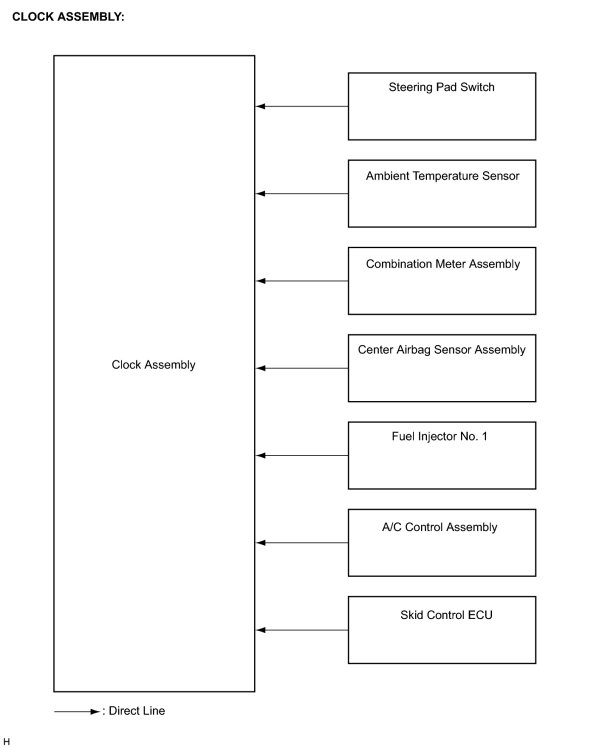

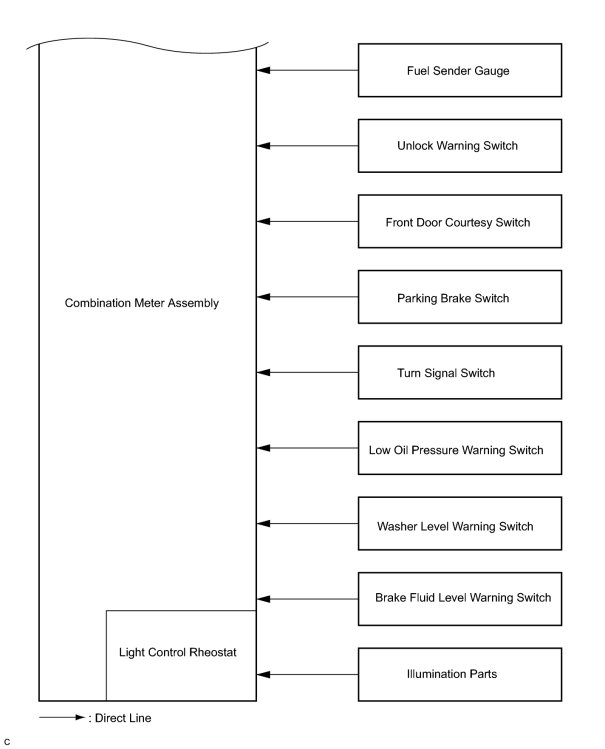

SYSTEM DIAGRAM

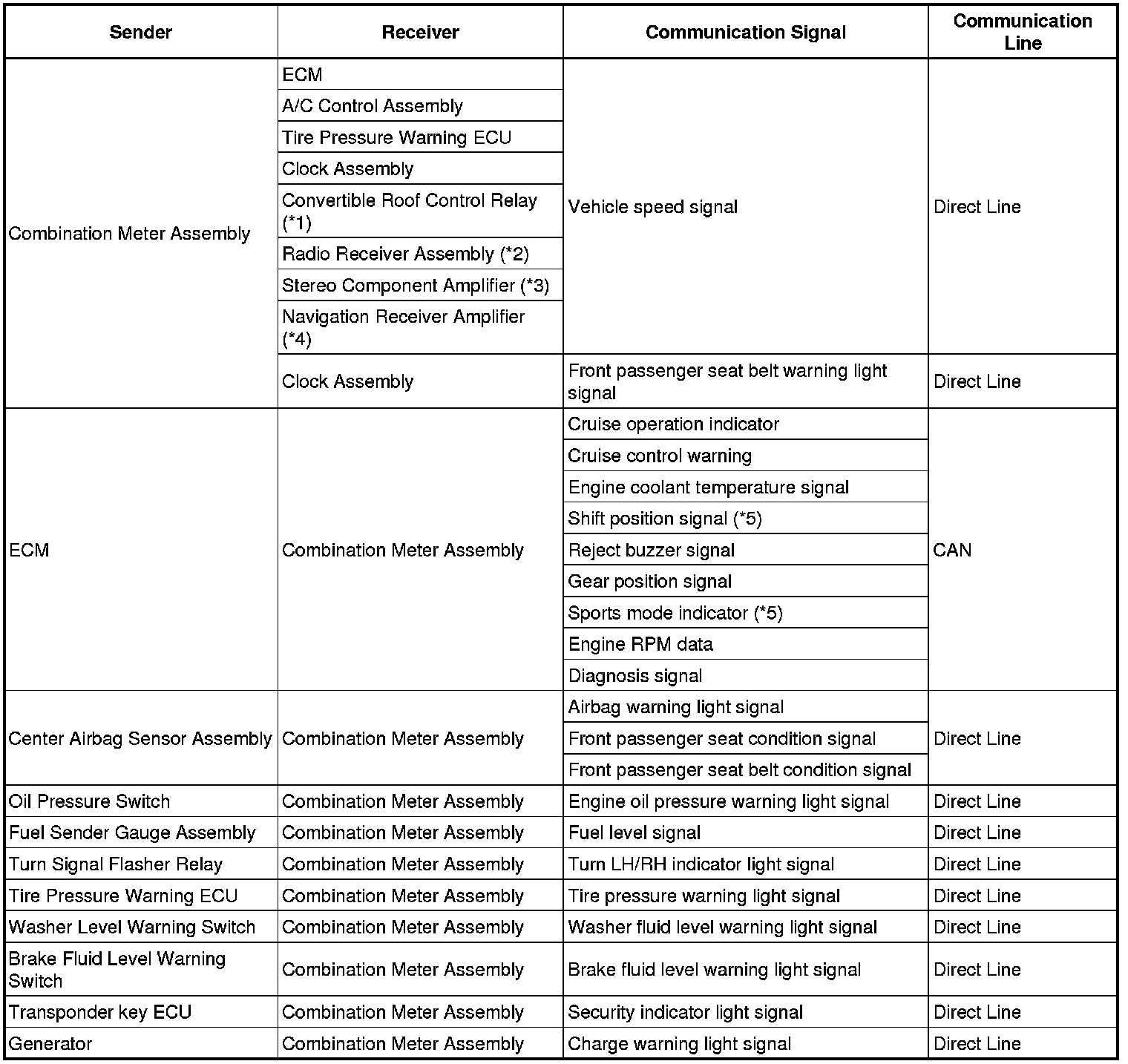

INPUT AND OUTPUT SIGNALS OF COMBINATION METER ASSEMBLY:





*1: for Convertible
*2: for Built-in Type Amplifier System
*3: for Separate Type Amplifier System
*4: with Navigation System
*5: for Automatic Transaxle


SYSTEM DESCRIPTION

1. METER GAUGE:

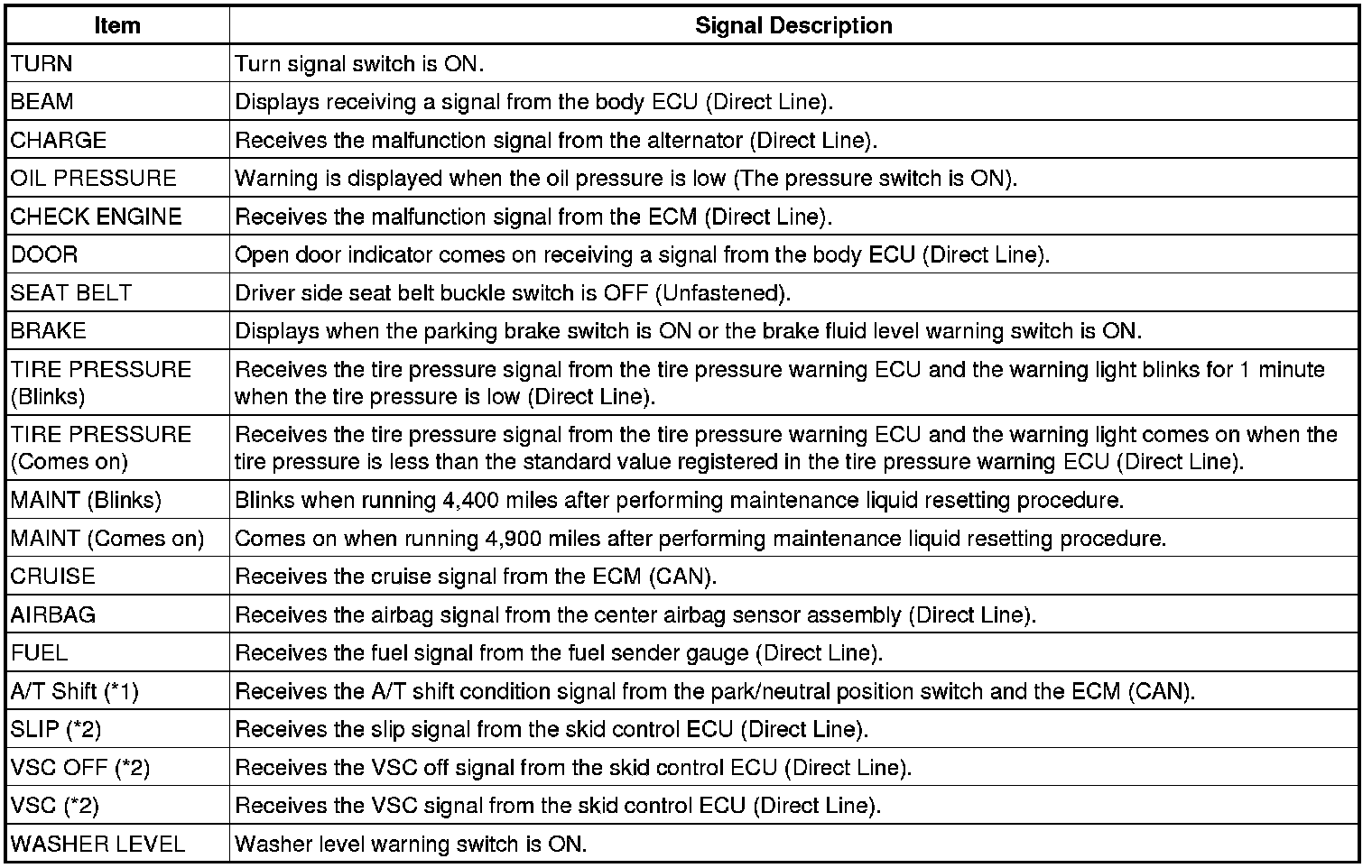

WARNING / INDICATOR:

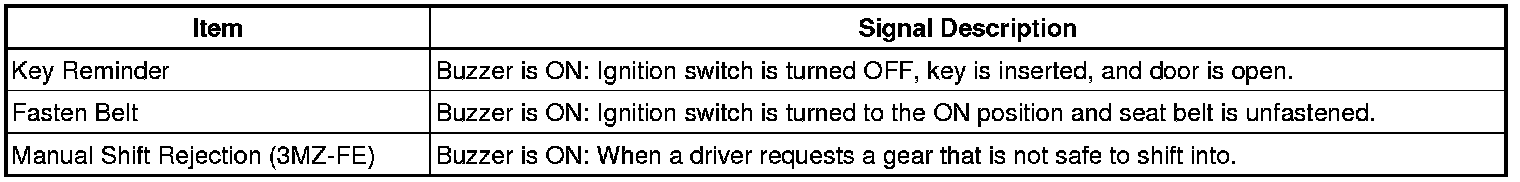

BUZZER:





*1: for Automatic Transaxle
*2: with VSC
2. THE COMBINATION METER IN CAMRY SOLARA HAS THE FOLLOWING FEATURES:
(a) Built-in buzzer for the reminder system (light, key, and seat belt)
(b) Integrated rheostat, trip and odometer knobs.

- Rotate knob to adjust interior illumination.
- Press and release knob to scroll through trip "A", trip "B", and odometer features.
- Press and hold the trip knob to reset trip meter functions.

(c) Oil maintenance indicator

- 4,500 miles after performing maintenance liquid resetting procedure, the maintenance indicator begins to blink for 15 seconds after the ignition switch is turned to the ON position.
- 5,000 miles after performing maintenance liquid resetting procedure, the maintenance indicator comes on.
- Press and hold the trip knob to reset the oil maintenance indicator.

(d) Clock (Multifunction display)

- The followings are the features: Instant fuel consumption, Average fuel consumption, Distance to empty, Average speed, Elapsed time, Clock, Outside temperature.
- Press "H" and "M" buttons at the same time (within 240 ms of each other) to switch between Fahrenheit/mph and Celsius/km/h.
- Press and release the "DISP" switch on the steering wheel to scroll through trip computer functions.
- Press and hold the "DISP" switch on the steering wheel for 0.6 seconds or more to reset the stored values.
