Dome Lamp: Testing and Inspection

LIGHTING: ROOM LIGHT ASSEMBLY (for Convertible):

INSPECTION

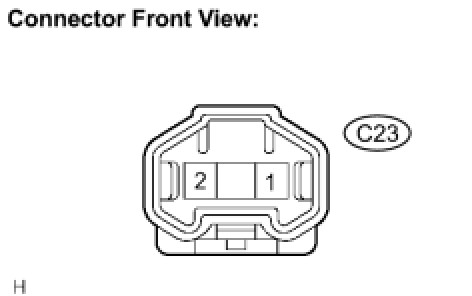

1. ROOM LIGHT ASSEMBLY





(a) Connect the positive (+) lead from the battery to one of the terminal and the negative (-) lead to other terminal, then check that the light comes on.
OK:
Lights comes on.
