Fog/Driving Lamp: Testing and Inspection

LIGHTING SYSTEM: Front Fog Light Circuit

Front Fog Light Circuit

DESCRIPTION

The multiplex network body ECU controls the FOG relay when a signal is received from the headlight dimmer switch assembly.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT RELAY

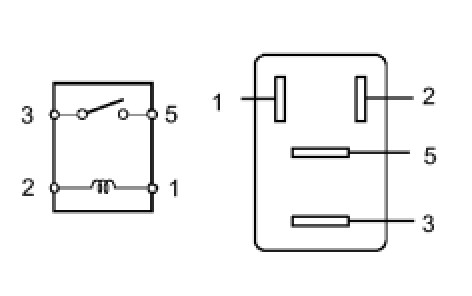

(a) Inspect fog light relay continuity.





(1) Measure the resistance according to the value(s) in the table below.

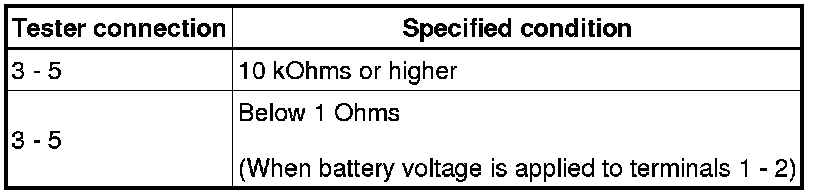

Standard resistance:

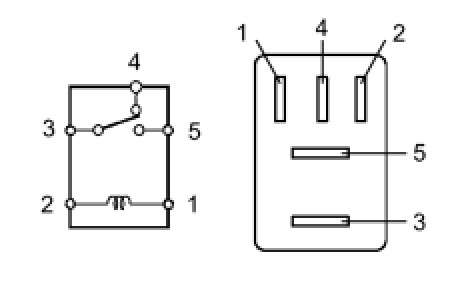

(b) Inspect tail relay continuity.





(1) Measure the resistance according to the value(s) in the table below.

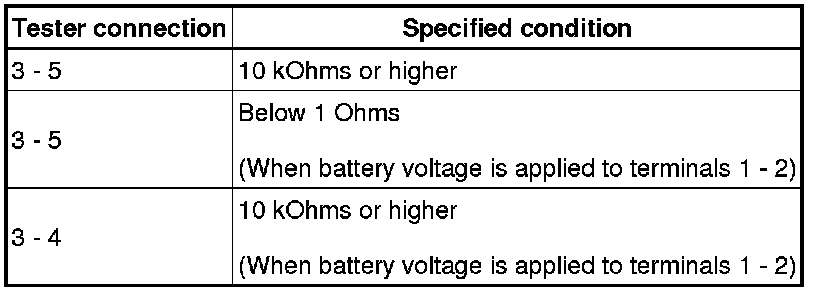

Standard resistance:





NG -- REPLACE RELAY
OK -- Continue to next step.
2. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY (POWER SOURCE CIRCUIT)

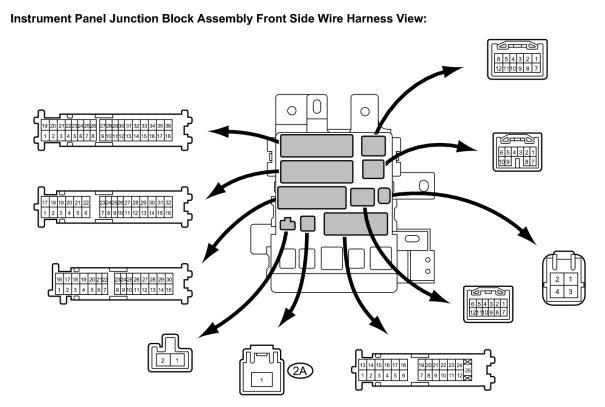

(a) Disconnect the 2A connector from the instrument panel junction block assembly.





(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
OK -- Continue to next step.
3. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

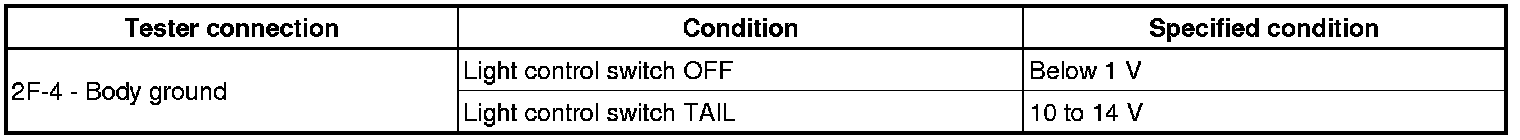

(a) Measure the voltage according to the value(s) in the table below.

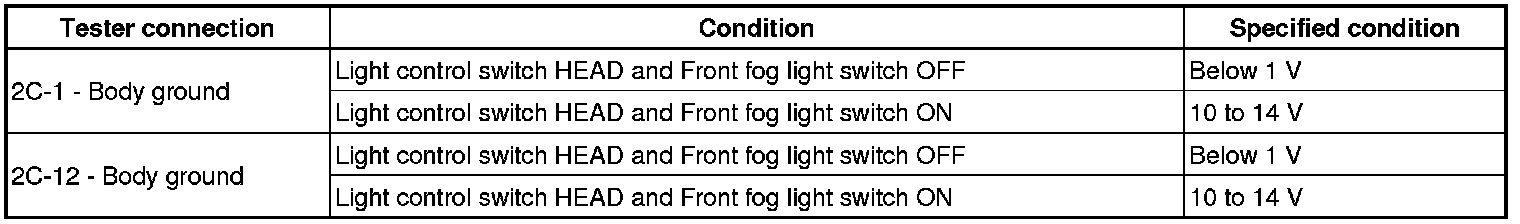

Standard voltage:





NG -- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (EACH OF FRONT FOG LIGHT CIRCUIT)
4. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
(a) Measure the voltage according to the value(s) in the table below.





Standard voltage:





NG -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
OK -- Continue to next step.
5. CHECK HARNESS AND CONNECTOR
(a) Measure the voltage according to the value(s) in the table below.





Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
6. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
(a) Measure the voltage according to the value(s) in the table below.





Standard voltage:





NG -- REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
OK -- Continue to next step.
7. CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK BODY ECU - INSTRUMENT PANEL JUNCTION BLOCK)

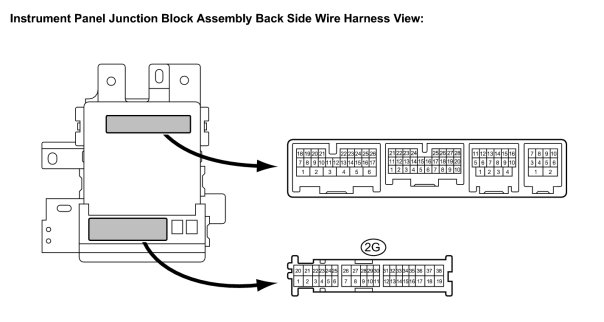

(a) Disconnect the B9 connector of the multiplex network body ECU and the 2G connector of the instrument panel junction block assembly.





(b) Measure the resistance according to the value(s) in the table below.

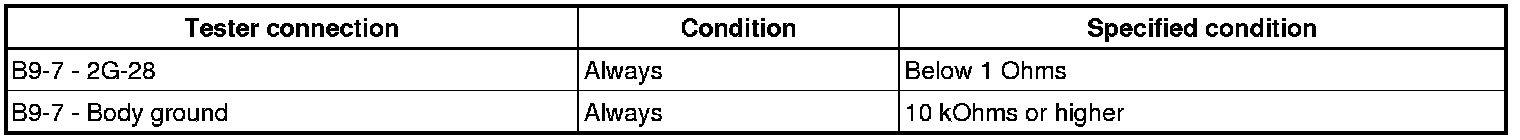

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
