Key Cylinder Lamp: Testing and Inspection

LIGHTING: IGNITION KEY CYLINDER LIGHT:

INSPECTION

1. TRANSPONDER KEY AMPLIFIER





(a) Inspect ignition key cylinder light operation.

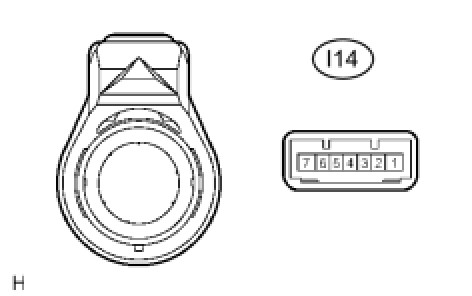

(1) Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 6, then check that the illumination comes on.
OK:
Illumination comes on.
