Pinout Values and Diagnostic Parameters








OCCUPANT CLASSIFICATION SYSTEM:

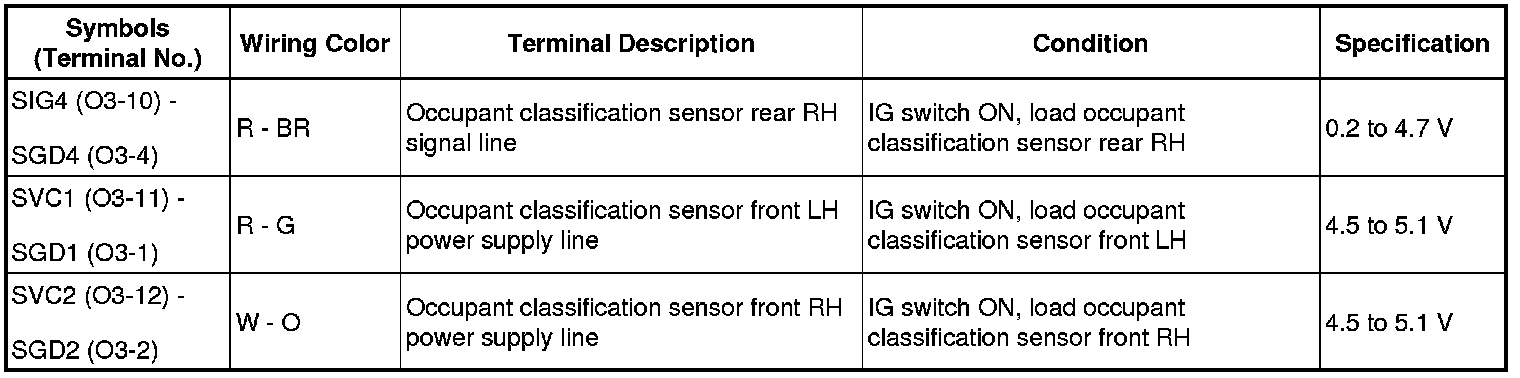

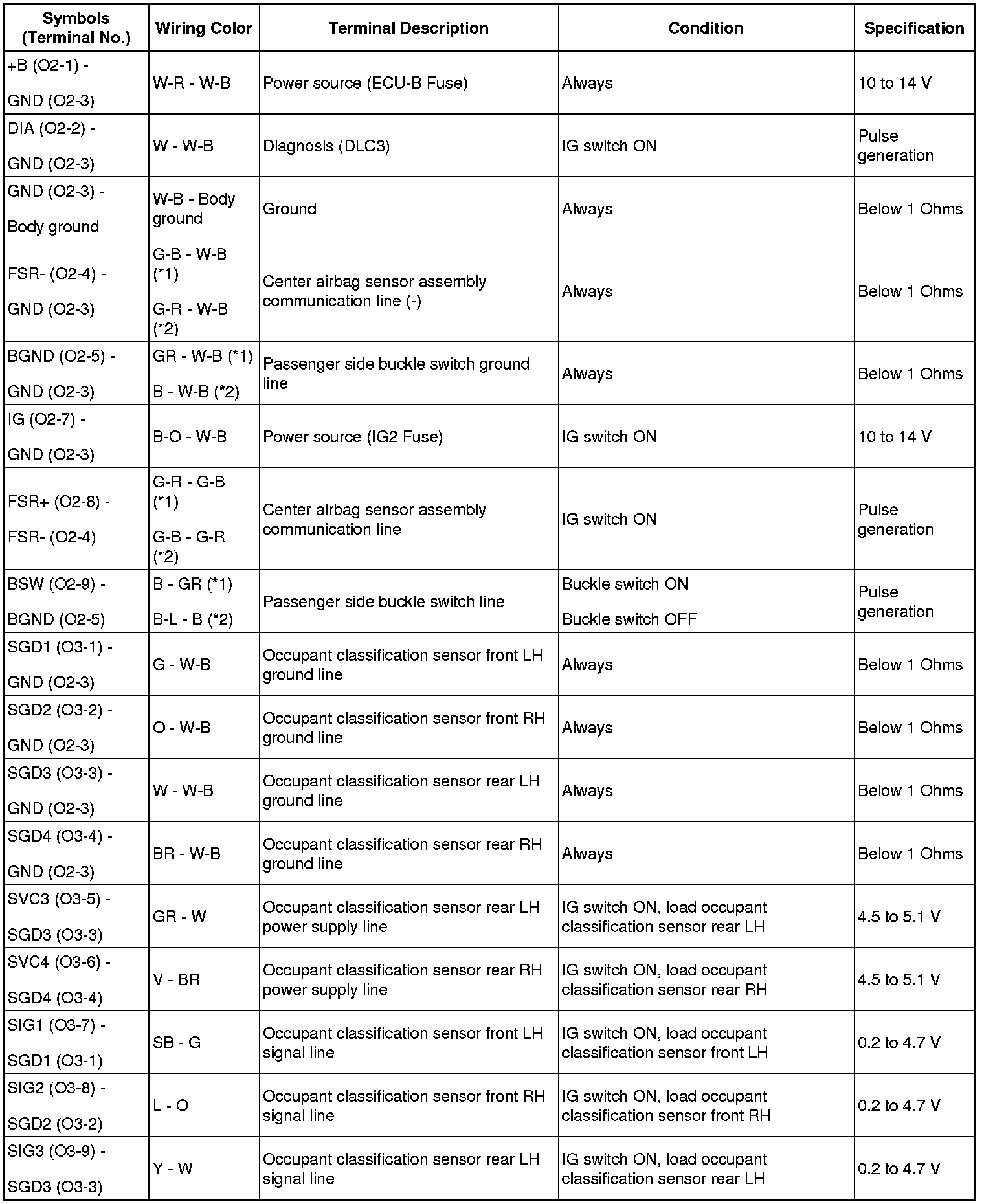

TERMINALS OF ECU

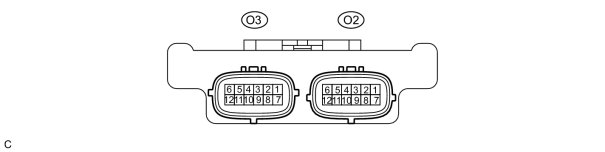

1. OCCUPANT CLASSIFICATION ECU













*1: Coupe
*2: Convertible
