Alignment

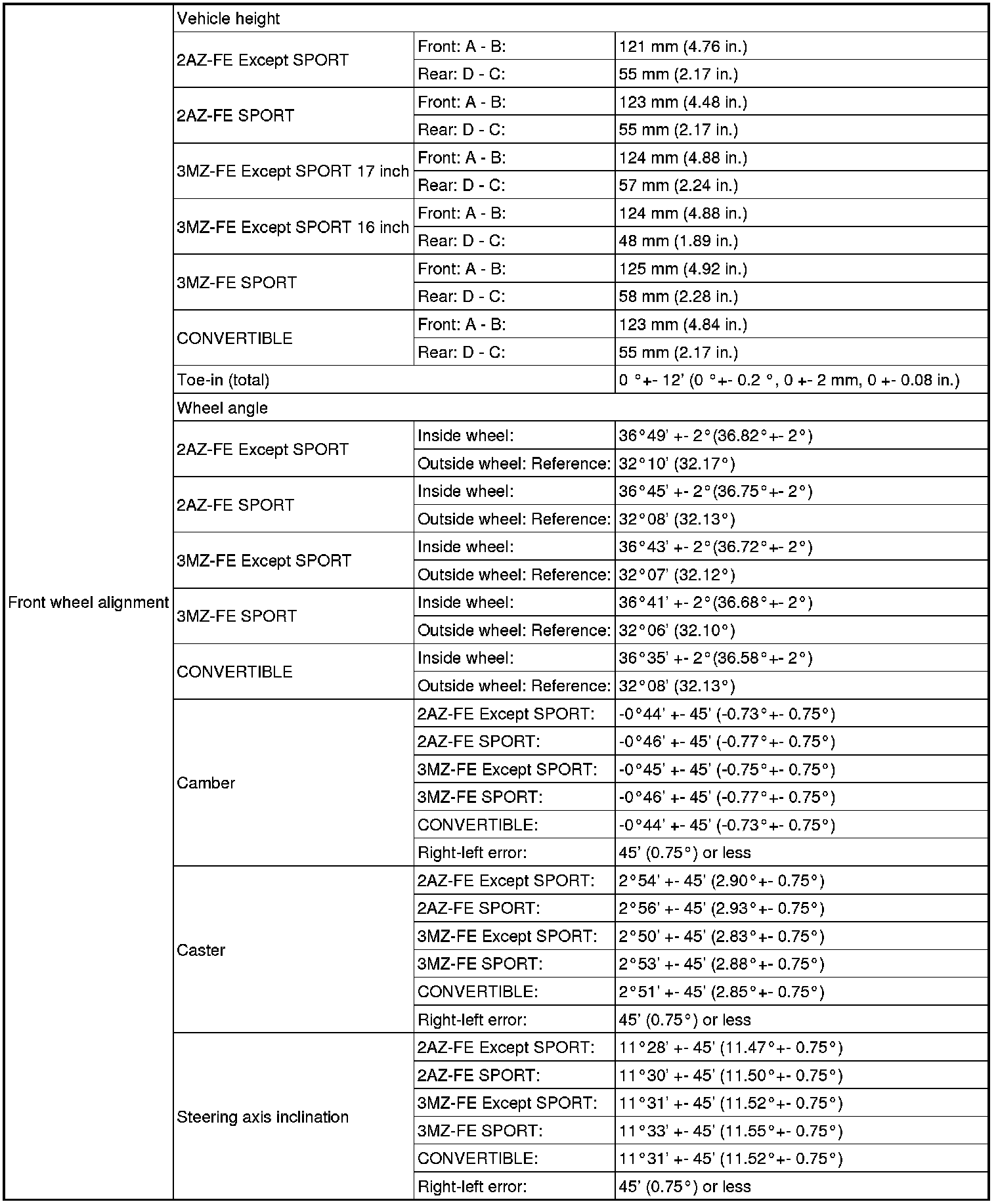

SERVICE SPECIFICATIONS: SUSPENSION:

SERVICE DATA

FRONT SUSPENSION:









A: Ground clearance of front wheel center
B: Ground clearance of front suspension arm sub-assembly lower No.2 set bolt head center
C: Ground clearance of strut rod set bolt center
D: Ground clearance of rear wheel center

REAR SUSPENSION:
