Home >> Toyota >> 2008 >> Solara Convertible V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Specifications

Suspension: Specifications








SERVICE SPECIFICATIONS: SUSPENSION:

TORQUE SPECIFICATIONS

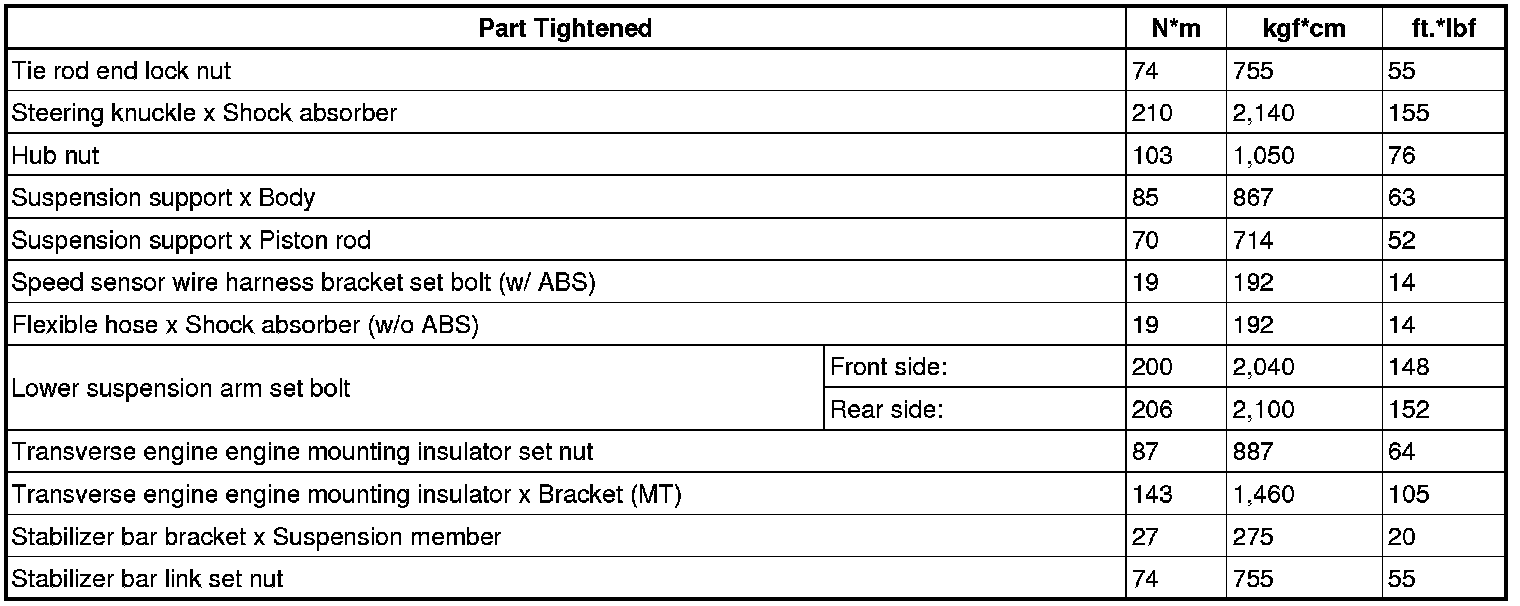

FRONT SUSPENSION:

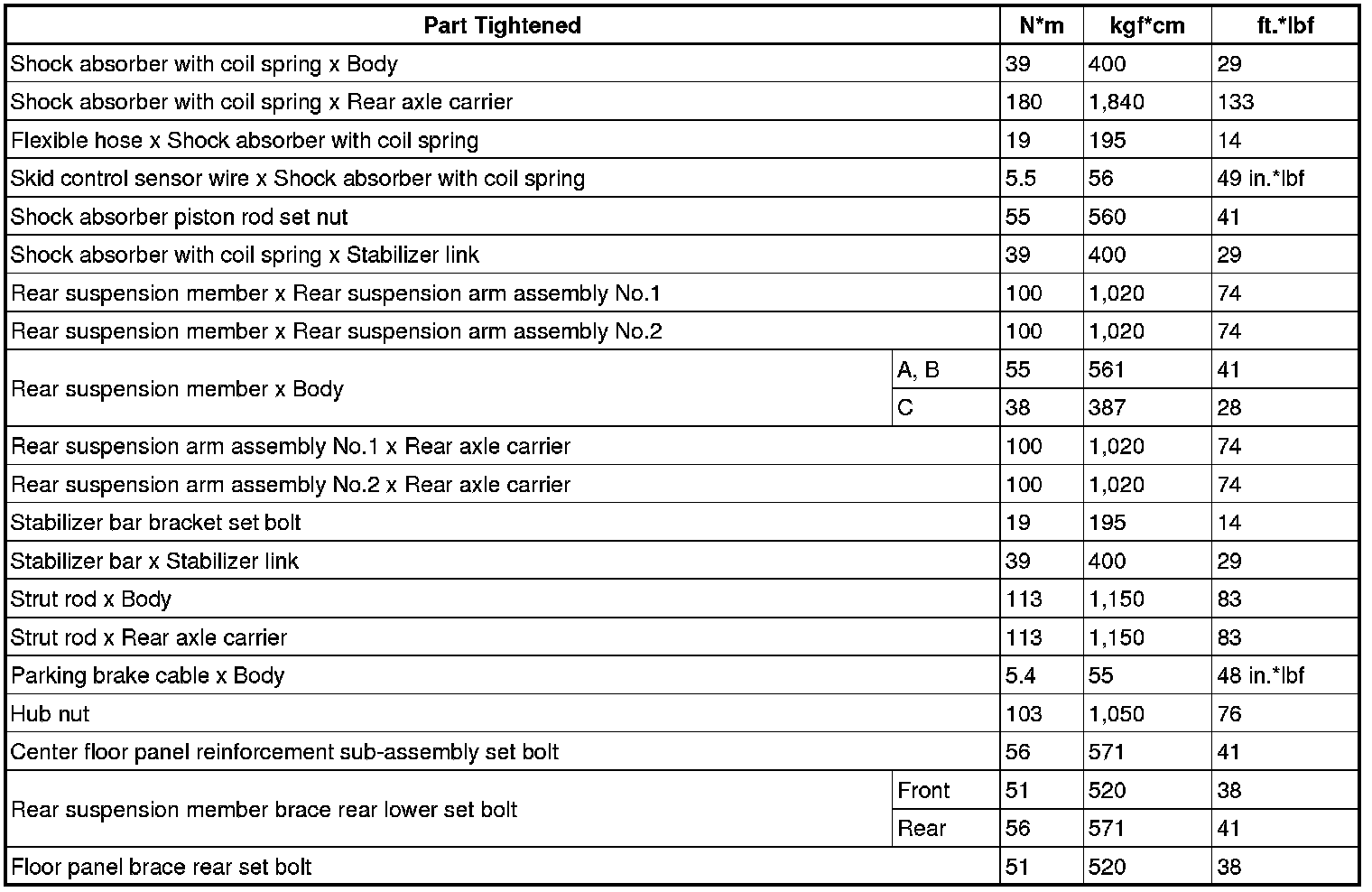

REAR SUSPENSION:
