Body - Front Fender Liner Pin Hold Clip Procedure

T-SB-0073-08

May 27, 2008

Front Fender Liner Pin Hold Clip Removal / Installation Procedures

Service Category
Vehicle Exterior

Section
Exterior Panels/Trim

Market
USA





Applicability

Introduction

To prevent damage to the front fender liner the following procedure should be used when removing and installing the front fender liner pin hold clip.

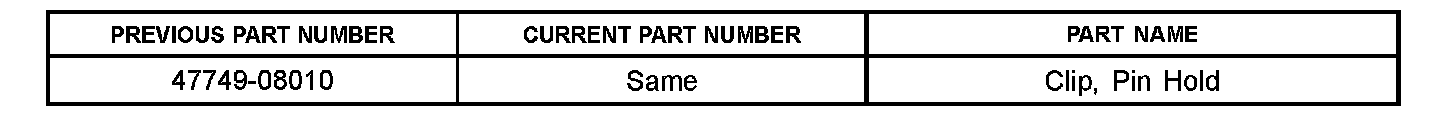

Parts Information





Warranty Information

Removal Procedure

^ Upper and lower pin hold clips are used for 2007-2008 Tundra (w/ Resin Front Bumper)

^ This Procedure is not applicable to 2007-2008 Tundra (w/ Steel Front Bumper) as this type of clip is not used on those vehicles.

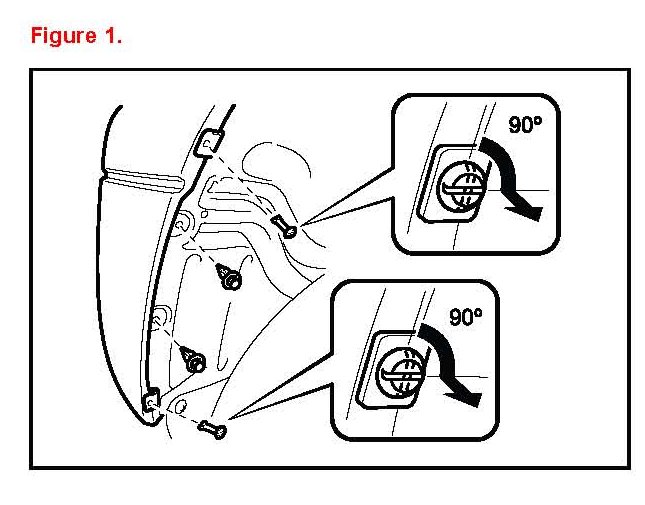

1. Using a screwdriver rotate the pin hold clip 90 degrees so the slot is aligned horizontally.

2. Pull clip out to remove.

Installation Procedure





1. Insert the pin hold clip with the slot aligned vertically.

2. AFTER Installation confirm that the slot is vertical.

NOTE
^ DO NOT rotate the clip after inserting it.

^ Use same procedure for the upper and lower clips (If present) on both the RH and LH side.
