Canada - Body - Front Fender Liner Pin Hold Clip

Bulletin
TSB3022

Issue Date
June 11, 2008

Market
Canada

Title
Front Fender Liner Pin Hold Clip Removal / Installation Procedures

Component
Body

Models
'05 - '08 Avalon, '07 - '09 Camry HV, '07 - '09 Camry, Corolla, Matrix, '04 - '08 Solara, '05 - '08 Tacoma, '07 - '08 Tundra

INTRODUCTION:

To prevent damage to the front fender liner, the following procedure should be used when removing and installing the front fender liner pin hold clip.

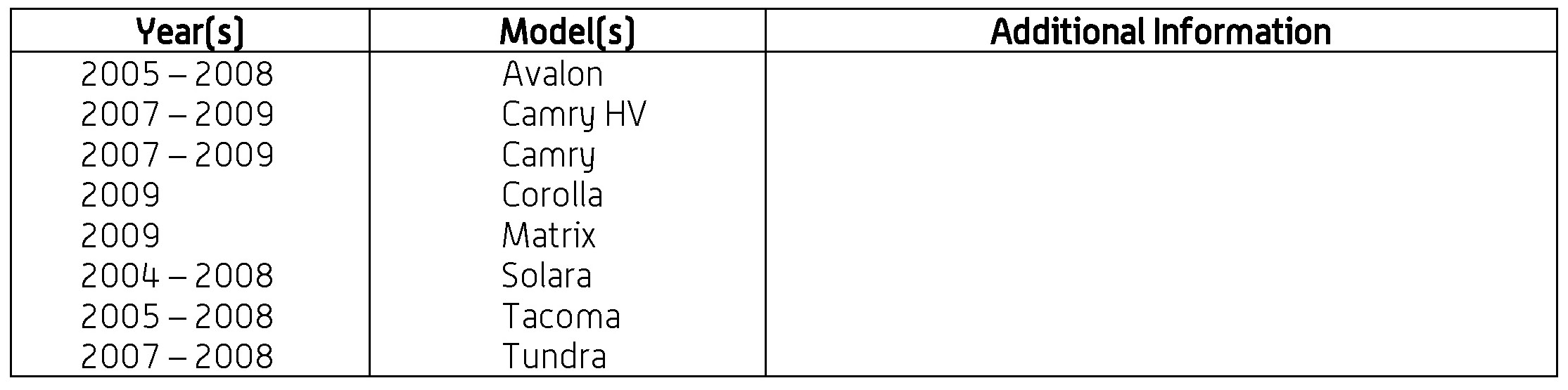

APPLICABLE VEHICLES:

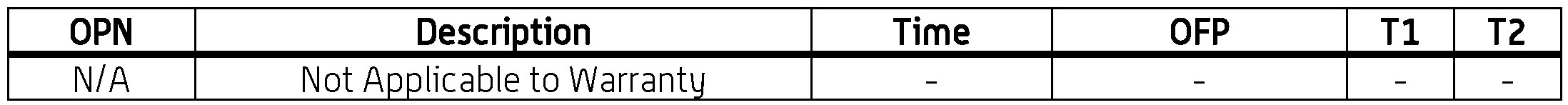

WARRANTY INFORMATION:

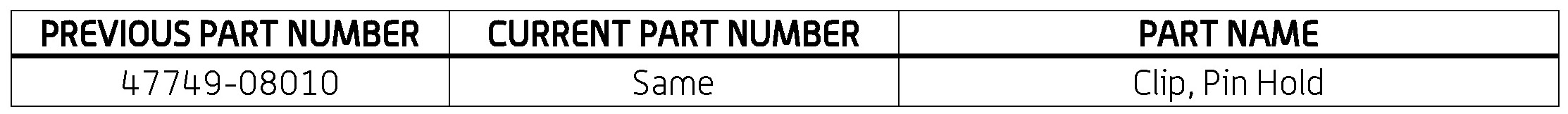

PARTS INFORMATION:

REPAIR PROCEDURE:

NOTE
- Upper and lower pin hold clips are used for 2007-2008 Tundra (w/ Resin Front Bumper)
- This Procedure is not applicable to 2007-2008 Tundra (w/ Steel Front Bumper) as this type of clip is not used on those vehicles.

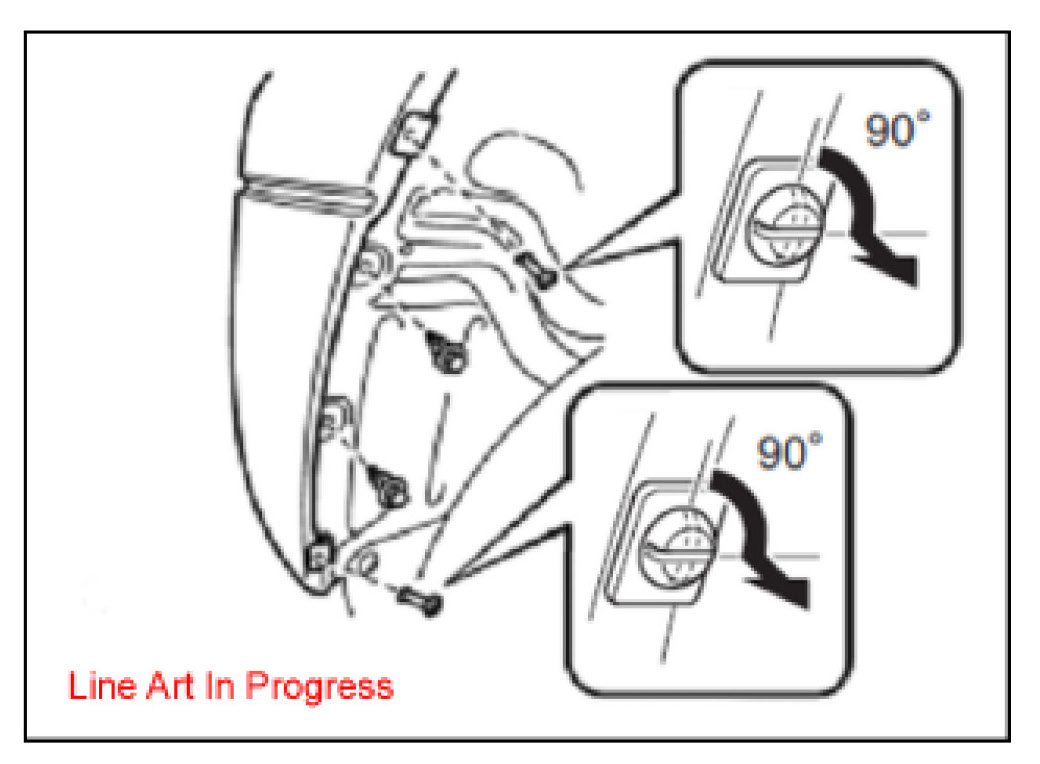

Removal Procedure







1. Using a screwdriver, rotate the pin hold clip 90 degrees, so the slot is aligned horizontally.
2. Pull clip out to remove.

Installation Procedure







1. Insert the pin hold clip with the slot aligned vertically
2. AFTER Installation confirm that the slot is vertical.

NOTE
- DO NOT rotate the clip after inserting it.
- Use same procedure for the upper and lower clips (If present) on both the RH and LH side

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
