Canada - Moonroof - Initialization Procedure

Bulletin
2846

Issue Date
September 10, 2007

Market
Canada

Title:
INITIALIZATION OF MOON ROOF DURING PDS

Component
GENERAL INFORMATION

Models
'08 Solara

INTRODUCTION:
The moon roof on 2008 model year Solara vehicles must be initialized after installing the DCC fuse during Pre-Delivery Service (PDS).

The installation of the DCC fuse, and the initialization procedure shown below, will enable the operation of the one-touch slide open and close, "one-touch tilt up" and down, and "jam protection" functions of the sliding roof.

NOTE:
Any time the battery terminal has been disconnected, the moon roof must be re-initialized.

APPLICABLE VEHICLES:
- 2008 model year Solara vehicles.







INITIALIZATION PROCEDURE:
1. Turn the ignition switch to the "ON" position.

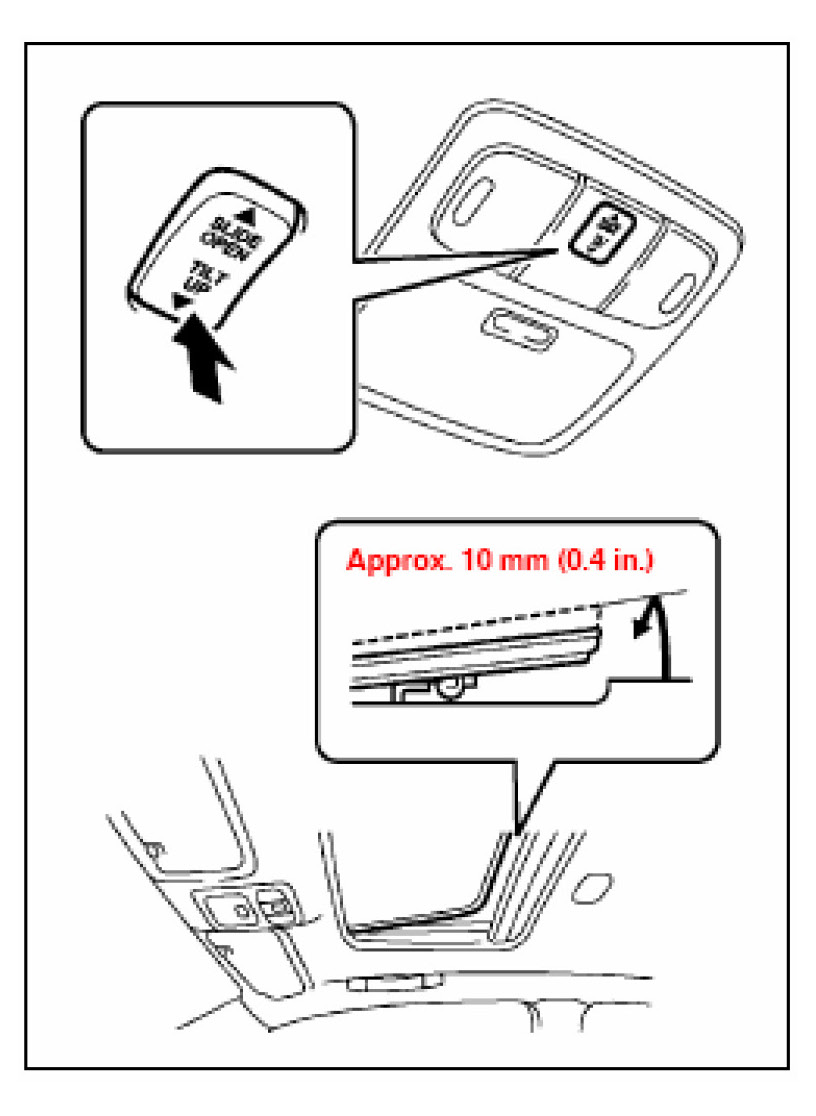

2. Push and hold the moon roof switch to the "TILT UP" side until the moon roof tilts all the way up and then tilts down slightly (approximately 10 mm [0.4 in.]) at the rear.
3. Check for proper operation of the "one-touch slide open and close" and "one-touch tilt up and down" functions by pushing the switch briefly to the "SLIDE OPEN" and "TILT UP" positions.

NOTE:
Jam protection function becomes effective through the above initialization procedure.
