Interior - Floor Mat Installation/Precautions

PRE-DELIVERY SERVICE
PD137-07

Title:
FLOOR MAT INSTALLATION
DURING PDS

Models:
'08 Toyota

September 21, 2007

Introduction

2008 model year Toyota vehicles are equipped with floor mat retaining clips to help ensure that the floor mats stay in the correct position. Attach the floor mat to the vehicle carpet using the floor mat retaining clips during Pre-Delivery Service (PDS).





CAUTION

Applicable Vehicles

^ 2008 model year Toyota vehicles.

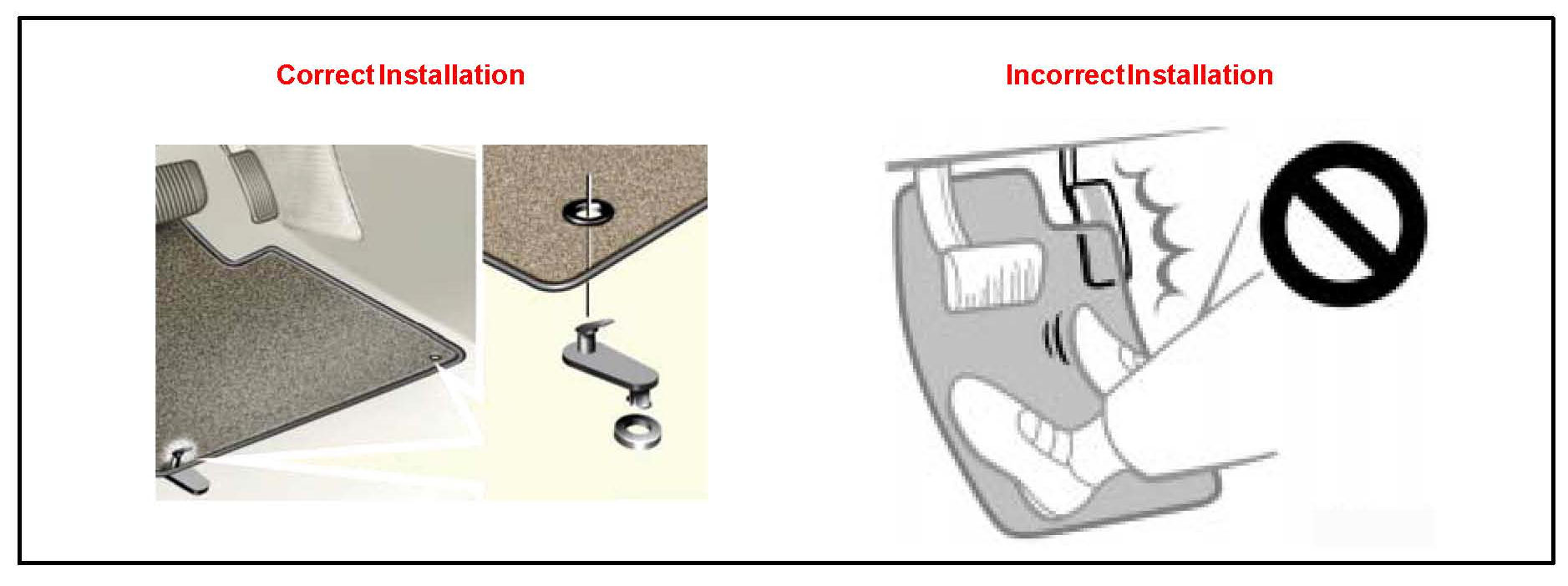

Installation Procedure





Attach the floor mat to the vehicle carpet using the clips. Secure the mat by inserting the retaining clips through the grommet holes.





Warranty Information
