Bulletin
TSB3028

Issue Date
June 13, 2008

Market
Canada

Title
Noise from Auxiliary Port with External Device with Navigation System

Component
Body Electrical

Models
'08 - '09 Camry & Camry HV, '08 Highlander & Highlander HV, '08 Sequoia, '08 Solara, '07 - '08 Tundra

INTRODUCTION:

Some customers may notice a noise in the auxiliary mode of their audio system when using an MP3 player or other external audio source connected to the 12V power port on vehicles equipped with the Toyota Navigation System. An improved auxiliary port and in-line filter has been developed to improve this condition. Use the repair procedure below to install the new in-line filter and auxiliary port.






APPLICABLE VEHICLES:

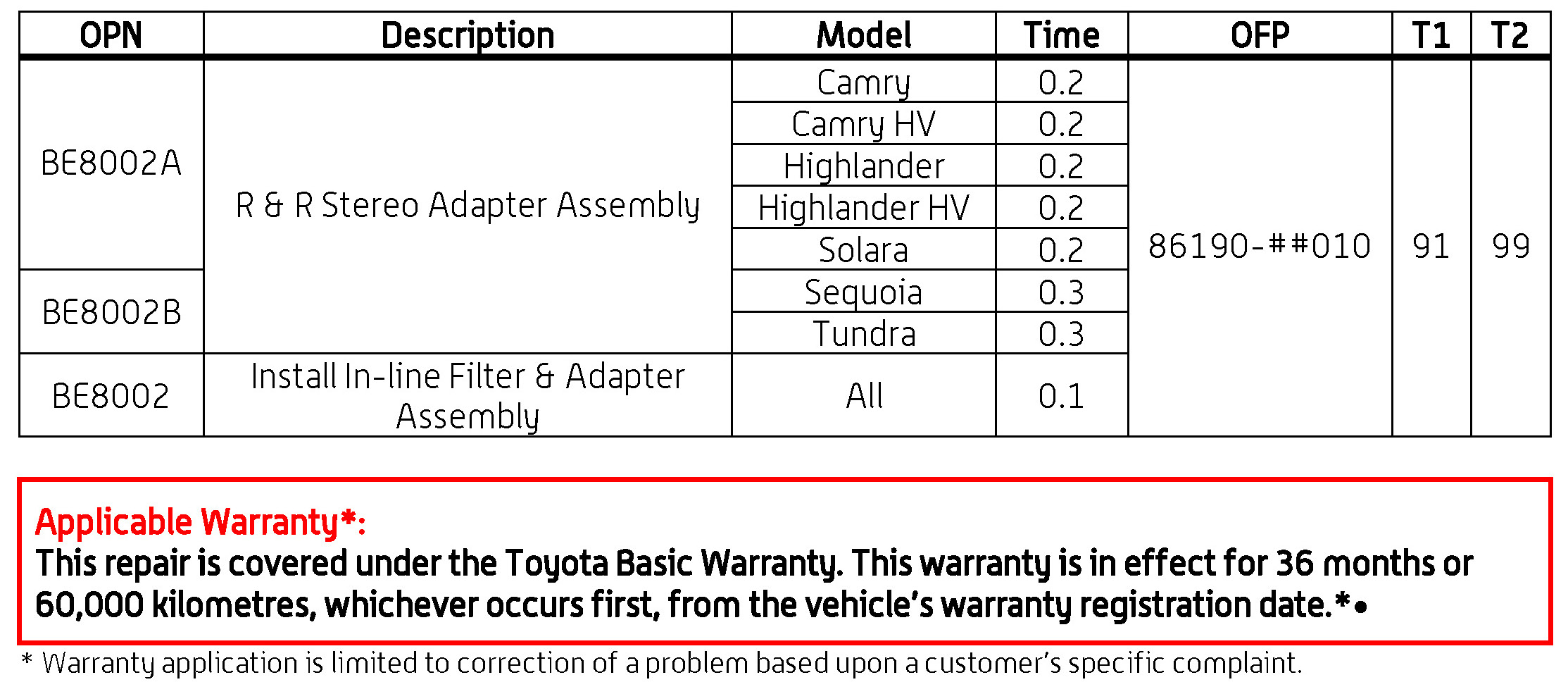

WARRANTY INFORMATION:

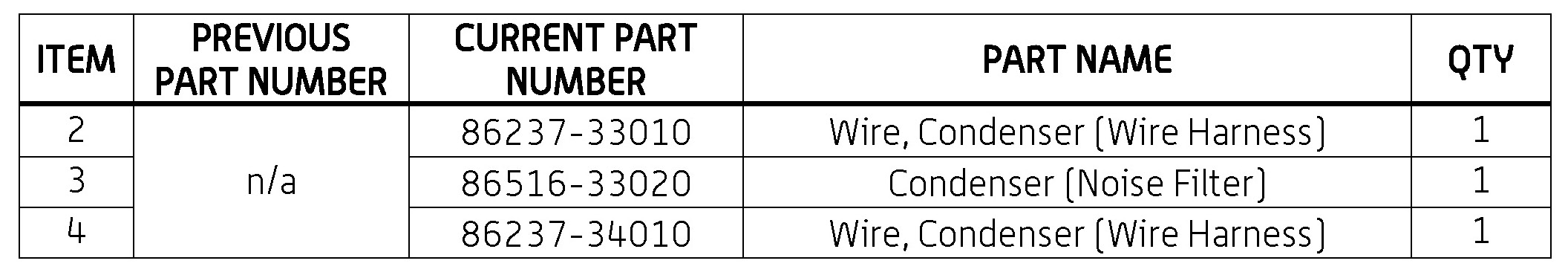

PARTS INFORMATION:

NOTE
Items 2, 3, and 4 are needed for all vehicles. Item 1 in Figure 1, Adapter Assembly, Stereo (Mini Jack), does not need to be replaced.






REQUIRED SSTS:

NOTE:
Additional SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.

REPAIR PROCEDURE:

1. Remove the existing auxiliary port terminal from the vehicle.

Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Camry / Camry HV / Solara
- Year: 2008 or 2009
- Service Category: Audio/Visual/Telematics
- Section: Audio/Video
- Keyword: Audio/Visual: Audio Terminal: Removal

- Division: Toyota
- Model: Highlander / Higlander HV / Sequoia
- Year: 2008
- Service Category: Audio/Visual/Telematics
- Section: Audio/Video
- Keyword: Audio/Visual: Stereo Jack Adapter Assembly: Removal

- Division: Toyota
- Model: Tundra
- Year: 2007 or 2008
- Service Category: Audio/Visual/Telematics
- Section: Audio/Video
- Keyword: Audio/Visual: Stereo Jack Adapter Assembly (for Floor Shift Type): Removal
- Keyword: Audio/Visual: Stereo Jack Adapter Assembly (for Column Shift Type): Removal

2. Install wire harness, noise filter, and condenser wire harness.
A. Connect the vehicle wire connector (4P) into the additional wire condenser (wire harness), part number 86237-34010.
B. Plug into condenser (noise filter).
C. Connect wire, condenser (wire harness), part number 86237-33010, to the other side of the noise filter.







D. Secure the filter to the vehicle wire harness using wire ties (see example illustration shown in Figure 2).
E. Reinstall the auxiliary port.

3. Reassemble the vehicle in reverse order of disassembly.
4. Confirm there is no noise from the auxiliary port.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
