Seats: Specifications








SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

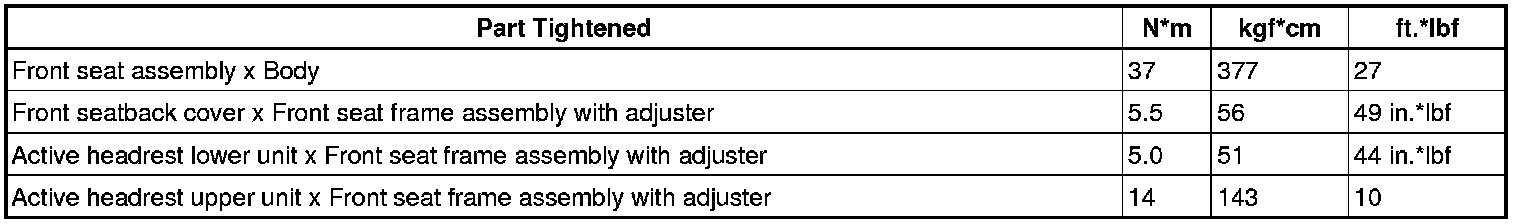

FRONT SEAT ASSEMBLY (w/ Seatback Board)

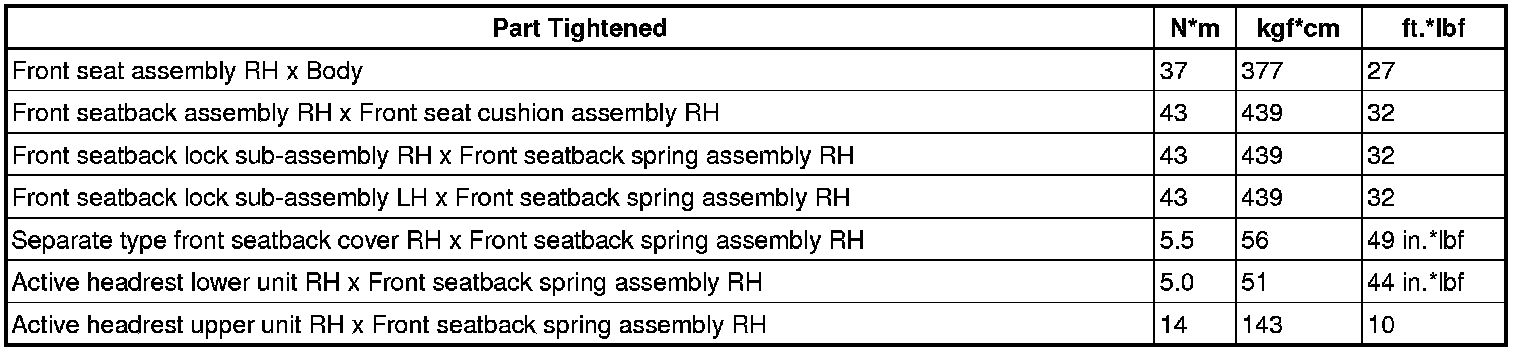

FRONT SEAT ASSEMBLY (w/o Seatback Board)





REAR SEAT ASSEMBLY
