Clutch Switch: Testing and Inspection








CRUISE CONTROL: CLUTCH SWITCH: INSPECTION

INSPECTION

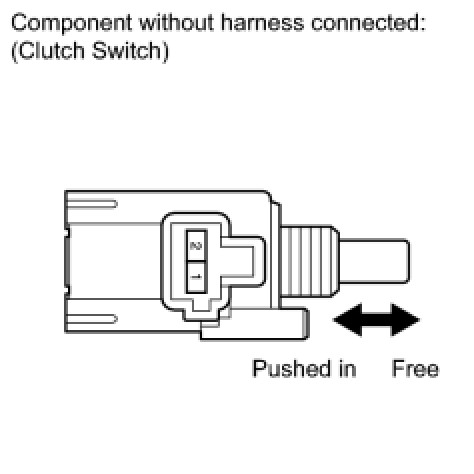

1. INSPECT CLUTCH SWITCH (CRUISE CONTROL CANCEL SWITCH ASSEMBLY)

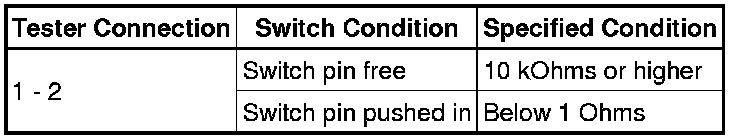

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the clutch switch.
