Pinout Values and Diagnostic Parameters

CRUISE CONTROL: CRUISE CONTROL SYSTEM: TERMINALS OF ECM

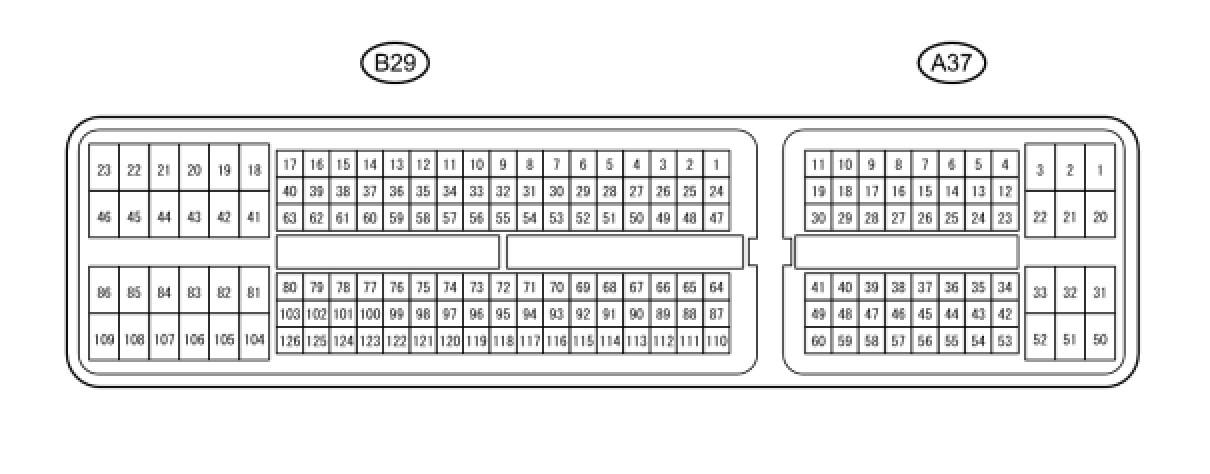

TERMINALS OF ECM

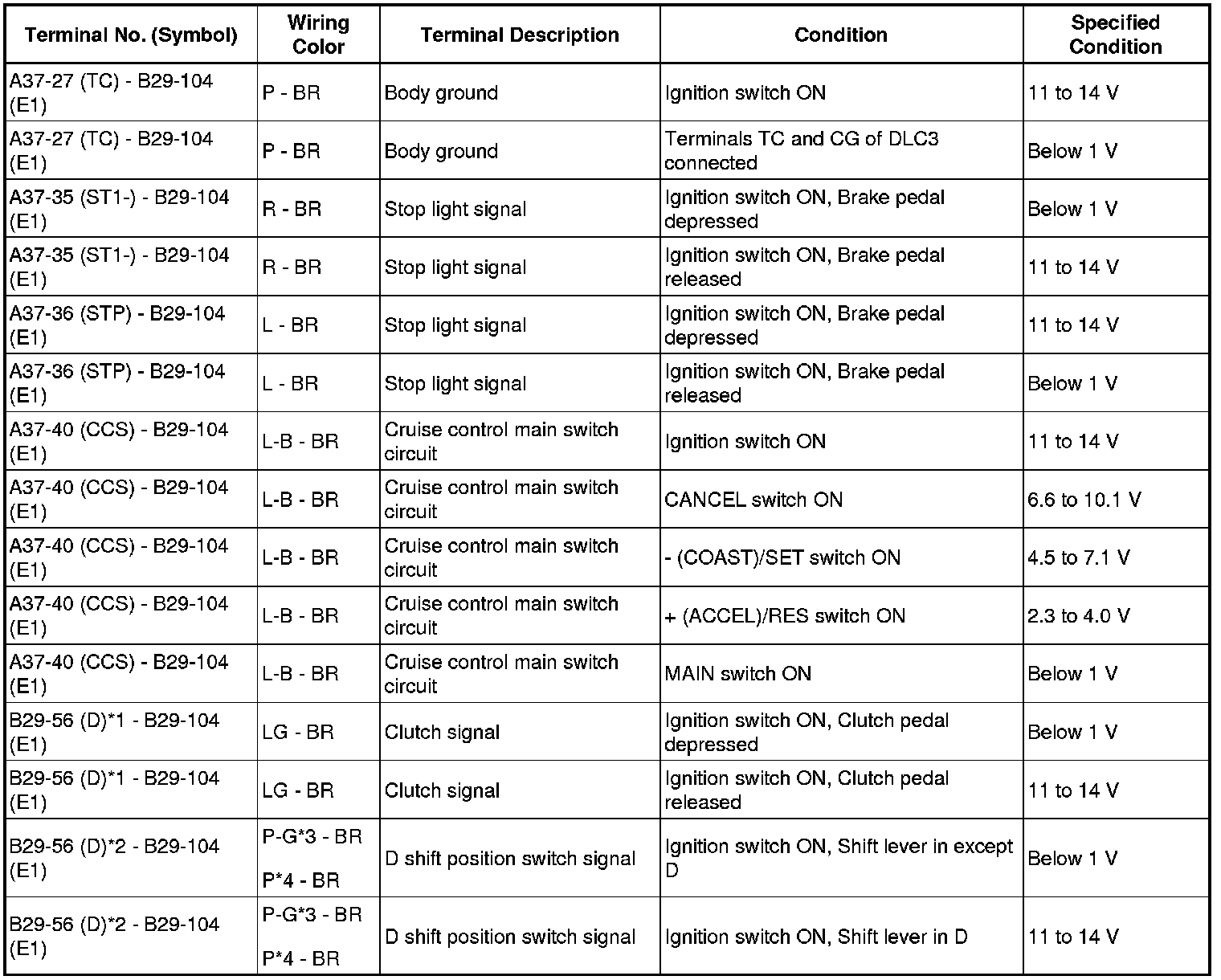

1. CHECK ECM









- *1: for M/T
- *2: for A/T
- *3: for 2AZ-FE (2WD)
- *4: for 2ZR-FE, 2AZ-FE (4WD)
