Home >> Toyota >> 2009 >> Matrix AWD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> 2C (Instrument Panel Wire and Driver Side J/B Assembly (Cowl Side Left))

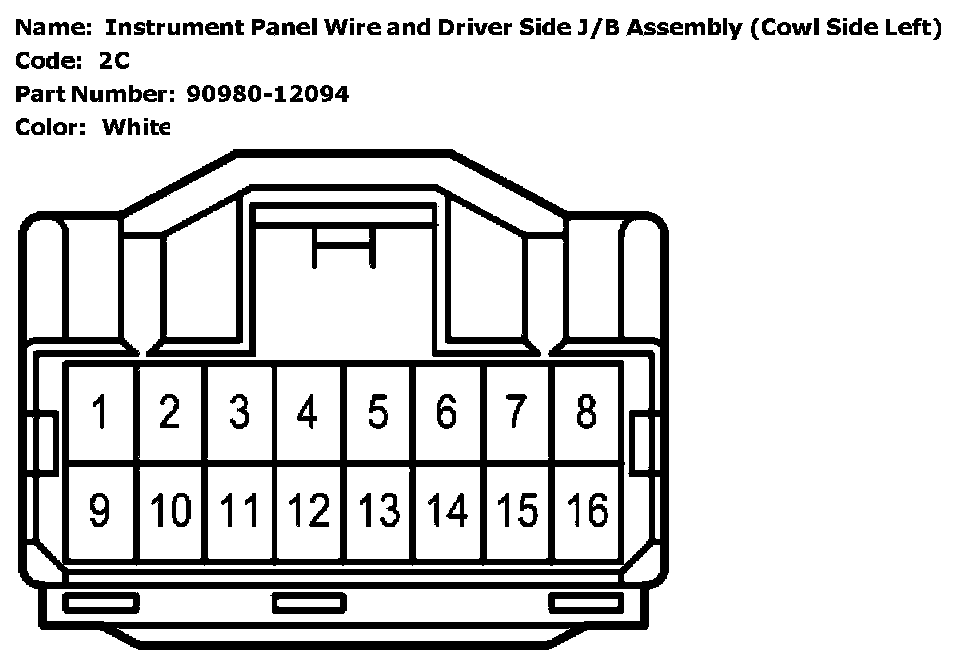

2C (Instrument Panel Wire and Driver Side J/B Assembly (Cowl Side Left))
