Blower Motor Resistor: Testing and Inspection








HEATING / AIR CONDITIONING: BLOWER RESISTOR: INSPECTION

INSPECTION

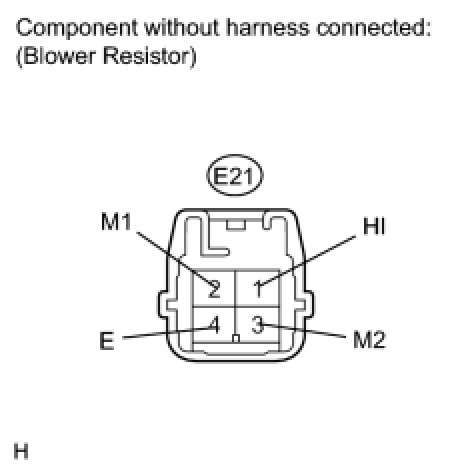

1. INSPECT BLOWER RESISTOR





(a) Disconnect the connector from the blower resistor.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the resistance is not as specified, replace the blower resistor.
