Blower Motor: Testing and Inspection








HEATING / AIR CONDITIONING: FRONT BLOWER MOTOR: INSPECTION

INSPECTION

1. INSPECT BLOWER MOTOR





(a) Disconnect the connector from the blower motor.

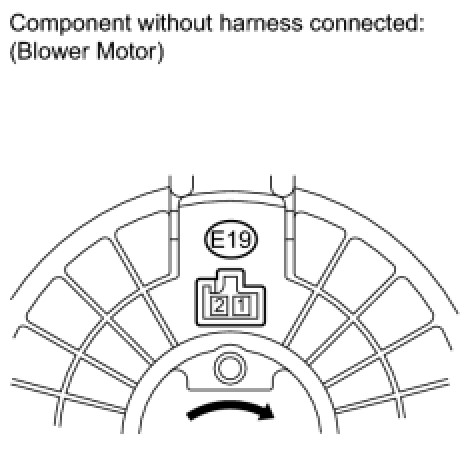

(b) Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead from the battery to terminal 1, and check that the motor operates.
OK:
The blower motor operates smoothly.
If the result is not as specified, replace the blower motor.
