Housing Assembly HVAC: Testing and Inspection








HEATING / AIR CONDITIONING: PTC HEATER ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT PTC HEATER

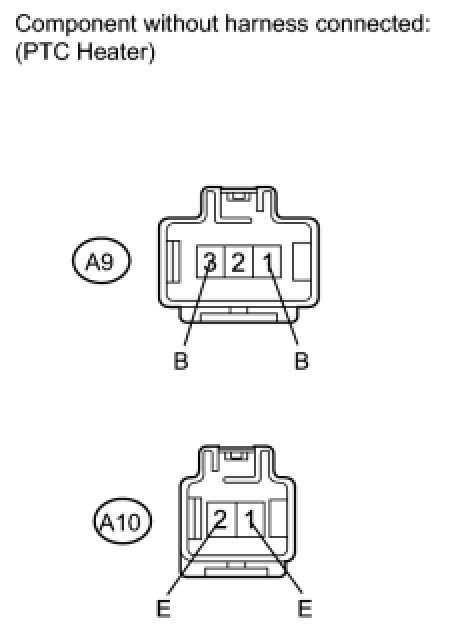

(a) Disconnect the connector from the PTC heater.

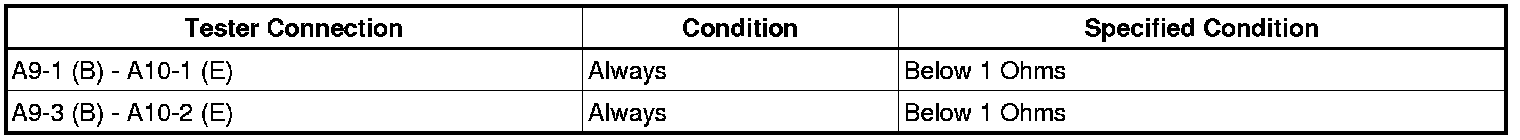

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the resistance is not as specified, replace the PTC heater.
