Meter / Gauge System

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM:

SYSTEM DIAGRAM

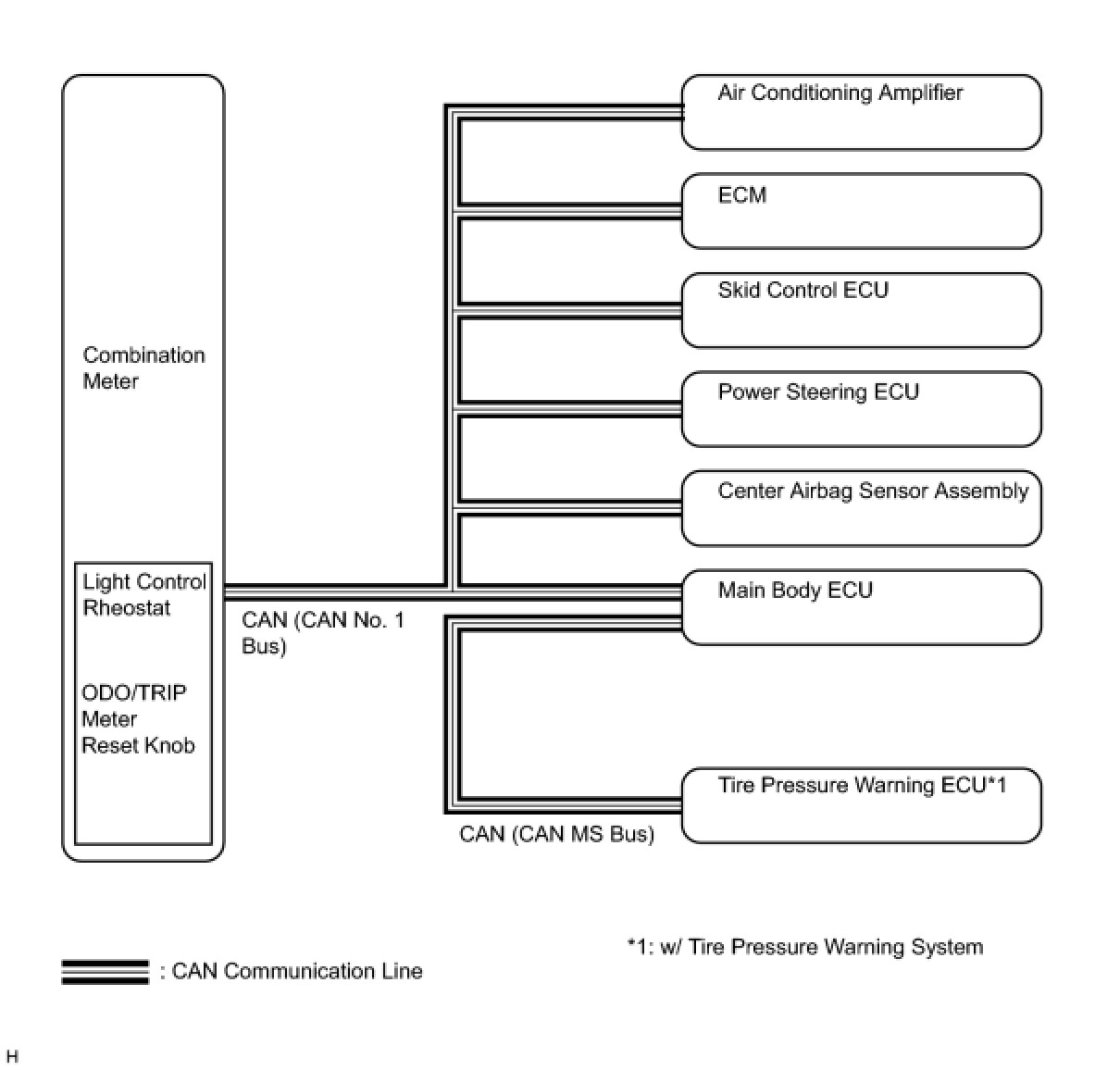

1. CAN SIGNAL





2. DIRECT LINE SIGNAL

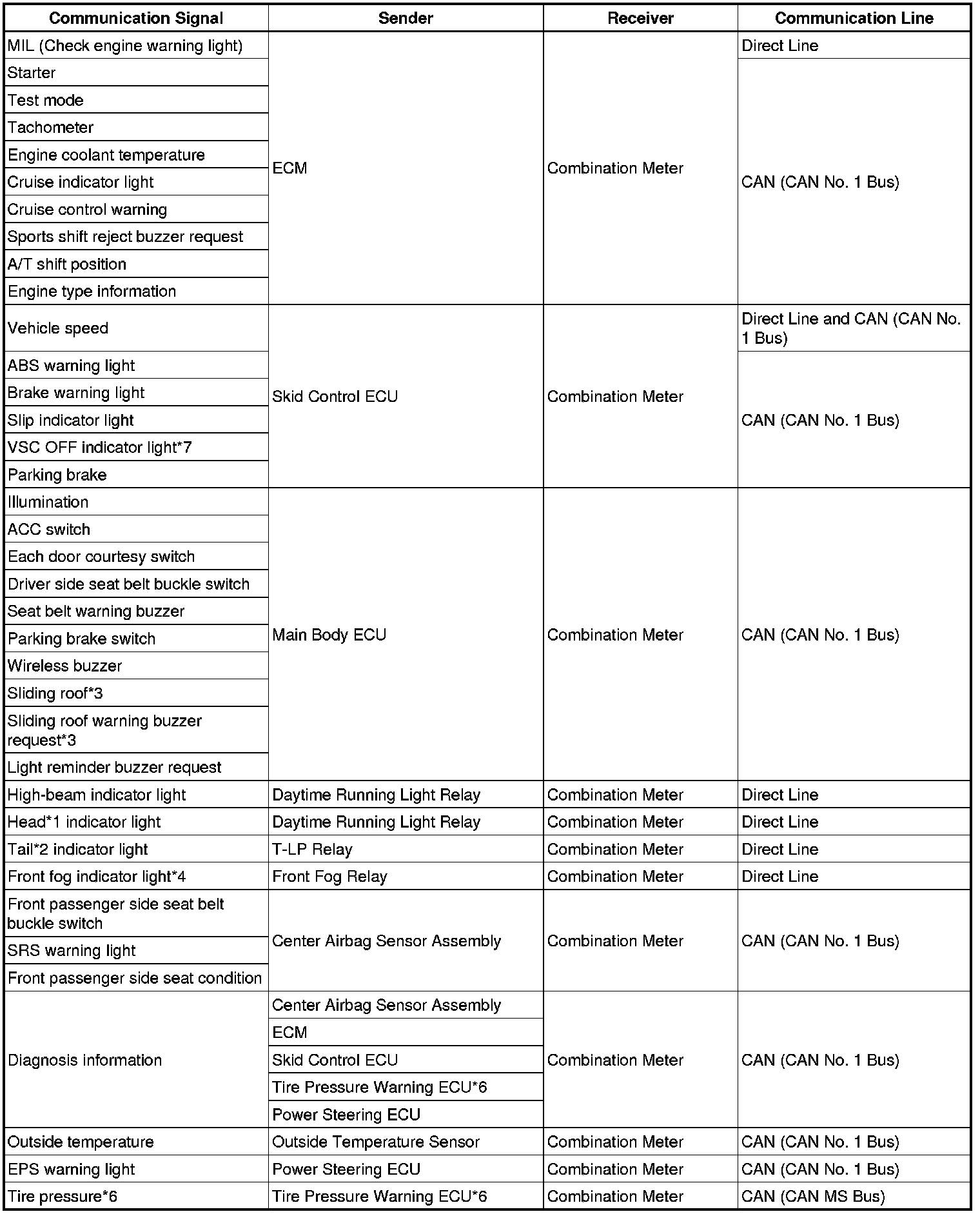

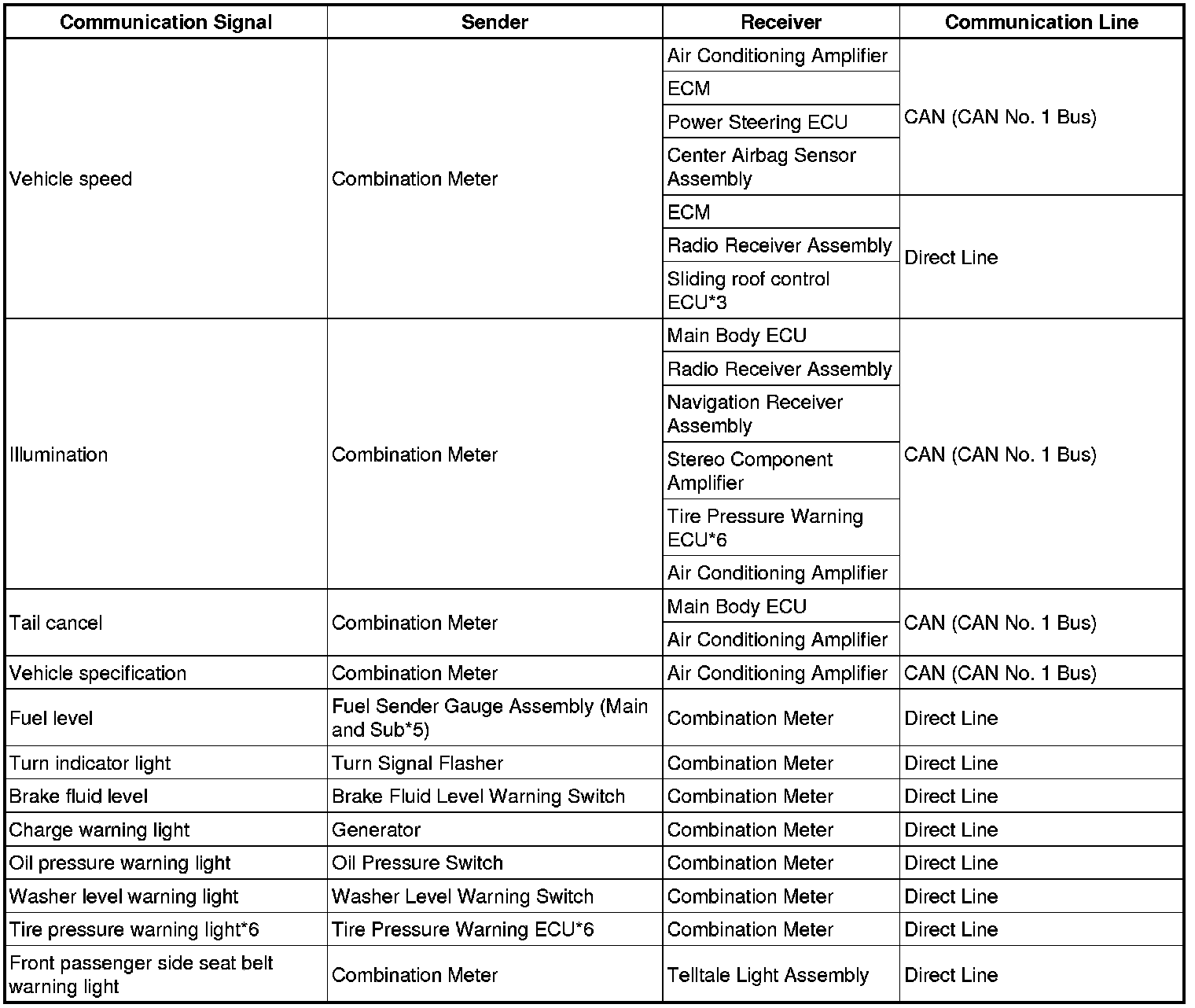

3. INPUT AND OUTPUT SIGNALS OF THE COMBINATION METER










- *1: for U.S.A.
- *2: except for U.S.A.
- *3: w/ Sliding Roof
- *4: w/ Front Fog Light
- *5: for 4WD
- *6: w/ Tire Pressure Warning System
- *7: w/ VSC

SYSTEM DESCRIPTION

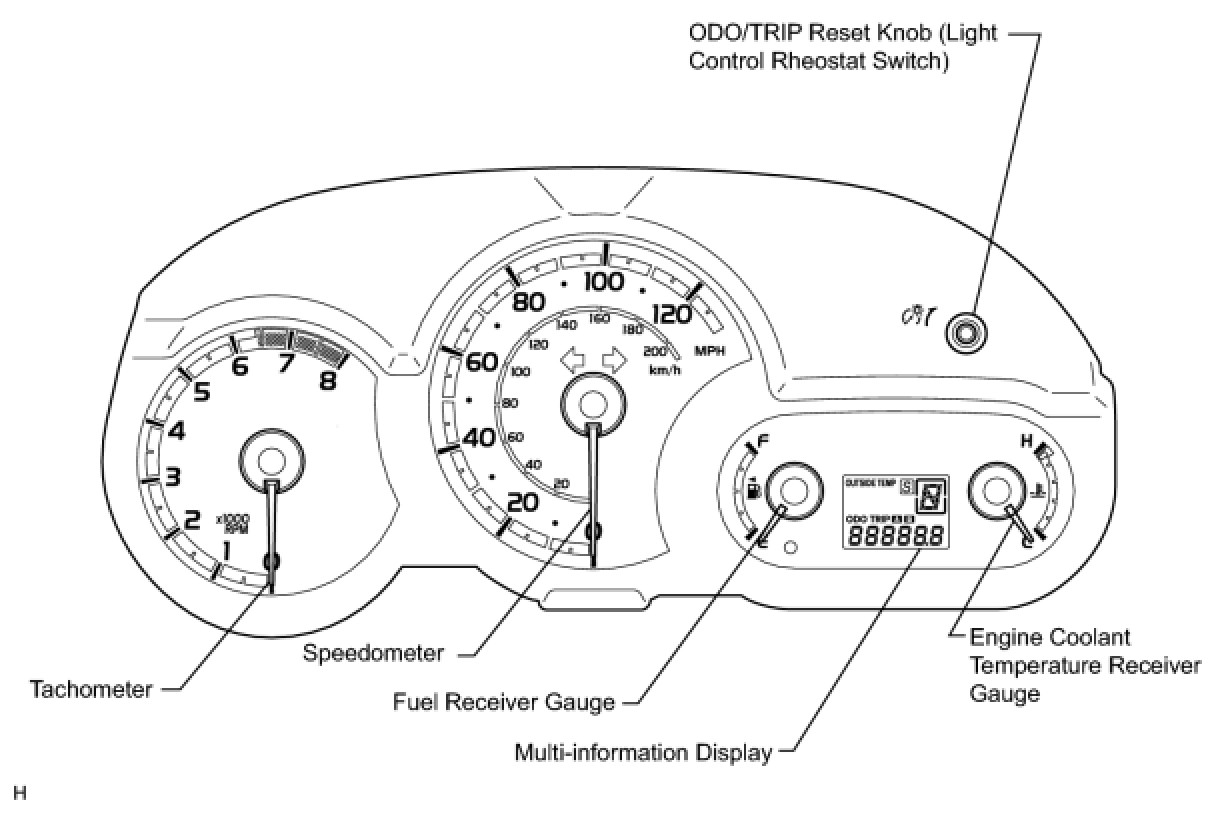

1. OUTLINE OF THE COMBINATION METER





Meter Gauge





Warning/Indicator





- *1: for 4WD
- *2: for U.S.A.
- *3: except for U.S.A.
- *4: w/ Front Fog Light
- *5: w/ Tire Pressure Warning System
- *6: w/ VSC

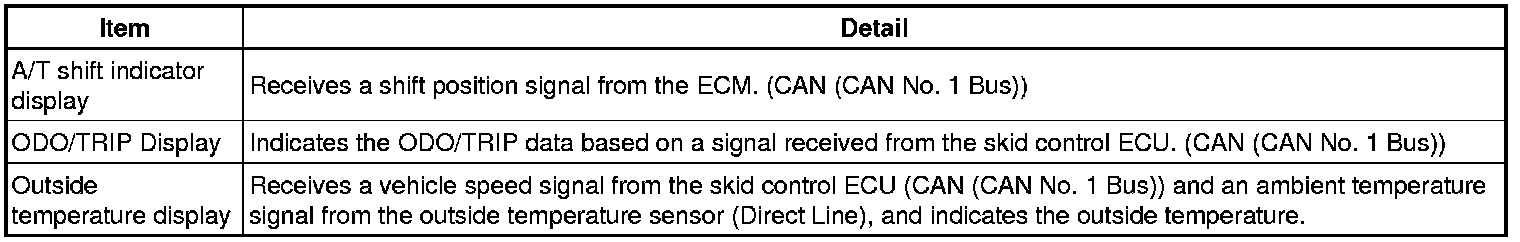

2. MULTI-INFORMATION DISPLAY

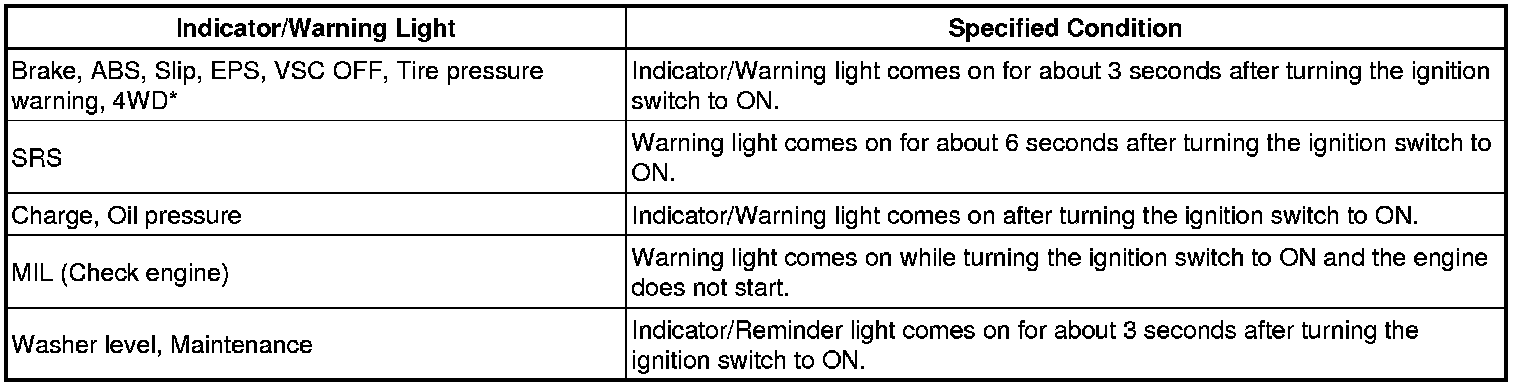

3. LED INITIAL CHECK
(a) Check the illumination function of the warning, indicator, or reminder light listed below when turning the ignition switch to ON.
OK:





- *: for 4WD
