Parking Brake Warning Switch: Testing and Inspection








PARKING BRAKE: PARKING BRAKE SWITCH: INSPECTION

INSPECTION

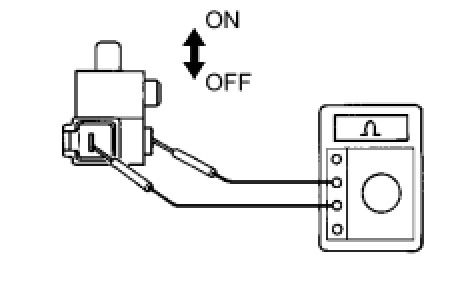

1. INSPECT PARKING BRAKE SWITCH ASSEMBLY





(a) Measure the resistance according to the value(s) in the table below.

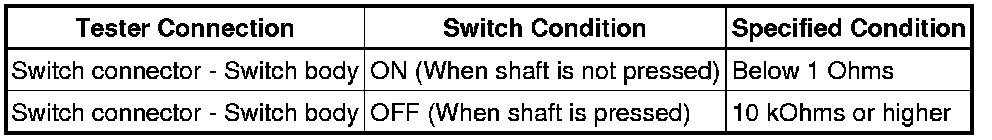

Standard Resistance:





If the resistance is not as specified, replace the parking brake switch assembly.
