Computers and Control Systems: Description and Operation








2AZ-FE ENGINE CONTROL: SFI SYSTEM:

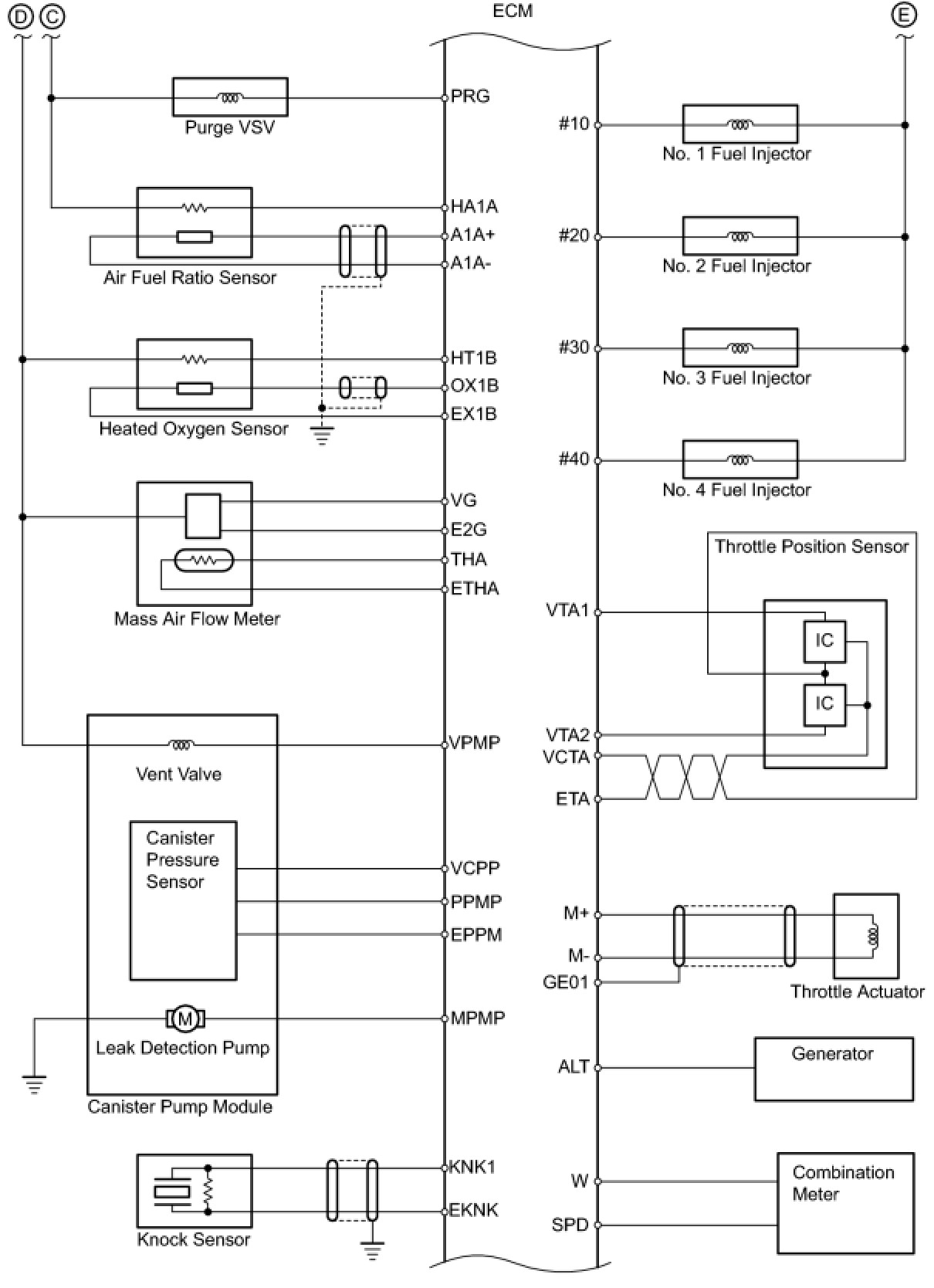

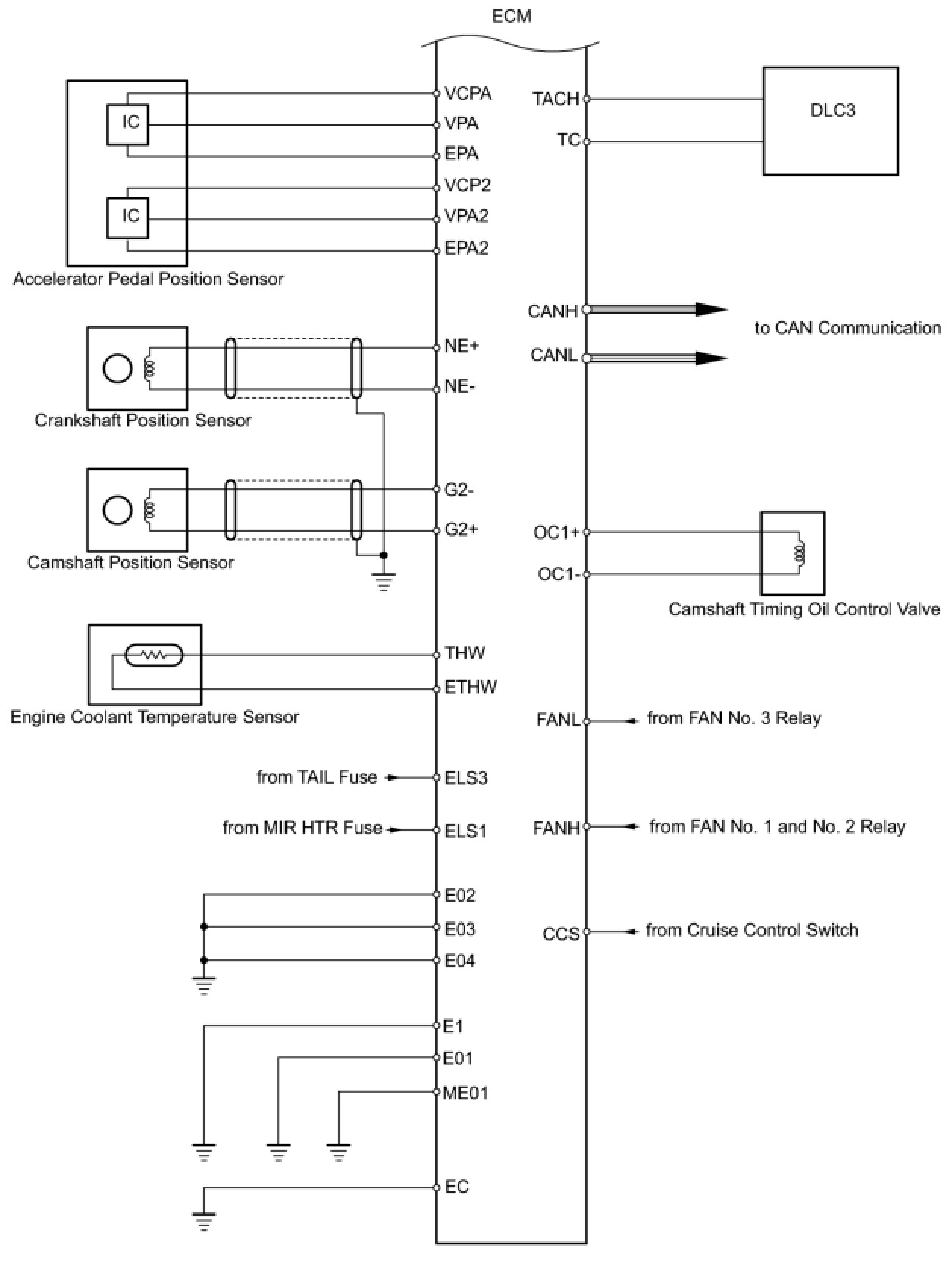

SYSTEM DIAGRAM
