Transmission Control Systems: Locations








U140F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION

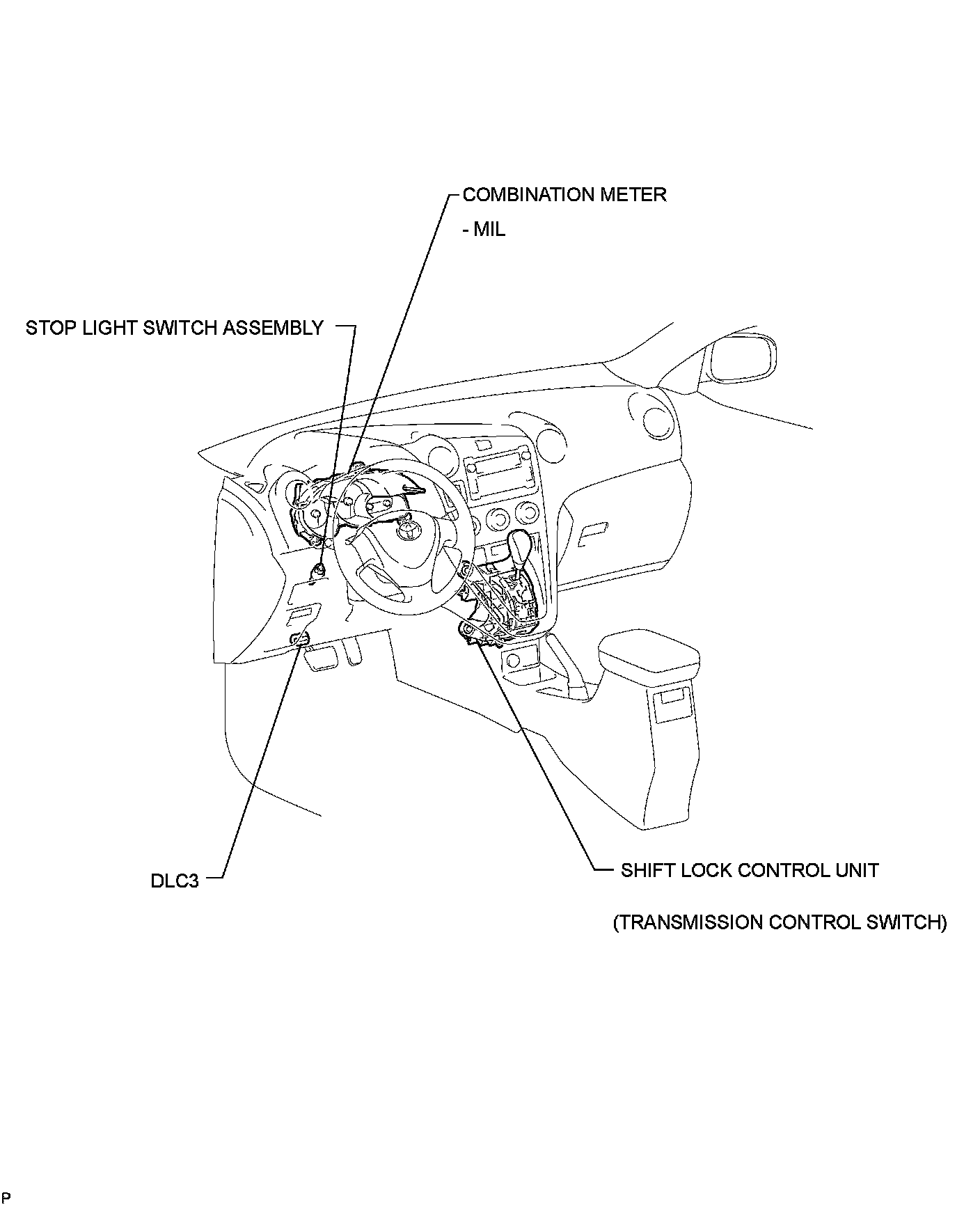

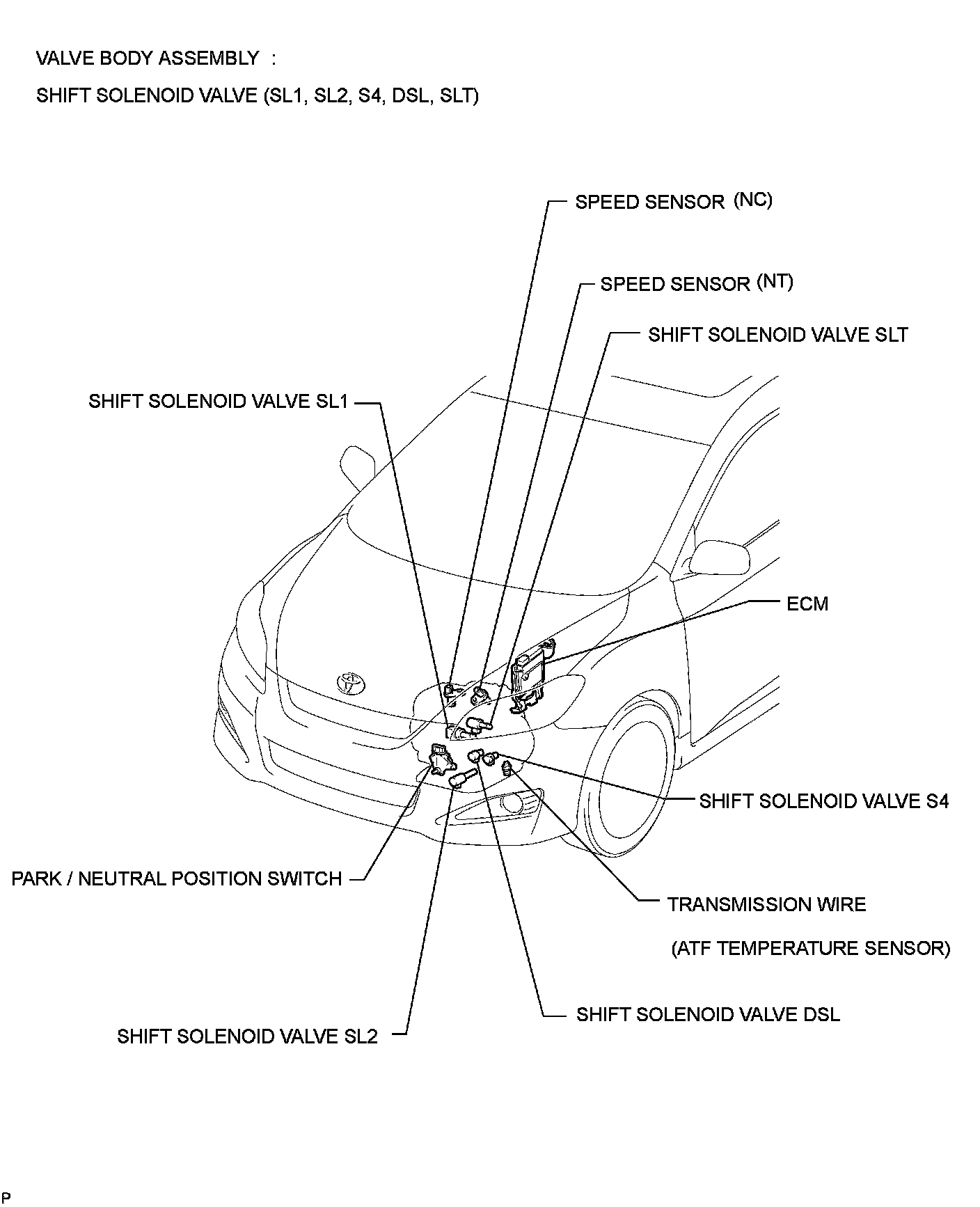

PARTS LOCATION

ILLUSTRATION
