Wheels and Tires








SPECIFICATIONS: TIRE / WHEEL:

SERVICE DATA

Cold tire inflation pressure:

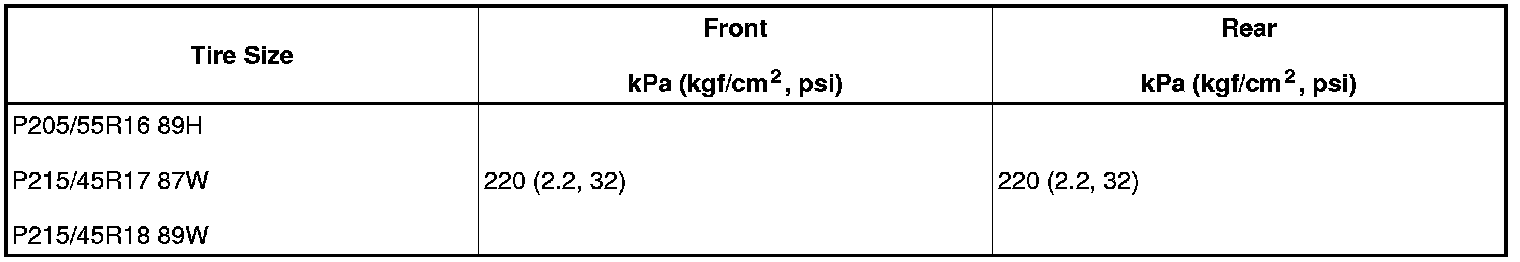

for 2WD models:

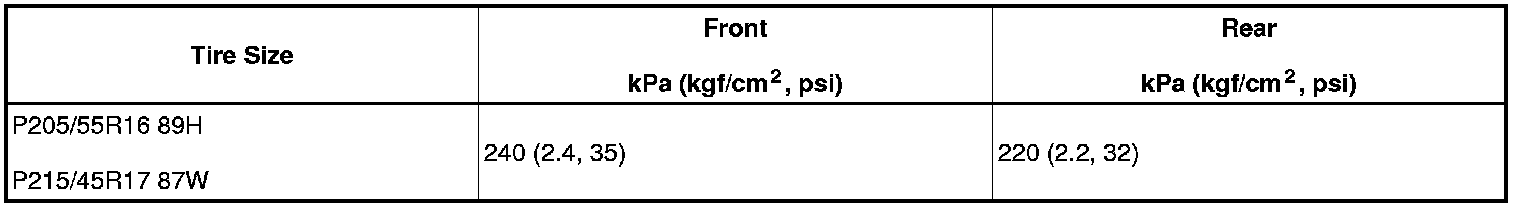

for 4WD models:
