Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2009
>>
Matrix AWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Locations
Steering: Locations

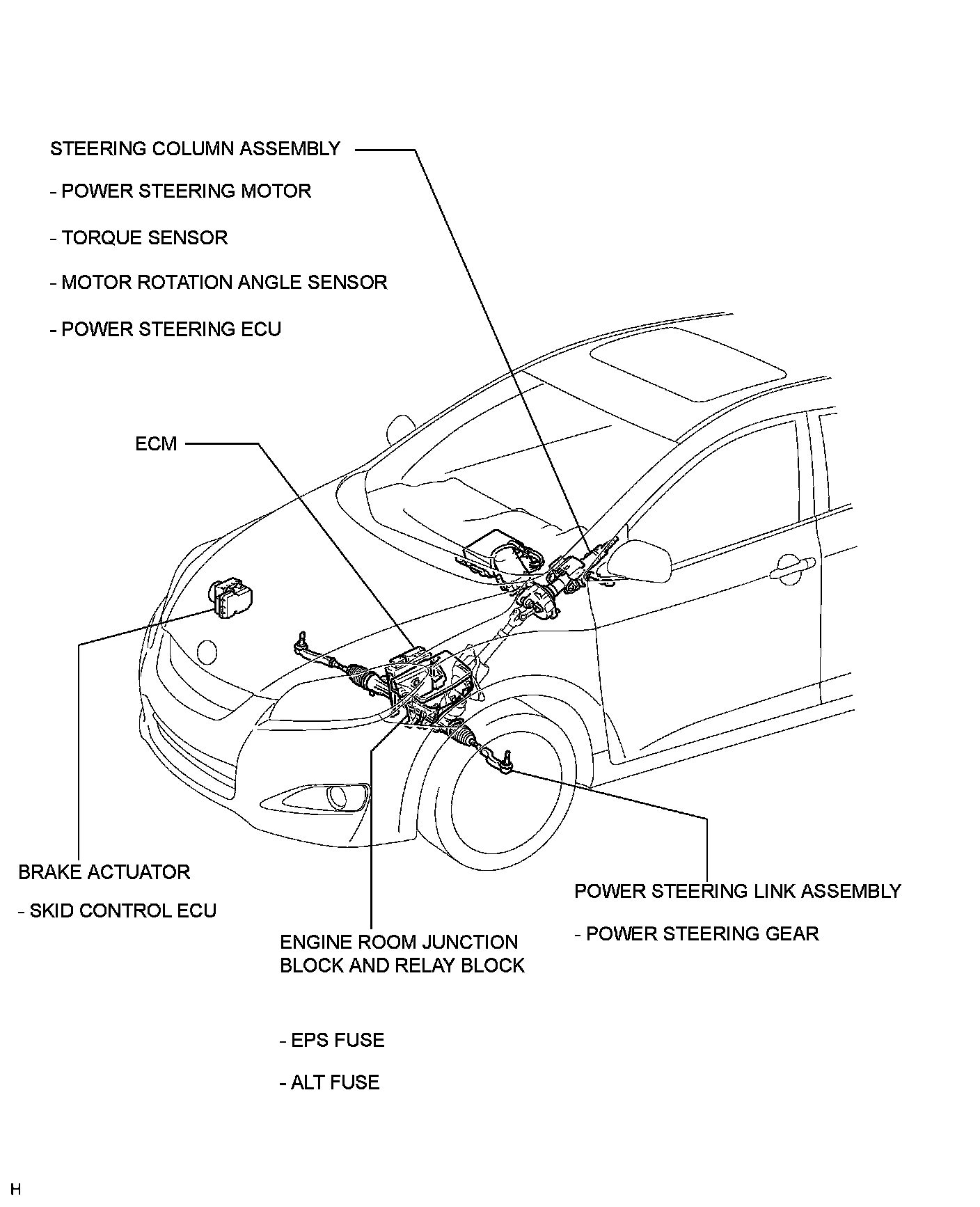

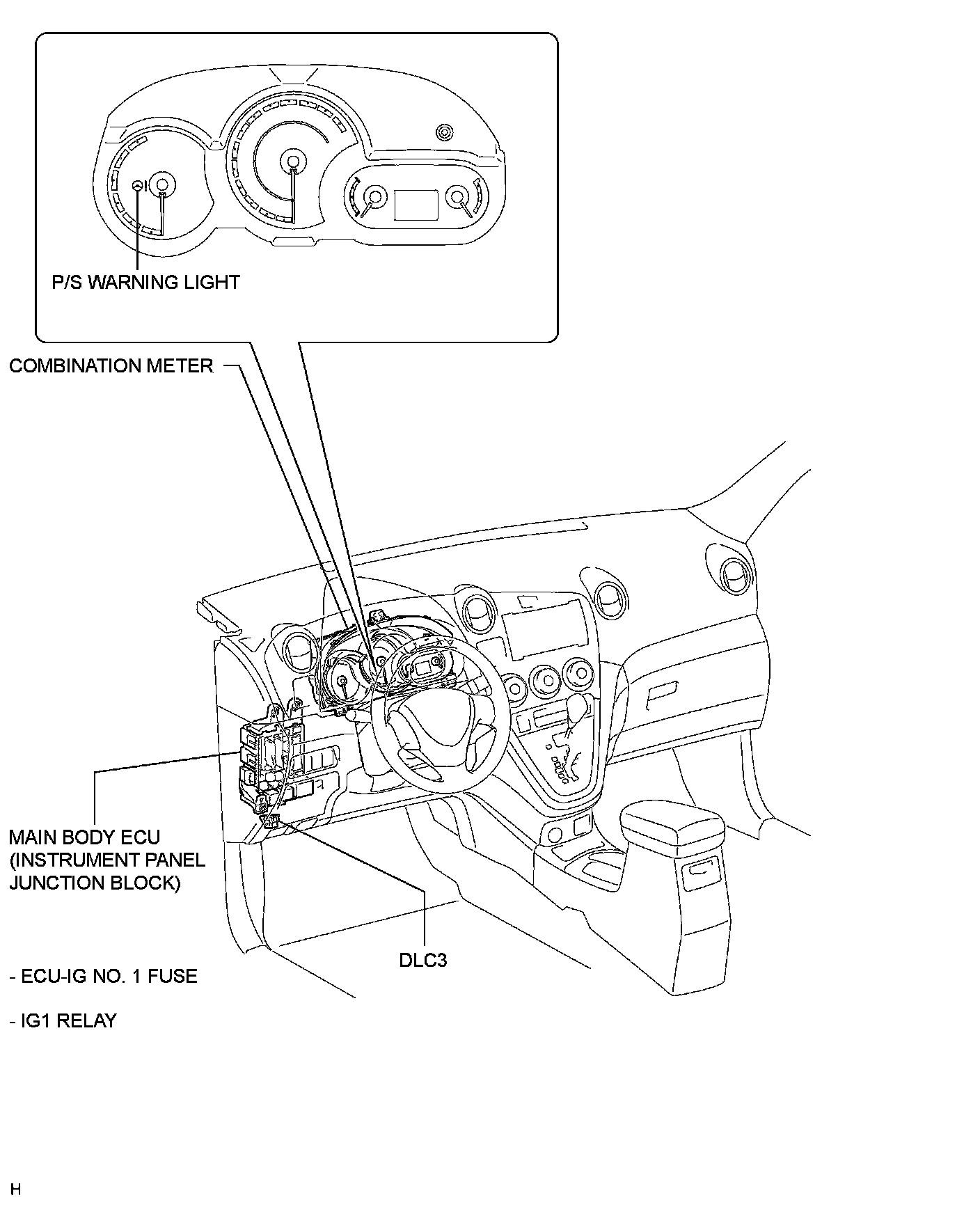

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
