Canada - Fuel System - Throttle Body Update

Bulletin
TSB3407

Issue Date
June 25, 2010

Market
Canada

Title
2AZ-FE & 2AZ-FXE THROTTLE BODY

Component
ENGINE MECHANICAL

Models
All Applicable Toyota Models

INTRODUCTION:
The purpose of this TSB is to provide updated throttle body part number information for certain vehicles equipped with the 2AZ-FE and 2AZ-FXE engine. The drain pipe has been eliminated on throttle body service parts. Please use the information below when replacing the throttle body assembly.

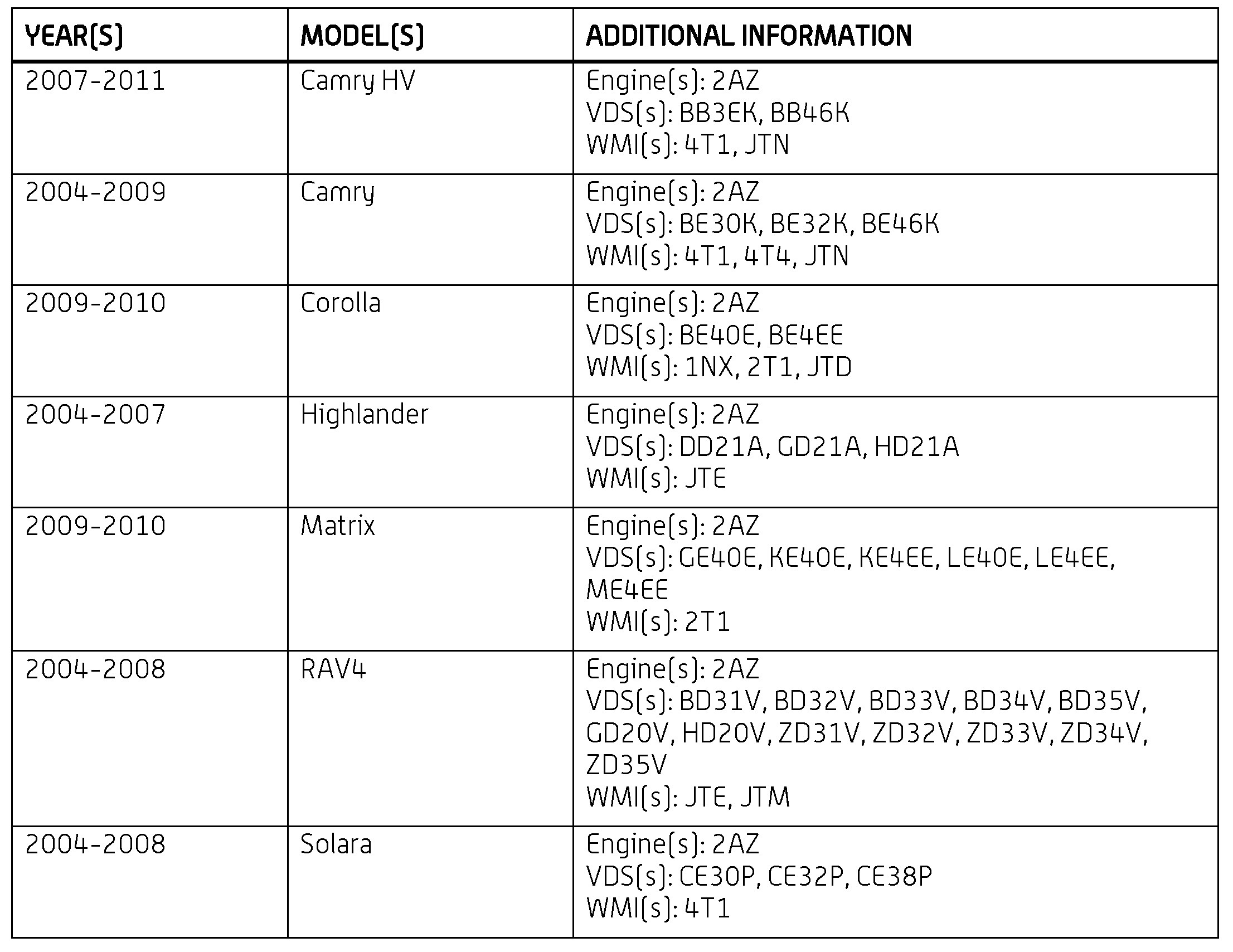

APPLICABILITY:

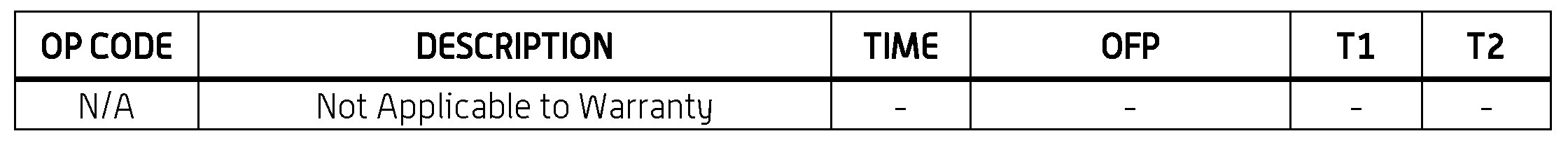

WARRANTY INFORMATION:






PARTS INFORMATION:

REPAIR PROCEDURE:

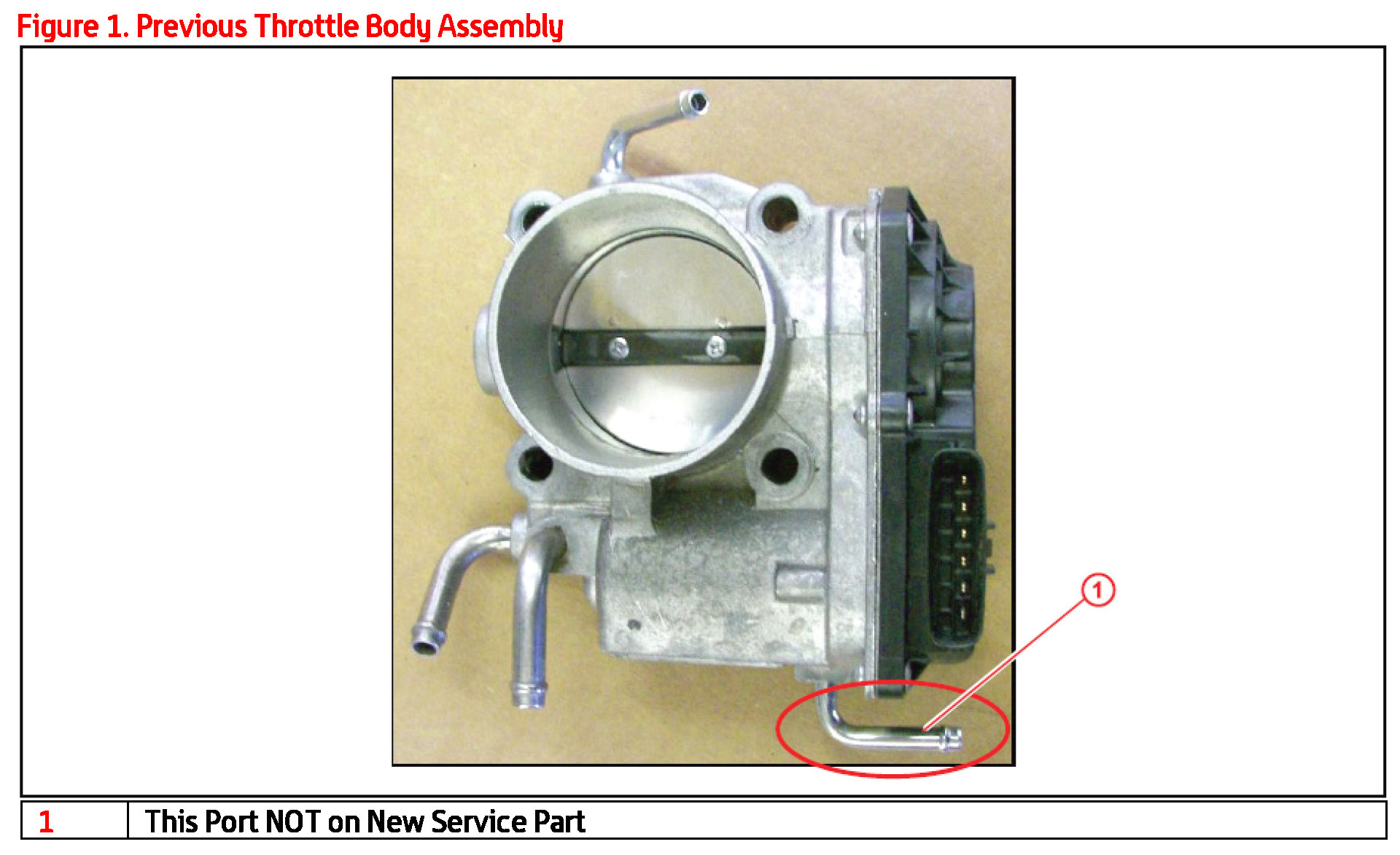

When replacing the throttle body assembly, remove and discard the throttle body hose that no longer has a port on the throttle body assembly. The port connected to the other end of the throttle body hose can be left open to the atmosphere - it does NOT need to be sealed.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
