Interior - Floor Mat Installation/Precautions

T-SB-0042-08

Rev1

April 21, 2008

Floor Mat Installation During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

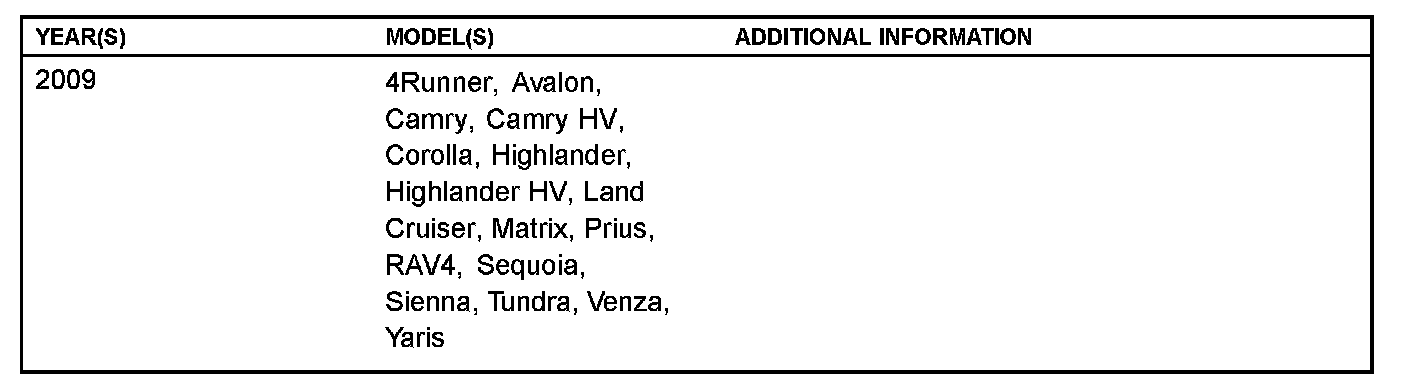

Applicability

TSB REVISION NOTICE

^ August 13, 2008 Rev1:

^ Applicability has been updated to include additional 2009 models: 4Runner, Avalon, Highlander, Highlander HV, Prius, RAV4, Venza, and Yaris.

Any previous printed versions of this service bulletin should be discarded.

Introduction

2009 model year Toyota vehicles are equipped with floor mat retaining clips to help ensure the floor mat stays in the correct position. Attach the driver's side floor mat to the vehicle carpet using the floor mat retaining clips during Pre-Delivery Service (PDS).

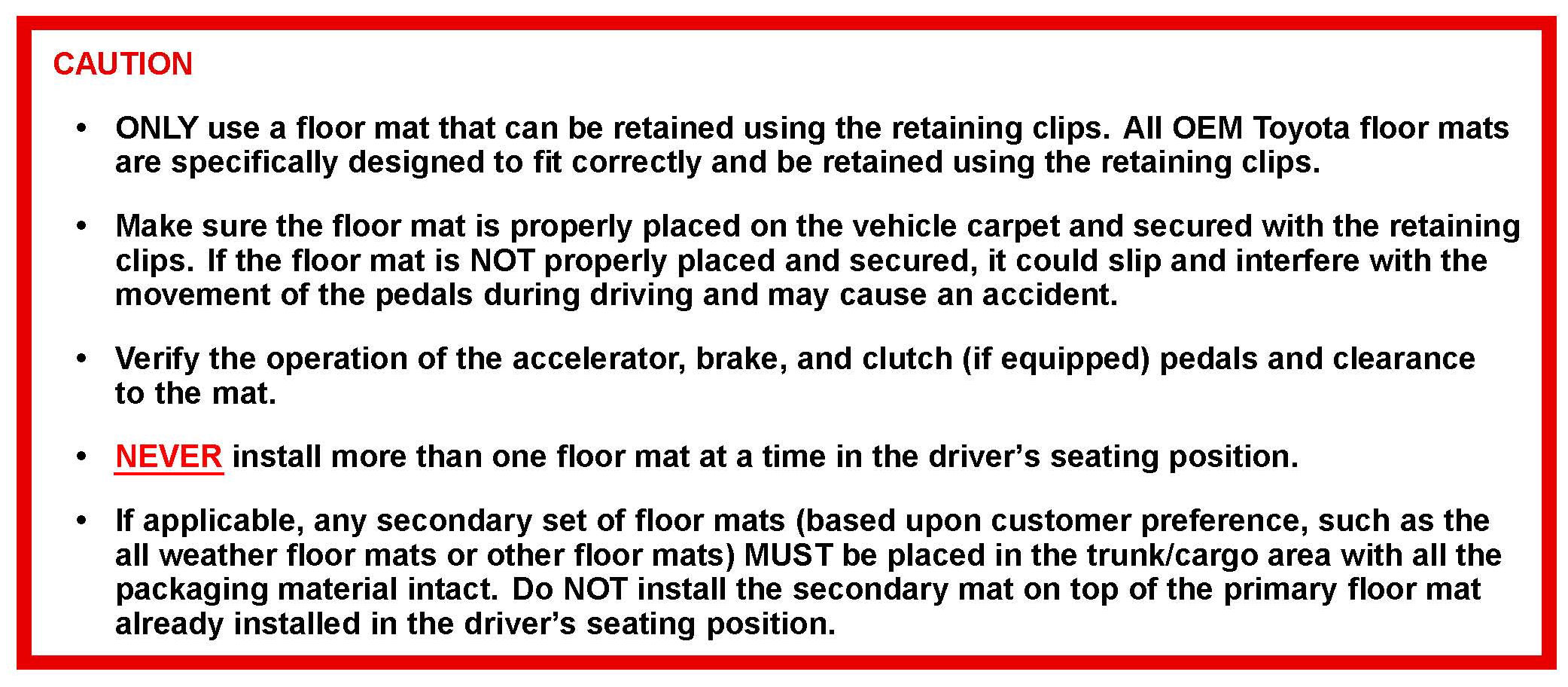

CAUTION

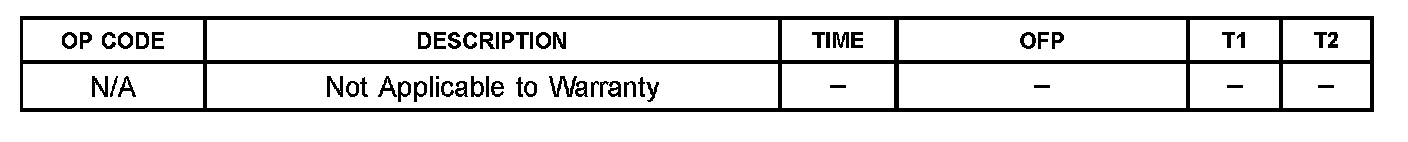

Warranty Information

Installation Procedure





Attach the floor mat to the vehicle carpet using the clips. Secure the mat by inserting the retaining clips through the grommet holes.
