Flex Plate: Testing and Inspection

U140F AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE CONVERTER CLUTCH AND DRIVE PLATE: INSPECTION

INSPECTION

1. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
(a) Inspect the one-way clutch.

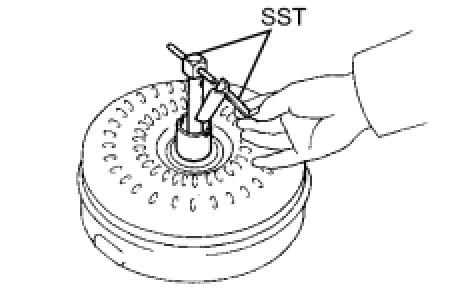

(1) Install SST to the inner race of the one-way clutch.
SST: 09350-32014
09351-32010
(2) Set SST so that it fits in the notch of the converter hub and in the outer race of the one-way clutch.
SST: 09350-32014
09351-32020

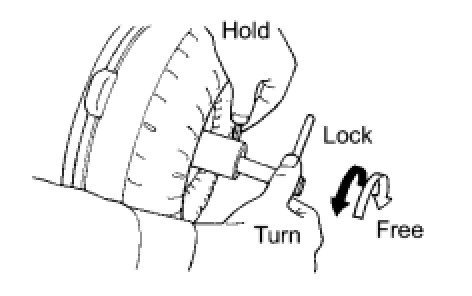

(3) With the torque converter standing on its side, check that the clutch locks when SST is turned counterclockwise and rotates freely and smoothly when turned clockwise. If the results are not as specified, clean the converter and recheck the one-way clutch. If the results are still not as specified, replace the converter.





(b) Determine the condition of the torque converter clutch.
(1) Check that the following conditions are met:

- During the stall test or when the shift lever is in N, metallic sounds are not emitted from the torque converter clutch.
- The one-way clutch turns clockwise and locks when turned counterclockwise.

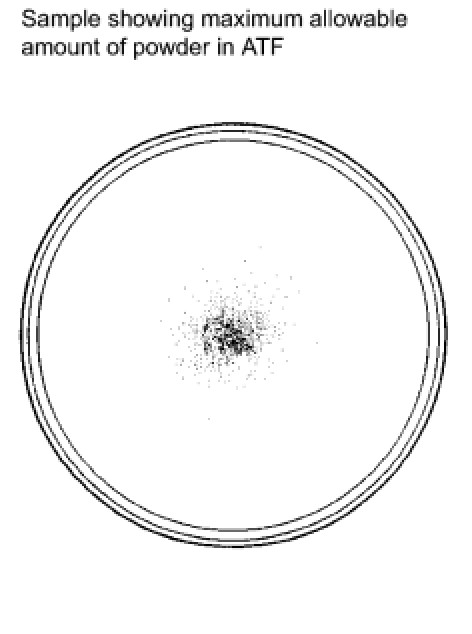

- The amount of powder in the ATF is not greater than the sample shown in the illustration.
If the results are not as specified, replace the torque converter clutch assembly.
HINT: The sample illustration shows approximately 0.25 liters (0.26 US qts, 0.22 lmp.qts) of the ATF taken from a removed torque converter clutch.

(c) Replace the ATF in the torque converter clutch.
(1) If the ATF is discolored and/or has foul odor, stir the ATF in the torque converter clutch thoroughly and drain it.





(d) Clean and check the oil cooler and oil pipe line.
(1) If the torque converter clutch is inspected or the ATF is replaced, clean the oil cooler and oil pipe line.

- Apply compressed air (196 kPa 2.0 kgf/cm2, 28 psi) into the inlet hose.
- If a large amount of powder is found in the ATF, add new ATF using a bucket pump and clean the oil cooler and oil pipe line again.
(2) If the ATF is cloudy, inspect the oil cooler (radiator).





(e) Avoid damaging the torque converter clutch and the oil pump gear.
(1) When any marks due to interference are found on the end of the bolt for the torque converter clutch and on the bottom of the bolt hole, replace the bolt and torque converter clutch.
(2) All of the bolts must be the same length.
(3) Make sure that no spring washers are missing.
2. INSPECT DRIVE PLATE AND RING GEAR SUB-ASSEMBLY





(a) Set up a dial indicator and measure the run out of the 6 portions around the torque converter fitting surface.
Maximum runout:
0.30 mm (0.0118 in.)
(b) Check the drive plate damage.
If the runout is greater than the maximum or the drive plate is damaged, replace the drive plate.
