Heated Glass Element: Description and Operation

WINDOW / GLASS: WINDOW DEFOGGER SYSTEM:

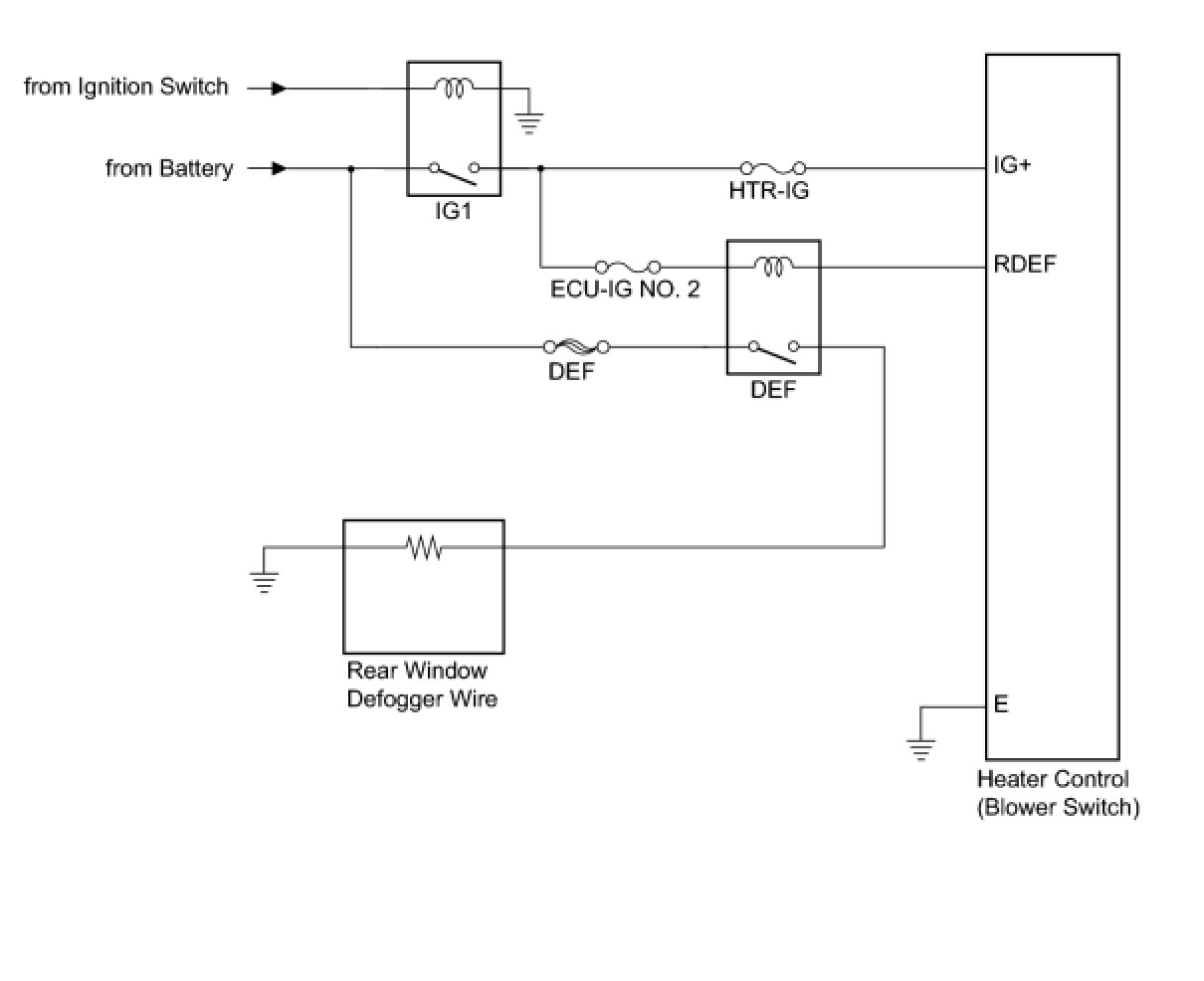

SYSTEM DIAGRAM





SYSTEM DESCRIPTION

1. GENERAL
The defogger system's thin heater wires are attached to the inside of the rear window and defog the window surface quickly. The indicator light illuminates while the system is operating.
HINT: The rear window defogger is linked with the mirror defogger (w/ mirror heater).

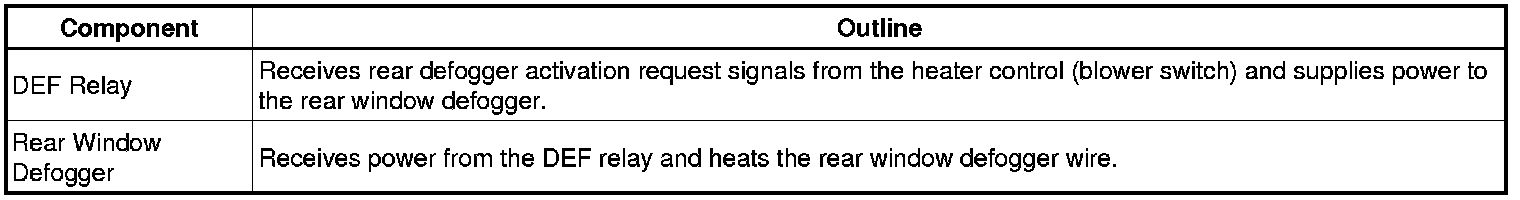

2. FUNCTION OF MAIN COMPONENT
