Windshield Washer Spray Nozzle: Testing and Inspection








WIPER / WASHER: WASHER NOZZLE: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FRONT WASHER NOZZLE SUB-ASSEMBLY
(a) With the engine running, check where the washer fluid hits the windshield.









OK:

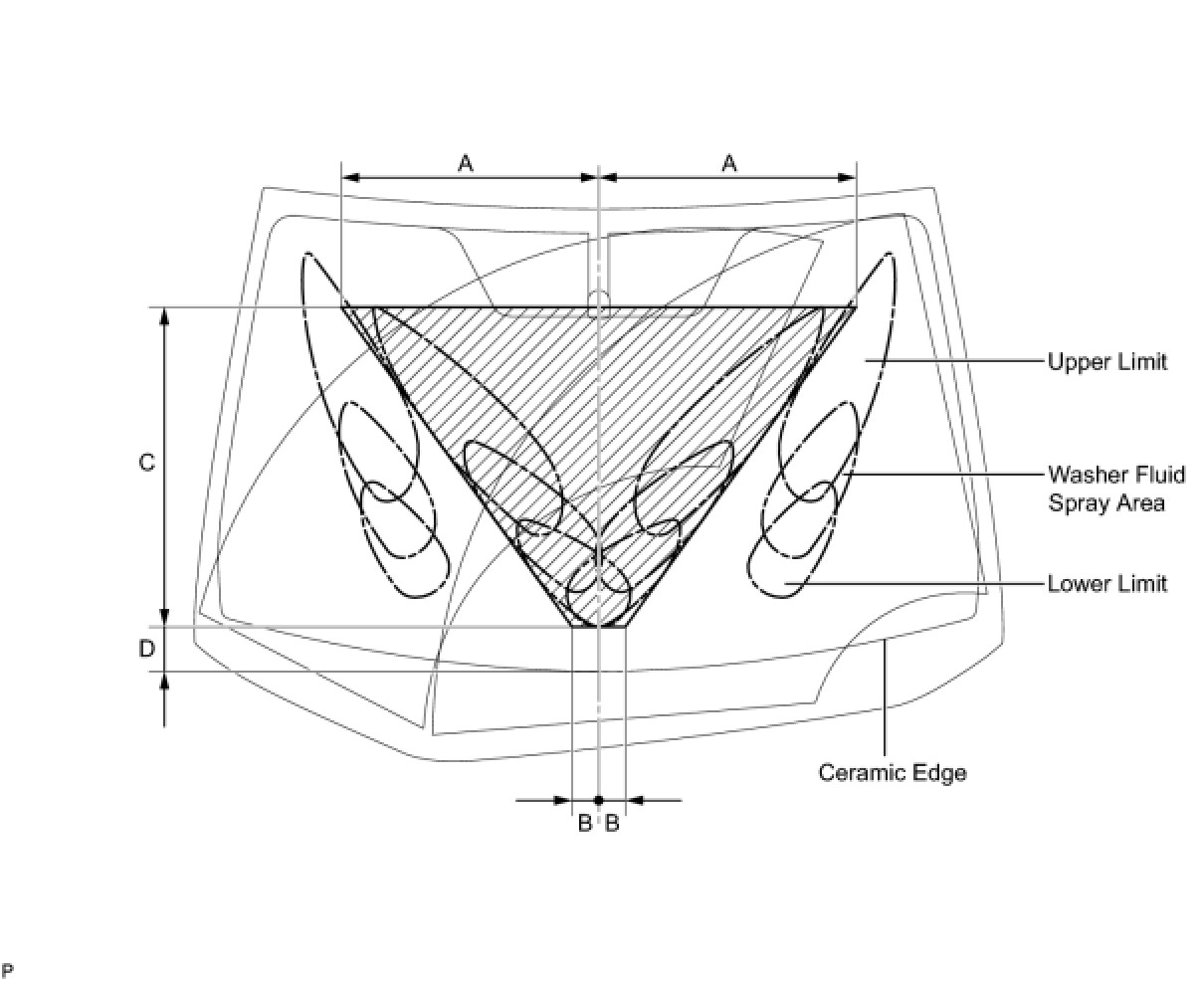

Washer fluid hits the windshield in the areas shown in the illustration.
HINT: If the result is not as specified, replace the washer nozzle.

2. INSPECT REAR WASHER NOZZLE SUB-ASSEMBLY





(a) With the engine running, check where the washer fluid hits the windshield.
OK:
Washer fluid hits the windshield in the area shown in the illustration.
