Fuel Gauge Sender: Testing and Inspection

2ZR-FE FUEL: FUEL SENDER GAUGE ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT FUEL SENDER GAUGE ASSEMBLY





(a) Remove the fuel sender gauge assembly.
(b) Check that the float moves smoothly between F and E.
(c) Measure the resistance between terminals 1 and 2 of the connector according to the value(s) in the table below.

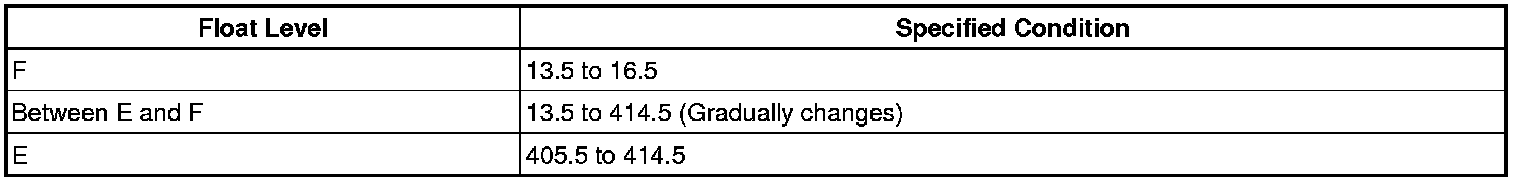

Standard Resistance:





If the value is not as specified, replace the fuel sender gauge assembly.
