Locations
>>
Ground Locations
>>

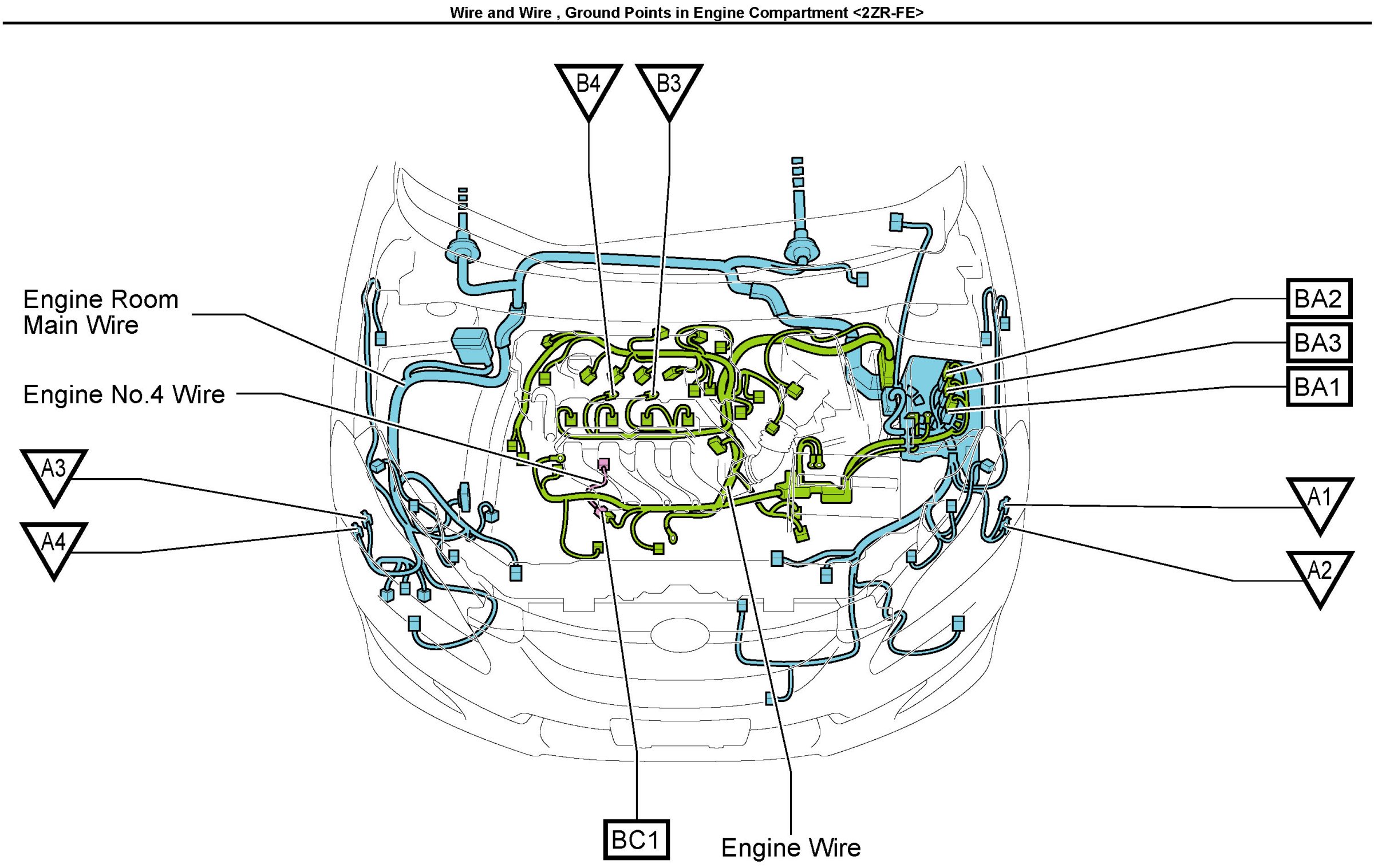

Wire and Wire, Ground Points In Engine Compartment
Wire and Wire, Ground Points In Engine Compartment

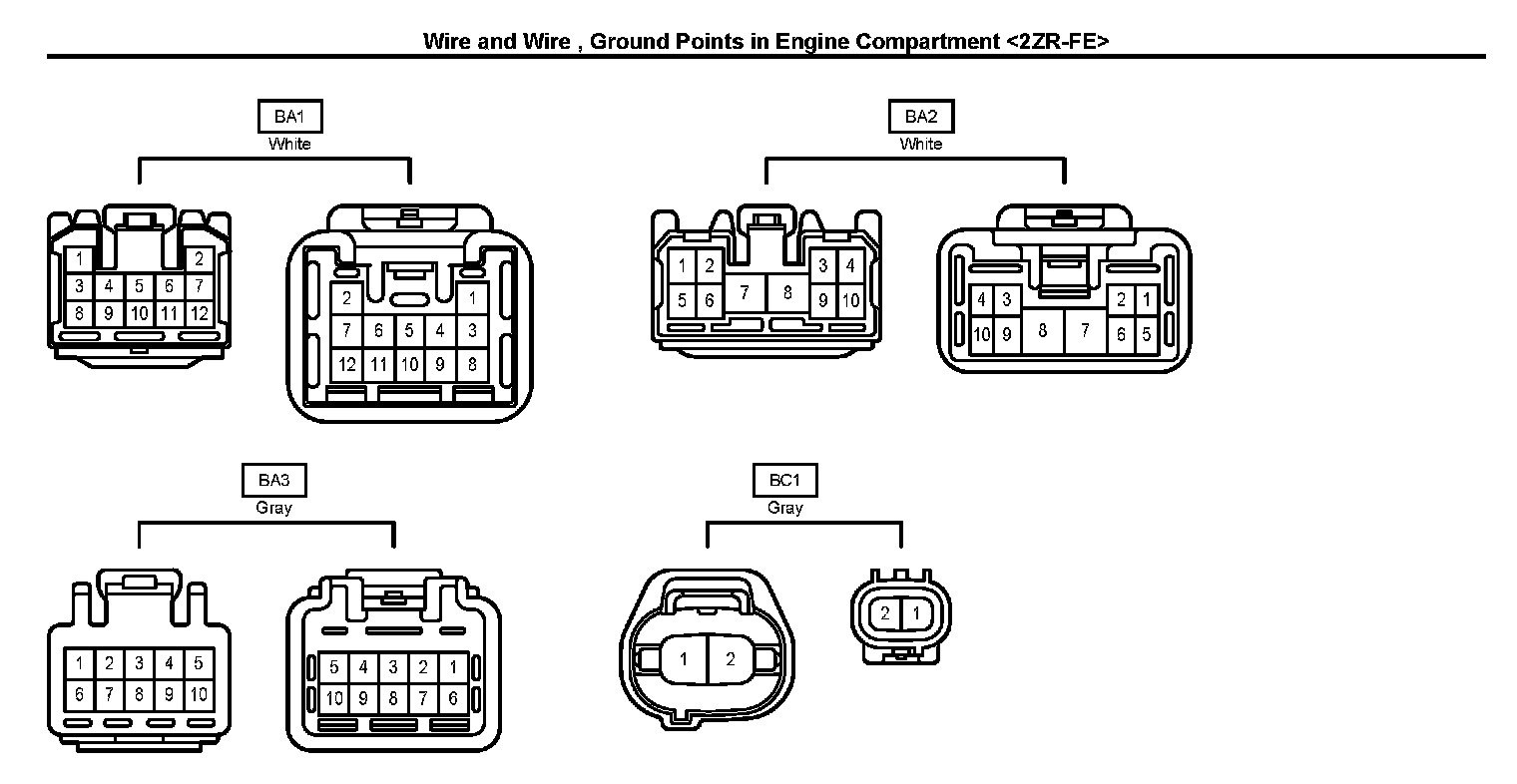

BA1-BC1, A1-B4:
BA1-BC1:
