Computers and Control Systems: Description and Operation








2ZR-FE ENGINE CONTROL: SFI SYSTEM:

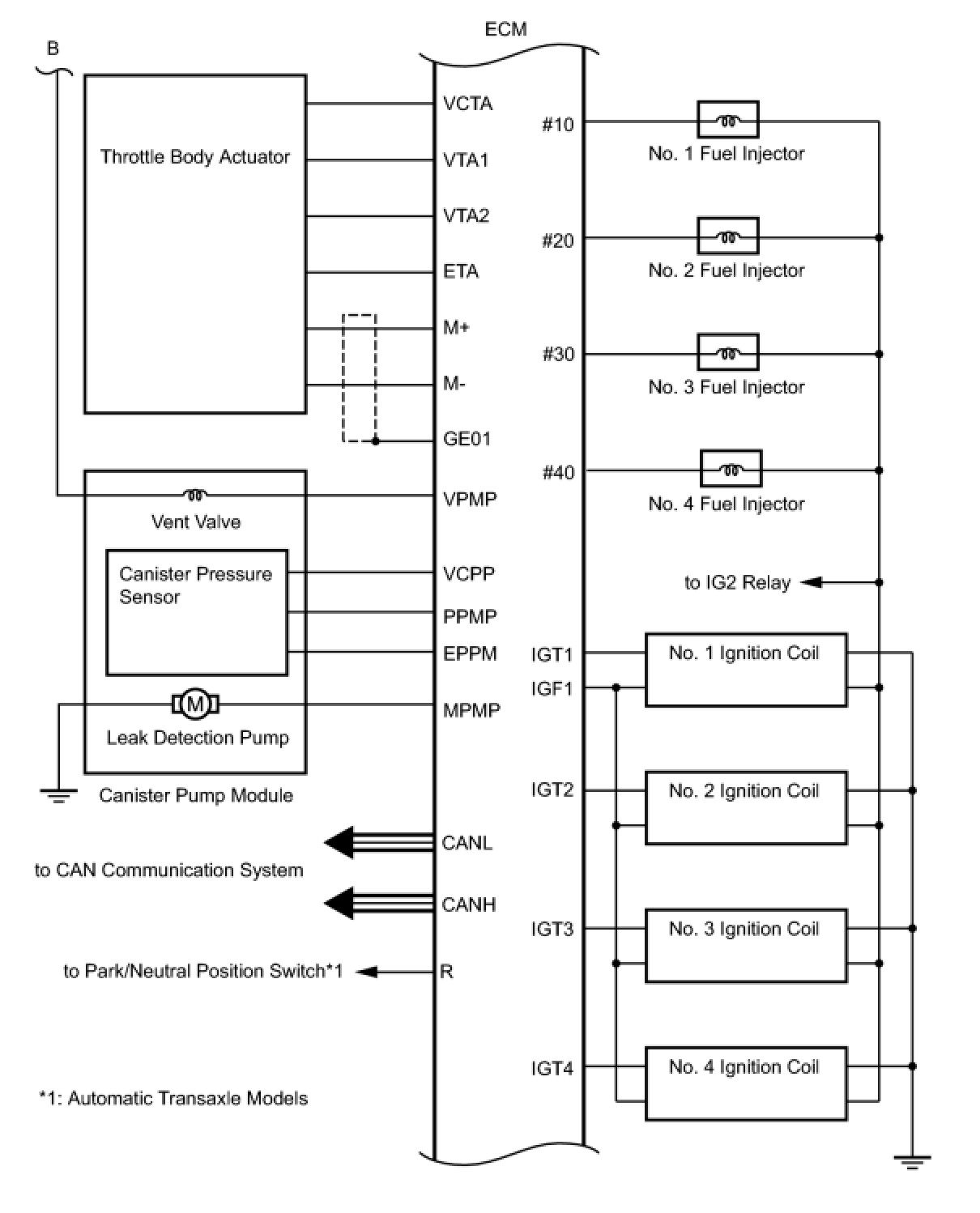

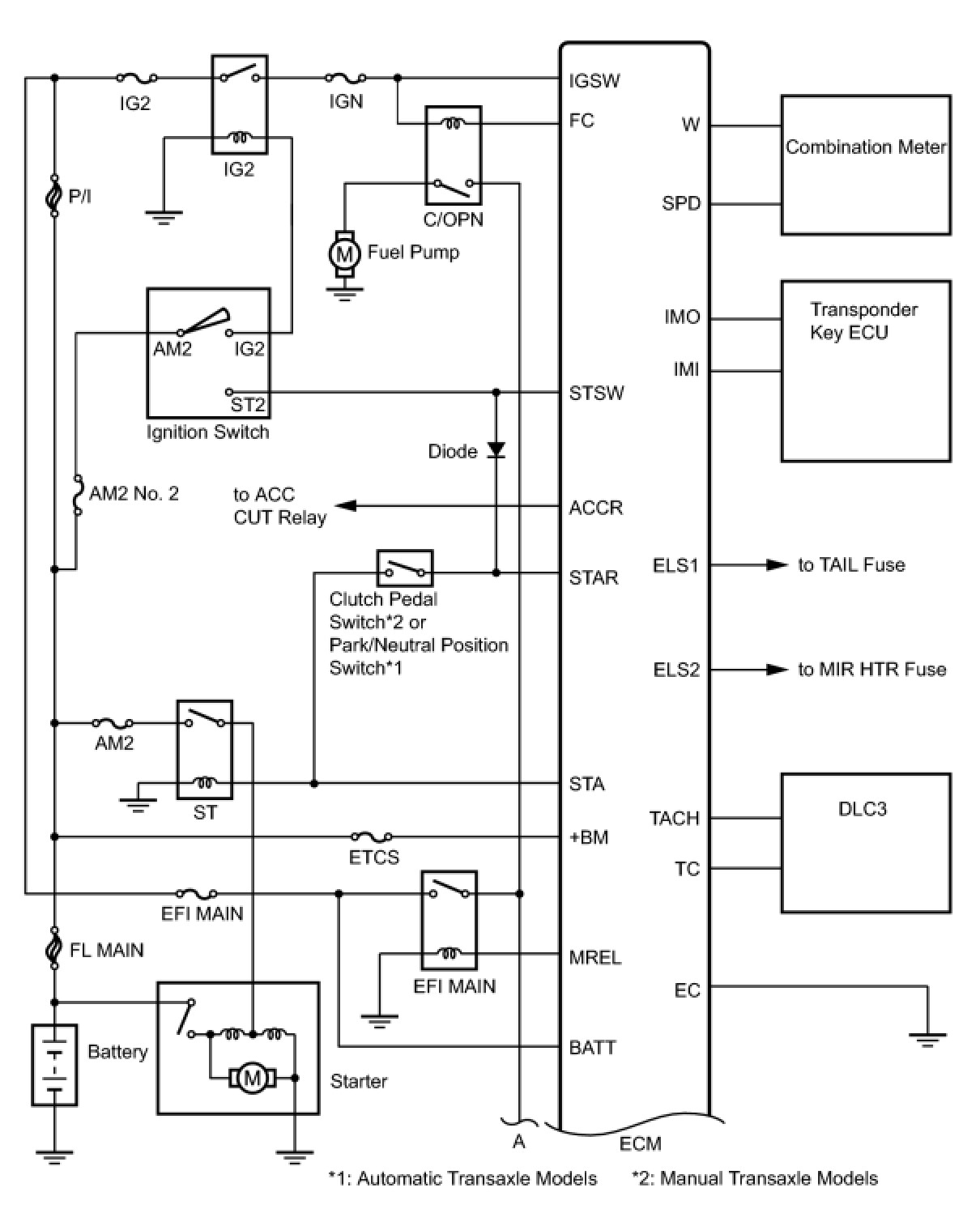

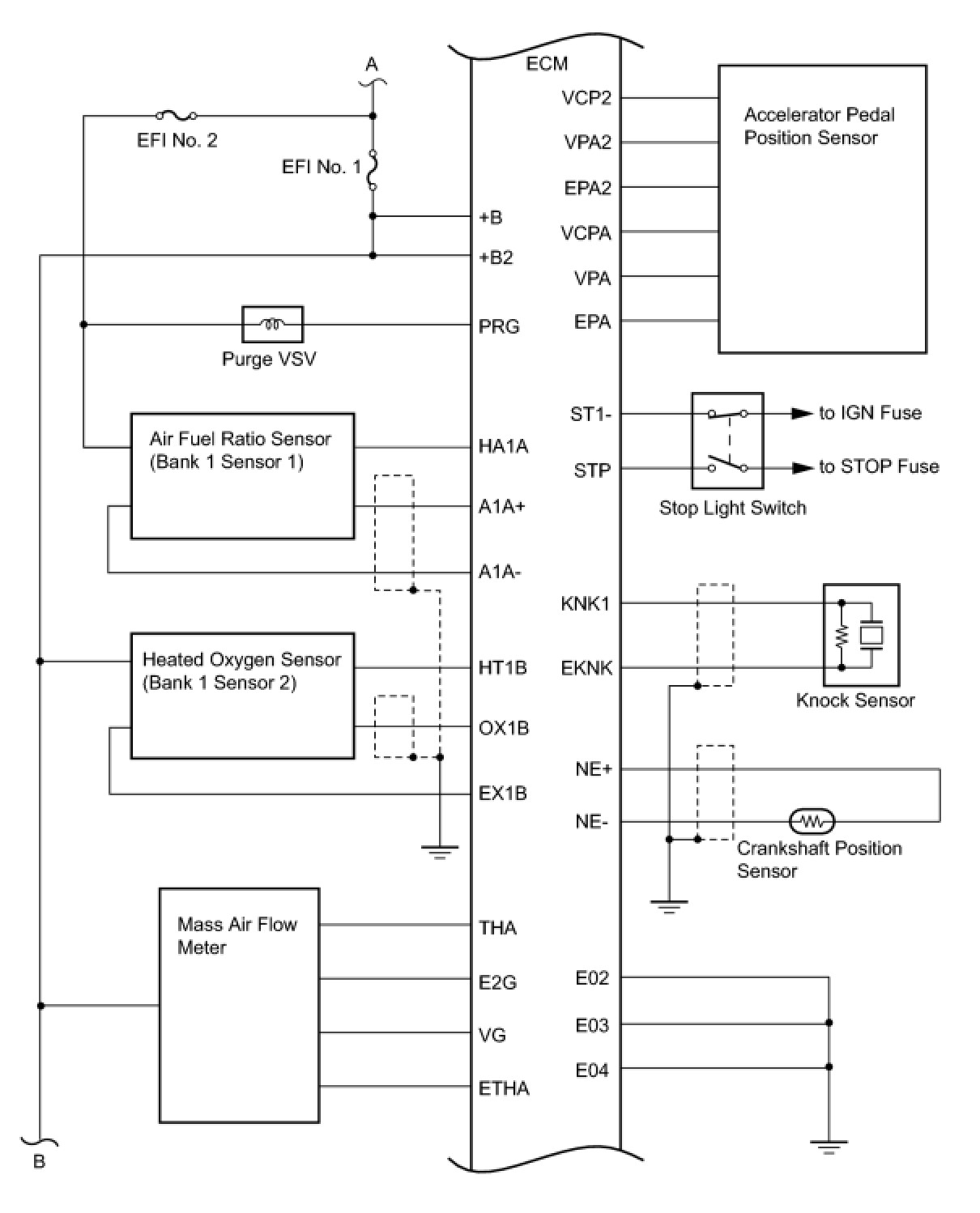

SYSTEM DIAGRAM
