Canada - Brakes - ABS Lamp ON/DTC's C0210/C0215

Bulletin
3177

Issue Date
July 10, 2009

Market
Canada

Title:
ABS M.I.L. "ON" DTC C0210 OR C0215

Component
BRAKES

Models
'09 Corolla, Matrix

INTRODUCTION:
Some 2009 model year Corolla and Matrix vehicles may exhibit an ABS M.I.L. "ON" condition with either one or both of the following Diagnostic Trouble Codes (DTCs):
- C0210 - Rear Speed Sensor RH Circuit.
- C0215 - Rear Speed Sensor LH Circuit.

A newly designed speed sensor connector is available for this condition. Use the following repair procedure to diagnose and repair customer complaint vehicles.







APPLICABILITY:

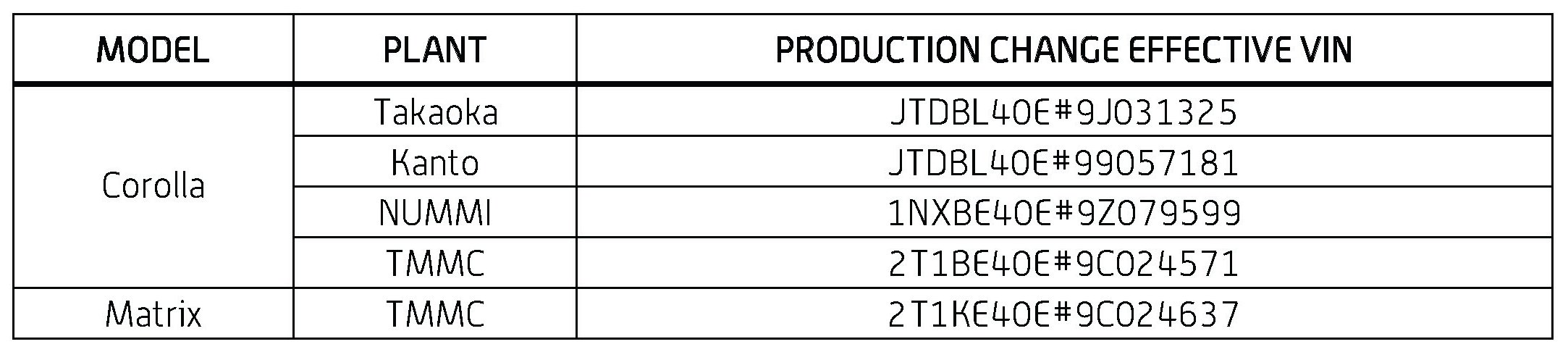

PRODUCTION CHANGE INFORMATION:







This TSB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

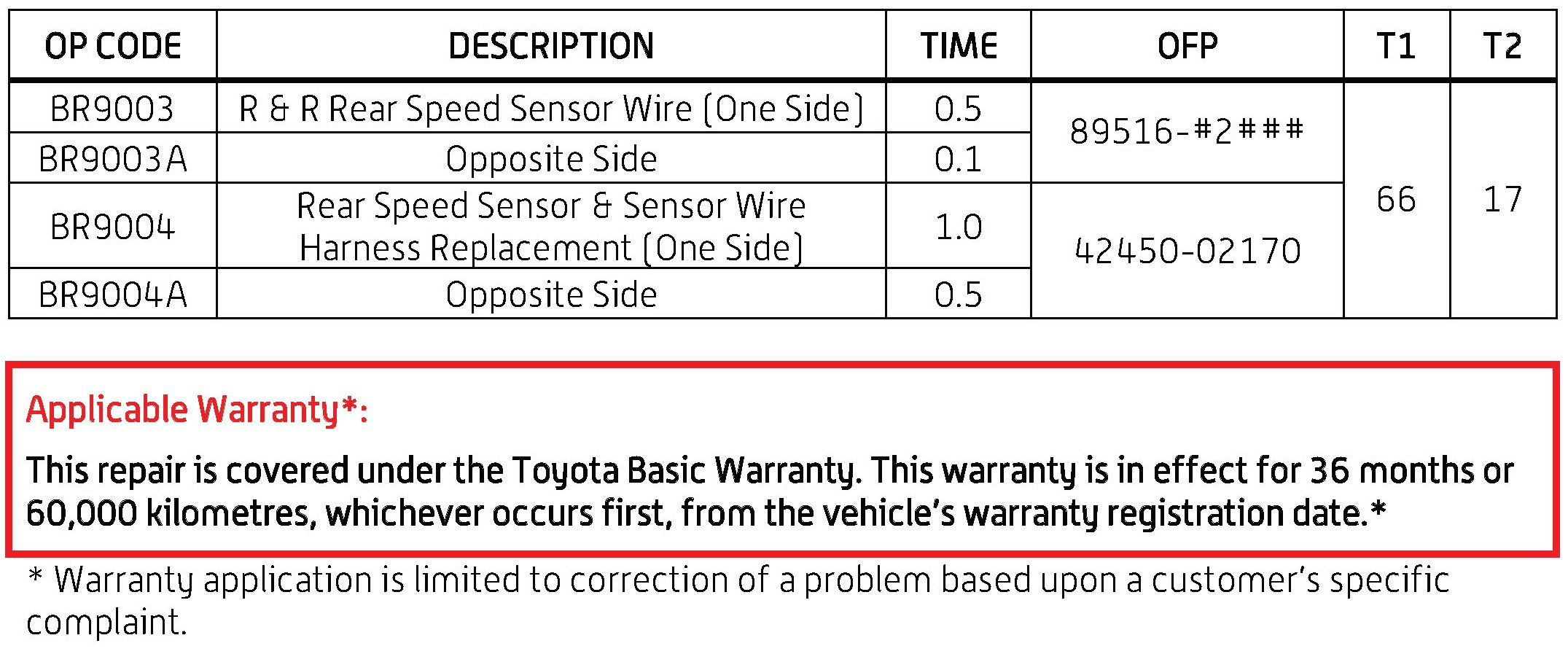

WARRANTY INFORMATION:

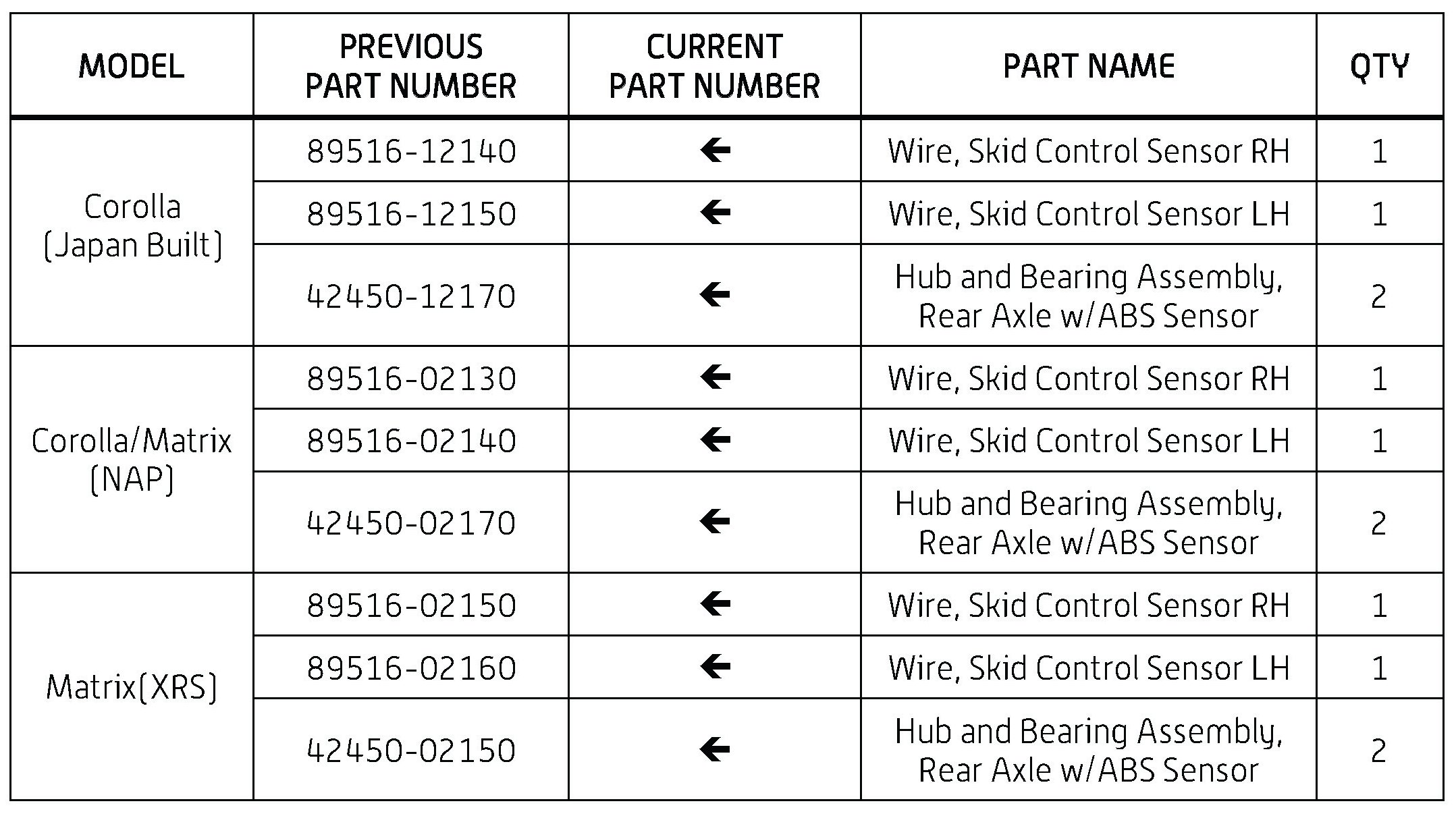

PARTS INFORMATION:

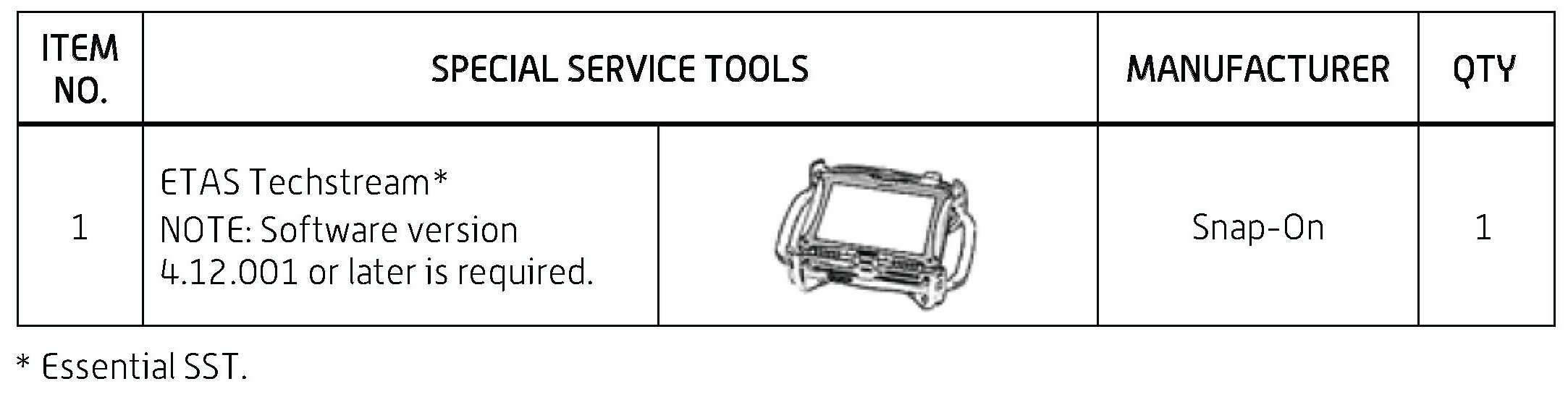

REQUIRED TOOLS & EQUIPMENT:

NOTE
Additional Techstream units may be ordered by completing the order form on ETAS and faxing it to (416) 431-8342.

REPAIR PROCEDURE:
1. Confirm that the ABS warning light is illuminated.
2. Use ETAS Techstream to perform a Health Check.
3. If either C0210 or C0215 DTC codes are stored under the ABS System, inspect the rear speed sensor connectors and sensor pins for rust/corrosion.
4. If rust/corrosion is found in the left rear and/or right rear speed sensor connector, disconnect the connector and replace the speed sensor wire harness.
If rust/corrosion is also found on the terminals of the rear speed sensors, replace the speed sensors.
Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Corolla
- Year: 2009
- Service Category: Drivetrain
- Section: Axle/Differential
- Keyword: Axle and Differential: Rear Axle Hub: Removal
- Keyword: Axle and Differential: Rear Axle Hub: Installation

- Division: Toyota
- Model: Matrix
- Year: 2009
- Service Category: Drivetrain
- Section: Axle/Differential
- Keyword: Axle and Differential:Rear Axle Hub (for Double Wishbone Type Suspension): Removal
- Keyword: Axle and Differential: Rear Axle Hub (for Double Wishbone Type Suspension): Installation

5. After the repair is complete, clear any stored DTCs and test drive the vehicle to confirm the repair.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
