Power Steering System

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the applicable Diagnostic Trouble Code Test below.

Power Steering System

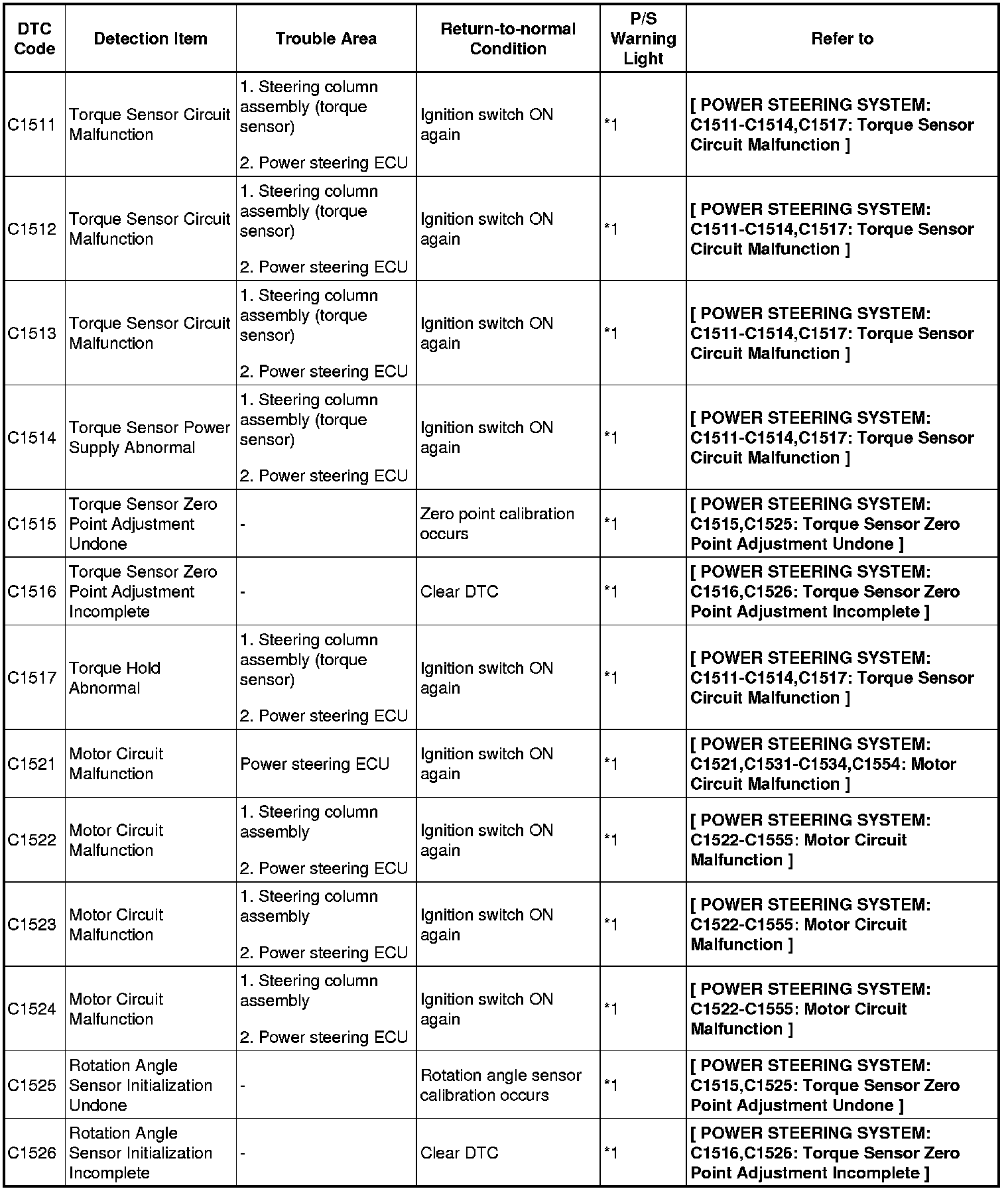

C1511 - C1526:

C1528 - C1581:

C1582 / U0100 - U0129:

- *1: Warning light comes on
- *2: Warning light turns off (normal reset)
- *3: When an error occurs during steering assist, the warning light does not illuminate. For errors that occur before assist (at the time of the decision to start assist), the warning light illuminates.
