DTC 93

MF1A TRANSFER / 4WD / AWD: ACTIVE TORQUE CONTROL 4WD SYSTEM: C1245/93: Malfunction in Deceleration Sensor

DTC C1245/93 - Malfunction in Deceleration Sensor

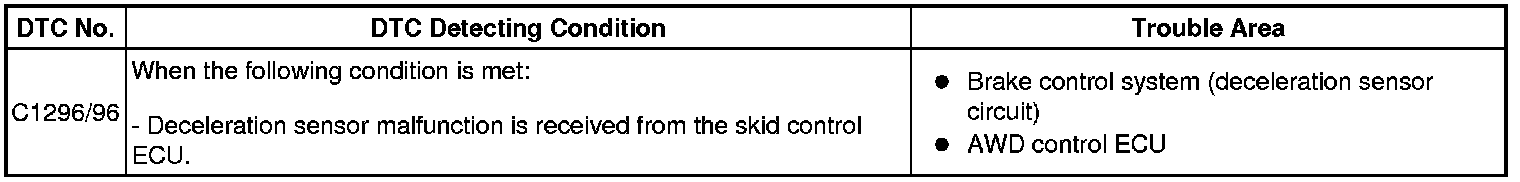

DESCRIPTION

If a malfunction in the deceleration sensor circuit occurs, the AWD control ECU will output this DTC.





INSPECTION PROCEDURE
HINT: Check the condition of each related circuit connector before troubleshooting Electronic Circuit Inspection Procedure.

PROCEDURE

1. CHECK FOR DTC (BRAKE CONTROL SYSTEM)
(a) Check if the speed sensor DTC (brake control system DTC) is output Reading and Clearing Diagnostic Trouble Codes.

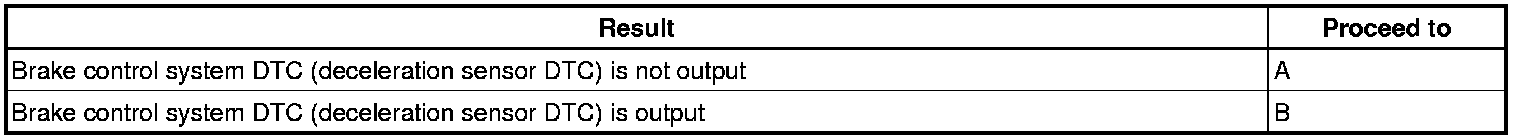

Result:





B -- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS (BRAKE CONTROL SYSTEM)
A -- REPLACE AWD CONTROL ECU
