Sunroof / Moonroof: Description and Operation

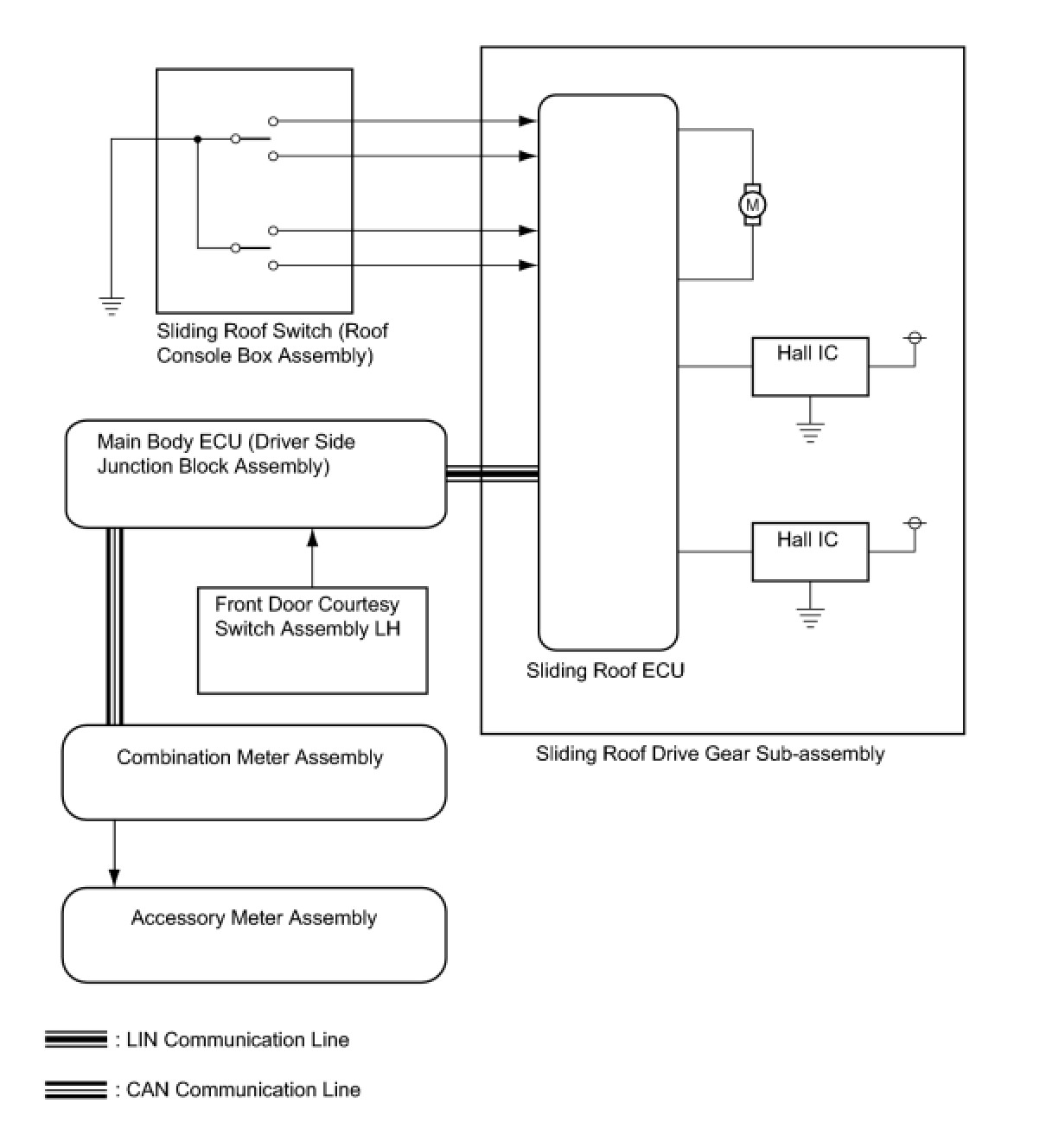

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM





Communication Table





SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. GENERAL
This system has the following functions: manual slide open and close; auto slide open; manual tilt up and down; auto tilt up; jam protection; key off operation.

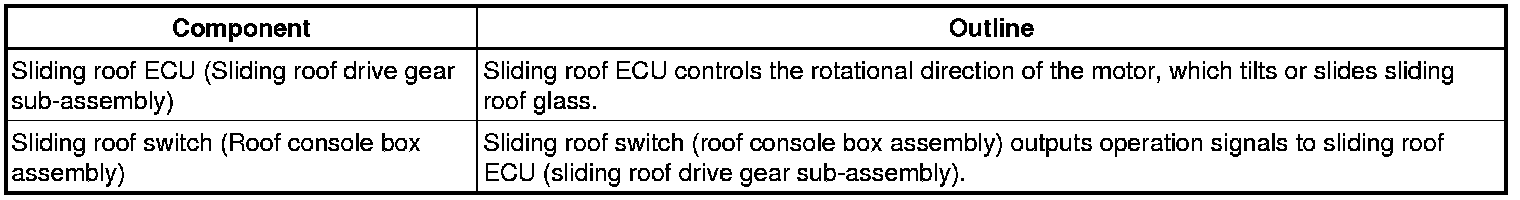

2. FUNCTION OF MAIN COMPONENT





3. SYSTEM OPERATION
The sliding roof has the following features.





*: w/ Rear View Monitor
